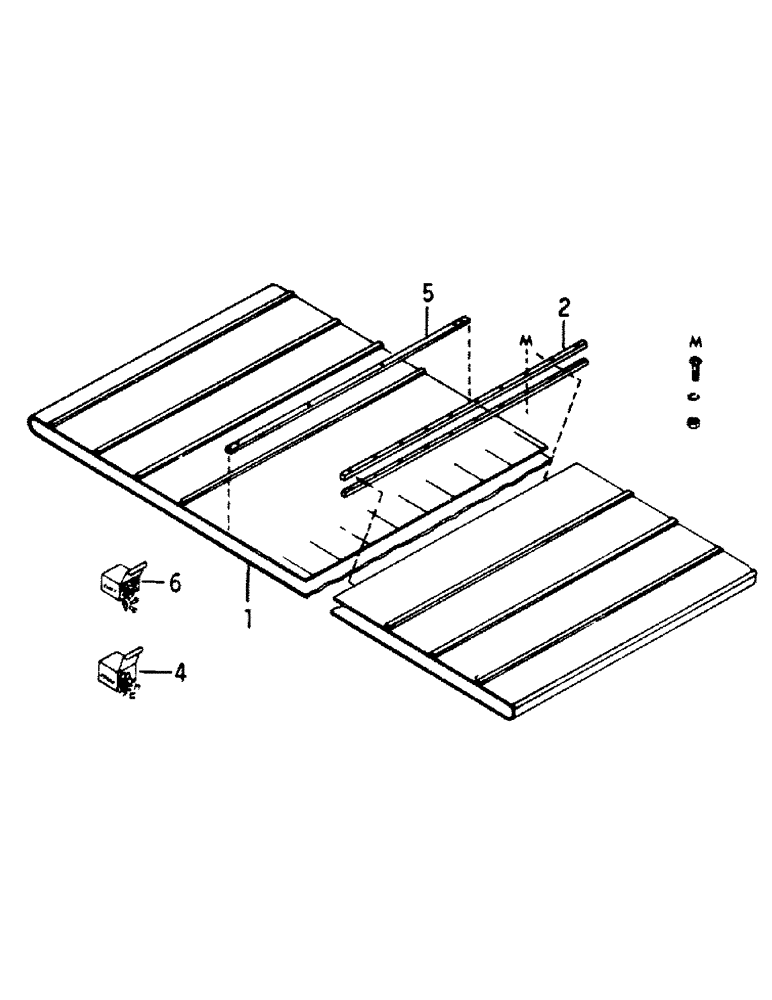

Запчасти Case IH 75 (A-12) - CONVEYOR, CANVAS APRON

1

825801C92

SKIRT COVER

APRON ASSY, canvas, 15 ft. machines

1шт.

1

825802C92

APRON

ASSY, canvas, 18 ft. end delivery machines

1шт.

1

826053C92

APRON

ASSY, canvas LH, 18 ft. off center delivery machines

1шт.

1

826054C92

APRON

ASSY, canvas RH, 18 ft. off center delivery machines

1шт.

1

825803C92

SKIRT COVER

APRON ASSY, canvas LH, 21 ft. machines

1шт.

1

825801C92

SKIRT COVER

APRON ASSY, canvas RH, 21 ft. machines

1шт.

1

823098C92

APRON

ASSY, canvas LH, 25 ft. machines

1шт.

1

825802C92

APRON

ASSY, canvas RH, 25 ft. machines

1шт.

2

825971C11

SLAT

ASSY, metal clad connector, Includes attaching hardware

2шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

10-24 x 1-1/4 zn slt-rd-hd mach

9шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

120361

NUT,Hex Mach Screw, #10 - 24

9шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

451312R1

STAPLE

S, half pound package

1шт.

5

825970C1

SLAT

wood

1шт.

6

Q3569

RIVET,Csk, 3/16" x 9/16"

& BURR, half pound package

1шт.
