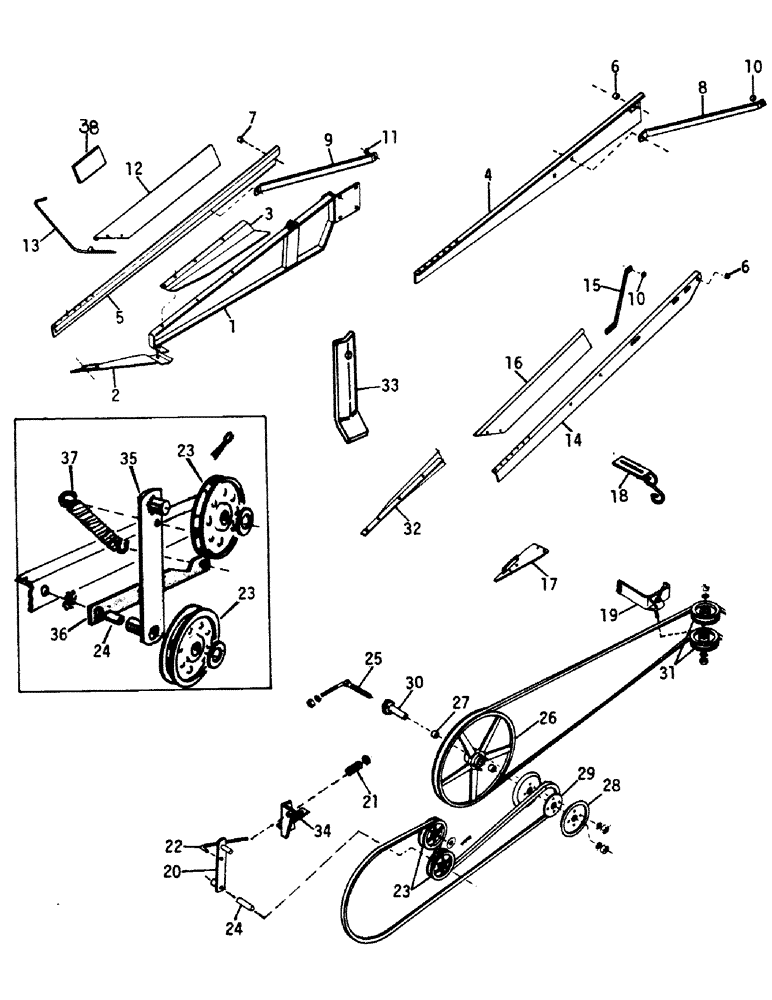

Запчасти Case IH 75 (A-10) - REEL DRIVE, REEL SUPPORT ARMS AND END FRAME

1

825809C1

FRAME ASSY, RH end, Serial no. 1360 and below

1шт.

1

827266C3

FRAME

ASSY, RH end, Serial no. 1361 and above

1шт.

2

825874C1

SHOE

ASSY, divider RH

1шт.

3

825898C1

DEFLECTOR

RH divider

1шт.

4

825854C1

ARM ASSY, reel support RH, 15 ft. and 18 ft. machines, Serial no. 500 and below

1шт.

4

824088C1

ARM

ASSY, reel support RH, Replaces 826036C1, 15 ft. and 18 ft. machines, Serial no. 501 and above

1шт.

5

825855C1

ARM

ASSY, reel support RH, 21 ft. machines, Serial no. 500 & below

1шт.

5

826037C1

ARM

ASSY, reel support RH, 21 ft. and 25 ft. machines, Serial no. 501 and above

1шт.

6

472984R1

SPACER

support arm pivot (7/8 x .66), 2 for 15 ft. and 18 ft. machines, 1 for 21 ft. and 25 ft. machines, LH side

1шт.

7

825951C1

SPACER

support arm pivot (7/8 x 2.22), 1 for 21 ft. and 25 ft. machines, RH side

1шт.

8

825876C1

BRACE

reel support RH, 15 ft. and 18 ft. machines

1шт.

9

825877C1

BRACE

reel support RH, 21 ft. and 25 ft. machines

1шт.

10

950019R1

SPACER

brace pivot (3/4 x .28), 2 for 15 ft. and 18 ft. machines, 1 for 21 ft. and 25 ft. machines, RH side

1шт.

11

731261R1

SPACER

brace pivot (3/4 x .41), 1 for 21 ft. and 25 ft. machines, RH side

1шт.

12

825896C1

DIVIDER

RH

1шт.

13

825899C1

ROD

ASSY, RH divider

1шт.

14

825853C1

ARM ASSY, reel support LH, Serial no. 500 and below

1шт.

14

824087C1

ARM

ASSY, reel support LH, Replaces 826035C1 for Serial no. 6899 & below by also ordering clevis, 825881C1, spacer, 825950C1 and bolt, 271727, serial no. 501 and above

1шт.

15

825875C1

BRACE

reel support LH

1шт.

16

825895C1

DIVIDER

LH

1шт.

17

825873C1

SHOE

ASSY, divider LH

1шт.

18

825870C1

GUIDE, belt

1шт.

19

825913C1

BRACKET ASSY, idler

1шт.

20

823064C1

ARM

ASSY, idler tightener, Serial no. 3676 and above

1шт.

445608

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1/2 x 5-1/2 type 5

1шт.

178374R1

WASHER

17/32 x 1-1/4 x .054 znd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

731261R1

SPACER

lower pulley mounting, Serial no. 10096 and above

1шт.

21

825994C1

SPRING

tightener rod, Serial no. 3676 and above

1шт.

22

823063C1

ROD

tightener adjusting, Serial no. 3676 and above

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

619856R1

WASHER

13/32 x 1 x .056 znd

1шт.

23

825923C1

PULLEY

idler

2шт.

24

825947C1

SPACER

bushing (3/4 x 3.31)

1шт.

25

825900C2

ROD

ASSY, adjusting

1шт.

26

825910C11

PULLEY

W/TWO BUSHINGS, 825883C1, primary reel driven

1шт.

27

825883C1

BUSHING

pulley

2шт.

28

825911C1

PULLEY

secondary reel drive half

2шт.

29

1276780C1

SHIM

pulley spacer, Replaces 825912C1

6шт.

30

825952C2

SPACER

ASSY, reel driven pulley

1шт.

31

161430C91

PULLEY

idler

2шт.

32

825897C1

DEFLECTOR

LH divider, for 18 ft., 21 ft. and 25 ft. machines

1шт.

33

823420C1

BRACE, reel safety prop

2шт.

34

823062C2

SUPPORT

ASSY, tightener adjusting rod

1шт.

35

825922C1

ARM

ASSY, belt take-up, Serial no. 3675 and below

1шт.

36

825924C1

ARM

spring tension, Serial no. 3675 and below

1шт.

37

823057C1

SPRING

Serial no. 3675 and below

1шт.

38

174732C1

REFLECTOR

amber, on RH divider

1шт.
