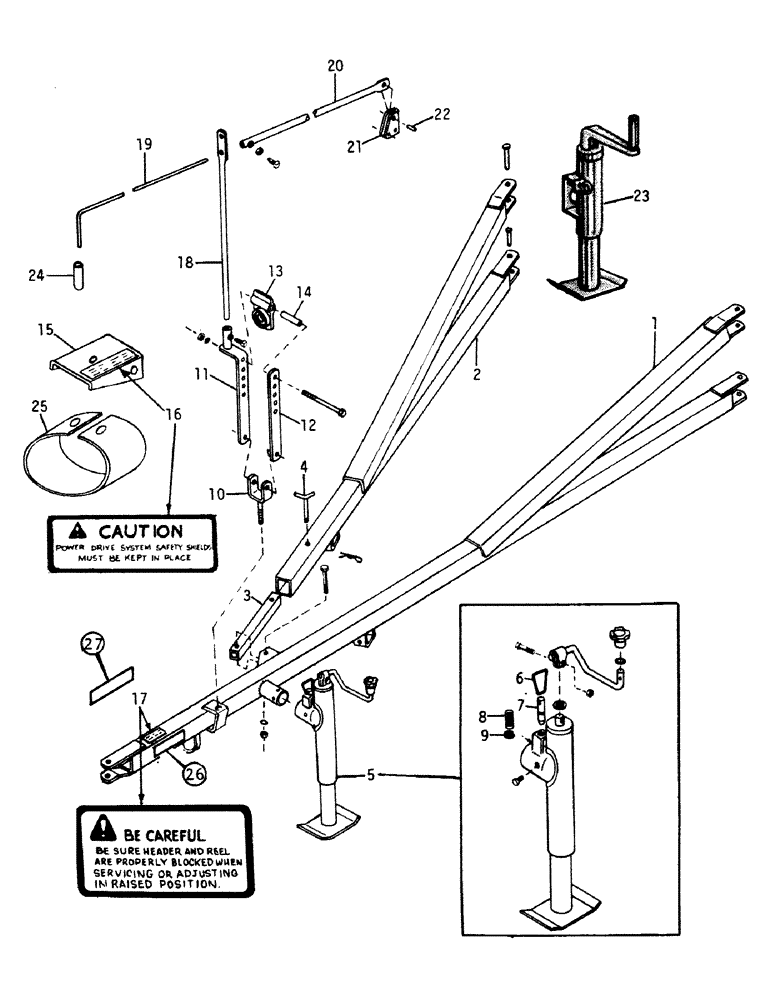

Запчасти Case IH 75 (A-08) - MAIN HITCH, JACK AND HYDRAULIC LEVER CONTROLS

1

825810C2

MEMBER ASSY, hitch main

1шт.

1

824196C1

MEMBER ASSY, hitch main, 25 ft. machines only

1шт.

2

825811C1

MEMBER ASSY, hitch RH

1шт.

3

825812C1

CHANNEL

ASSY, hitch adjusting

1шт.

4

825869C1

PIN

hitch tee

1шт.

591107R1

COTTER PIN

quick attachable cot.

1шт.

5

827348C91

JACK

ASSEMBLY, hitch, Serial no. 1851 and above

1шт.

6

827349C1

SPRING

HANDLE, plunger

1шт.

7

827350C1

PLUNGER

1шт.

8

827351C1

SPRING

1шт.

9

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

10

825886C1

YOKE

ASSY, PTO swivel (3.75 wide)

1шт.

10

823250C1

YOKE

ASSY, PTO swivel (4.06 wide)

1шт.

11

825888C1

SUPPORT ASSY, PTO RH

1шт.

12

825887C1

BAR, PTO support LH

1шт.

13

825889C1

BEARING HOUSING

BEARING ASSY, PTO hanger

1шт.

14

825946C1

SPACER

(3/4 x 3.81)

2шт.

14

823132C1

SPACER

(3/4 x 4.13)

2шт.

15

823127C91

SHIELD

W/PRODUCT GRAPHIC, PTO

1шт.

16

95630C1

PRODUCT GRAPHIC, caution, power drive

1шт.

17

823072C2

PRODUCT GRAPHIC, warning (On hitch)

1шт.

18

825871C1

PIPE, control rod support

1шт.

19

825866C1

ROD, control handle

2шт.

20

825864C1

TUBE ASSY, control rod

2шт.

21

825865C1

LEVER

control valve

2шт.

22

19555R1

PIN,5/16" x 1", Coiled

2шт.

23

825999C91

SPACER

JACK ASSY, Serial no. 1850 and below, Order jack assy, 827348C91

1шт.

24

823142C1

GRIP, control handle rod

2шт.

25

823128C1

STRIP, front shield, rubber

1шт.

827396C1

RETAINER

WASHER, retainer, square, Replaces washer 22186R1

1шт.

26

175311C1

REFLECTOR

red

1шт.

27

174732C1

REFLECTOR

amber

1шт.
