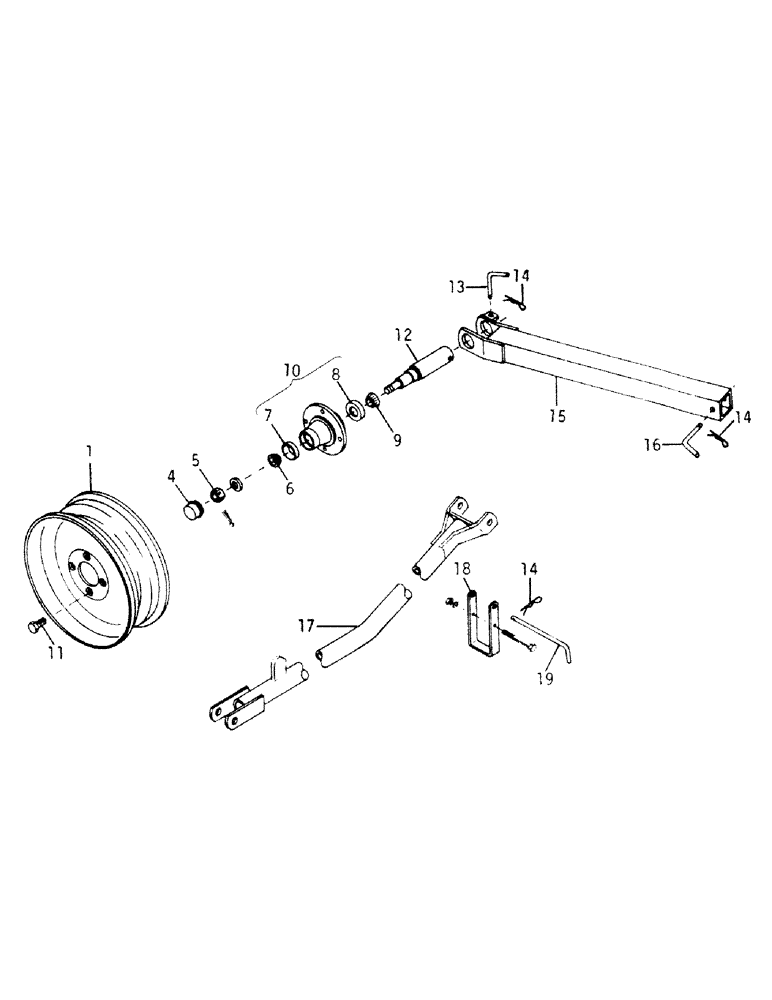

Запчасти Case IH 75 (A-04) - TRANSPORT HITCH AND WHEEL

1

455169R92

WHEEL

ASSY, 15 x 4-1/2 KB, 15 ft., 18 ft. and 21 ft. machines

1шт.

387897R91

VALVE STEM

VALVE, TR 415

1шт.

1

823113C1

WHEEL

ASSY, 14 x 6 KB, 25 ft. machines, 4 bolt wheel

1шт.

1

824089C1

RIM

WHEEL ASSY, 14 x 6 KB, 25 ft. machines, 5 bolt wheel

1шт.

387841R91

VALVE

TR 413

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

651194R1

CAP

hub, For 4 bolt wheels

1шт.

4

824257C1

CAP

hub, For 5 bolt wheels

1шт.

5

427640

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 znd slt hex

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel outer cone

1шт.

7

651814R1

BEARING CUP

BEARING, wheel outer cup

1шт.

8

651817R1

BEARING CUP

BEARING, wheel inner cup

1шт.

9

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

ASSY, wheel inner cone

1шт.

10

825885C91

HUB

W/BEARING CUPS ASSY, wheel, For use with 4 bolt wheels

1шт.

10

824255C91

HUB

W/BEARING CUPS ASSY, wheel, For use with 5 bolt wheels

1шт.

11

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

1шт.

12

825884C2

SPINDLE

axle RH/trans, 10 in. long

1шт.

13

825980C1

PIN

axle mounting "L"

1шт.

14

591107R1

COTTER PIN

quick attachable cot

3шт.

15

825978C1

TUBE

ASSY, transport axle

1шт.

16

825979C1

PIN

tube mounting "L"

1шт.

17

825981C3

PIPE ASSY, transport hitch, 15 ft., 18 ft. and 21 ft. machines

1шт.

17

823425C1

PIPE ASSY, transport hitch, 25 ft. machines

1шт.

18

825983C1

SUPPORT, pipe

1шт.

19

825982C1

PIN, hitch "L"

1шт.
