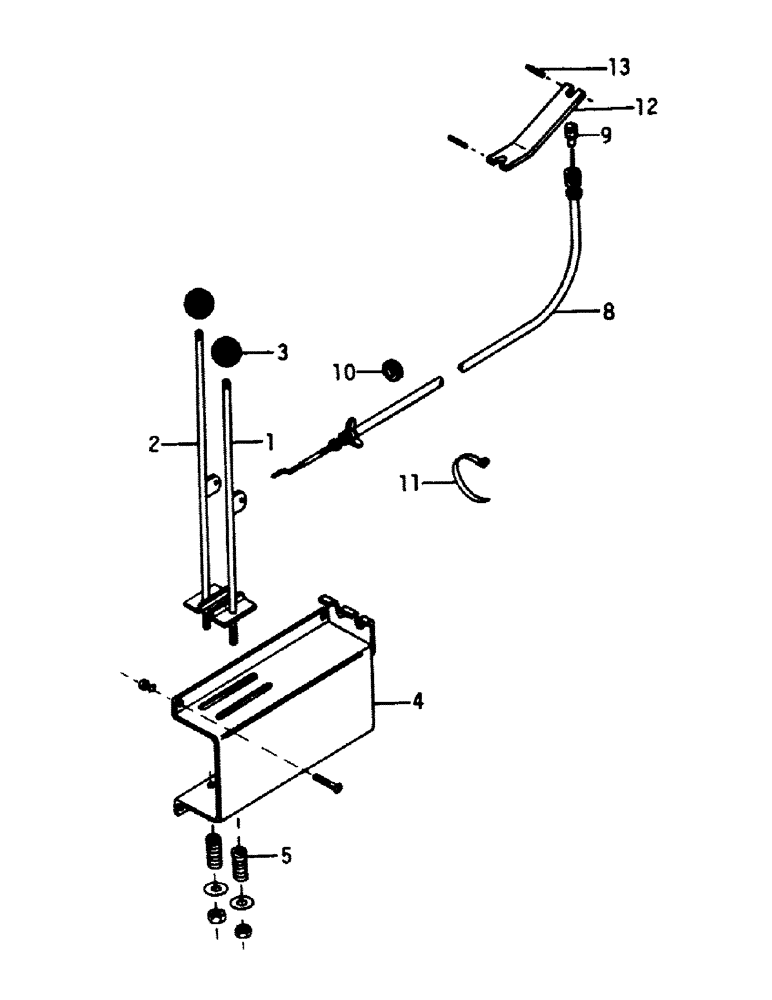

Запчасти Case IH 75 (A-35) - HYDRAULIC CABLE CONTROLS

1

825987C1

LEVER ASSY, valve control LH

1шт.

2

825988C1

LEVER ASSY, valve control RH

1шт.

3

825990C1

KNOB, control lever

2шт.

4

826003C1

PANEL ASSY, control lever

1шт.

5

825994C1

SPRING

control lever

2шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

NOT USED IN THIS APPLICATION

1шт.

8

825989C1

CABLE ASSEMBLY, control

2шт.

9

823070C1

EYELET, slider

2шт.

10

825991C1

GROMMET

control cable

2шт.

11

306132C1

CABLE TIE,14.5" L

TIE, cable

1шт.

12

825986C1

ARM, valve control

2шт.

13

364436R1

PIN,3/16" x 1", Coiled

4шт.
