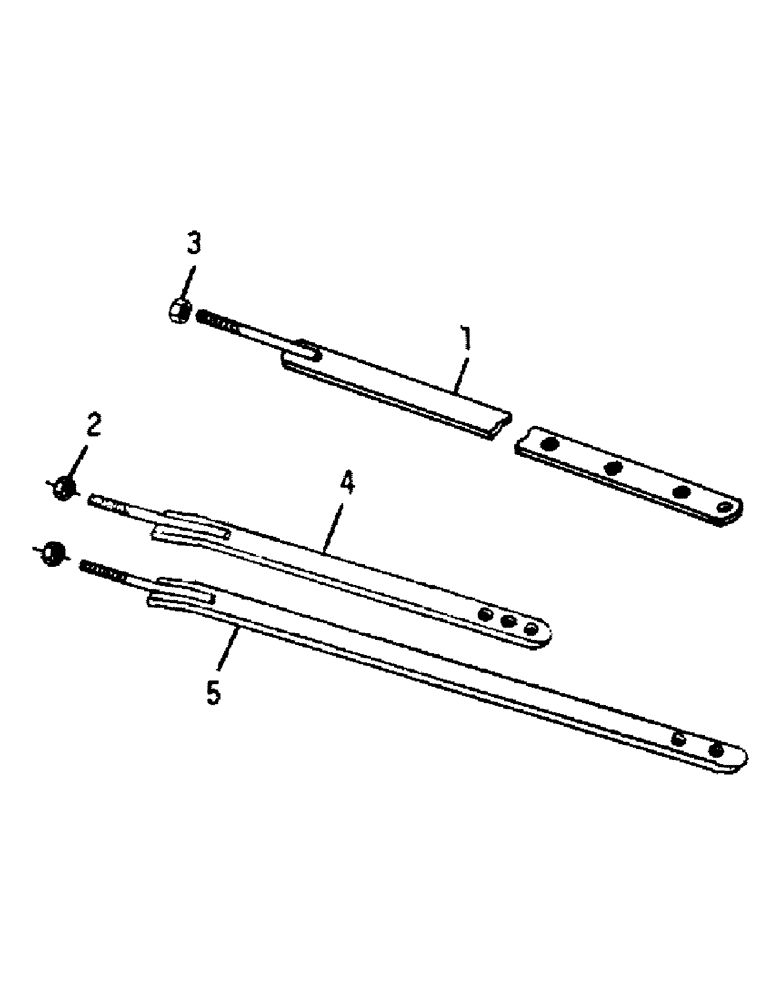

Запчасти Case IH 75 (A-34) - REEL TRUSS RODS

1

823201C1

ROD

truss, 100.5 overall length

10шт.

2

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 cdp p/t hex lock

10шт.

3

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 cdp p/t hex lock

10шт.

4

823246C1

ROD

short truss, 100.0 overall length, 10 for 18 ft. machines, 5 for 21 ft. machines

1шт.

5

823247C1

ROD

long truss, 146.0 overall length, 5 for 21 ft. machines, 10 for 25 ft. machines

1шт.

824219C1

CLIP

truss rod anti-rattle, 10 for 18 ft. machines, 15 for 21 ft. machines, 20 for 25 ft. machines

1шт.
