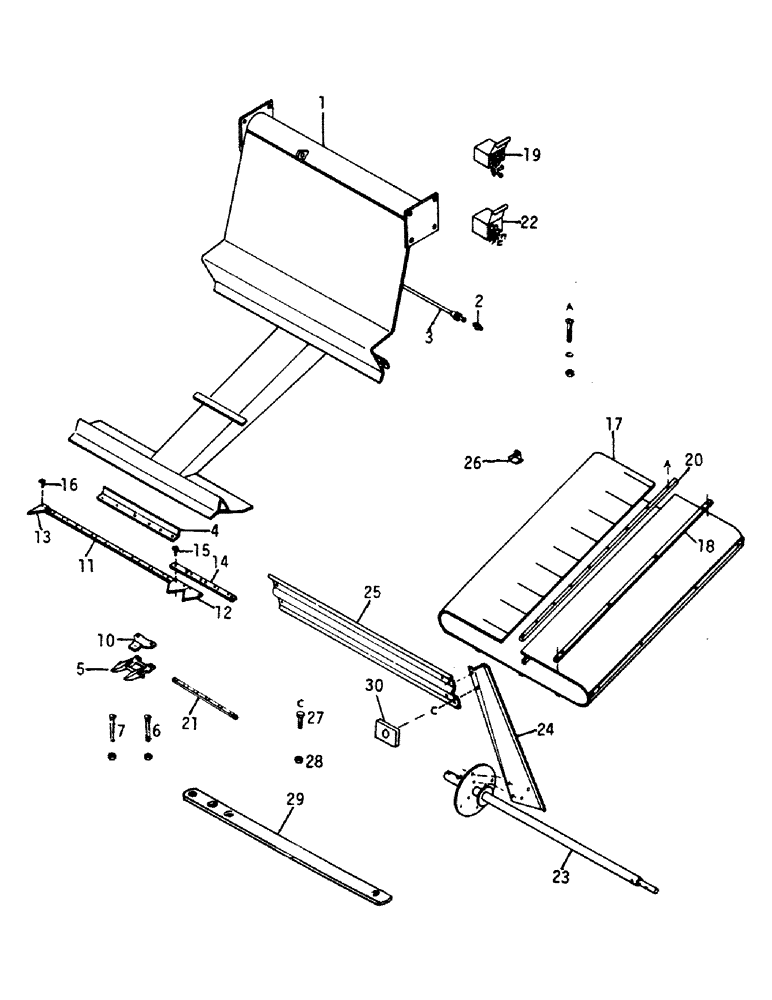

Запчасти Case IH 75 (A-32) - THREE FOOT EXTENSION ATTACHMENT

1

825925C91

FRAME ASSY, header extension

1шт.

2

94202784

UNION, 7/16-20 C-Z 37 deg hyd flared tube

1шт.

3

825974C11

TUBE ASSY, hydraulic, master to slave cyl, ext 0.25" OD, 35.25" Length

1шт.

4

825975C1

SUPPORT

cutter bar extension

1шт.

5

613838R2

GUARD

knife double

6шт.

REF: #5 - 613838R2 IS A STANDARD GUARD, NOWS THERE'S A DOUBLE HEAT TREATED GUARD PART NUMBER IS 187350A1.

1шт.

6

M805

BOLT, 7/16-14 x 1-5/16 type 5 no. 3 plow

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex

2шт.

7

M806

PLOW BOLT

BOLT, 7/16-14 x 1-9/16 type 5 no. 3 plow

10шт.

271501

SOCKET

NUT, 7/16-14 znd hex

10шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

613842R2

GUIDE

CLIP, hold-down

2шт.

11

825927C92

KNIFE

ASSY, w/chrome plated underserrated sections, 3 ft., Composed of

1шт.

825928C1

BAR

knife back

1шт.

825929C1

BAR

knife extension splice

1шт.

12712R1

RIVET

no. 5-1/2 x 15/16 small oval-hd

5шт.

457606R2

KNIFE SECTION

SECTION, underserrated full

11шт.

619078R1

KNIFE

SECTION, underserrated half RH

1шт.

19869R1

RIVET, no. 5-1/2 x 9/16 cdp small oval-hd Oval Hd, .211" x 9/16"

19шт.

11

825969C91

KNIFE

ASSY, w/chrome plated flax sections, 3 ft., When stock of 825969C91 is exhausted, Order knife back bar, 825928C1, eleven sections, 596321R1, section 599618R1, nineteen rivets, 19869R1 and splice bar, 825929C1, Composed of

1шт.

825928C1

BAR

knife back

1шт.

825929C1

BAR

knife extension splice

1шт.

12712R1

RIVET

no. 5-1/2 x 15/16 small oval-hd

5шт.

599616R1

KNIFE SECTION

SECTION, flax full

11шт.

599618R1

KNIFE SECTION

SECTION, flax half RH

1шт.

19869R1

RIVET, no. 5-1/2 x 9/16 cdp small oval-hd Oval Hd, .211" x 9/16"

19шт.

12

457606R2

KNIFE SECTION

SECTION, underserrated full

11шт.

12

596321R3

KNIFE SECTION

SECTION, overserrated full, Replaces flax section, 599616R1

11шт.

13

619078R1

KNIFE

SECTION, underserrated half RH

1шт.

13

599618R1

KNIFE SECTION

SECTION, flax half RH

1шт.

14

825929C1

BAR

K, knife extension splice

1шт.

15

12712R1

RIVET

no. 5-1/2 x 15/16 small oval-hd

5шт.

16

19869R1

RIVET, no. 5-1/2 x 9/16 CDP small oval-hd Oval Hd, .211" x 9/16"

19шт.

17

825977C92

APRON

ASSY, canvas

1шт.

18

825970C1

SLAT

wood

7шт.

19

Q3569

RIVET,Csk, 3/16" x 9/16"

& BURR, half pound package

1шт.

20

825971C11

SLAT

ASSY, metal clad connector, Includes attaching hardware

2шт.

132852

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

10-24 x 1-1/4 zn slt-rd-hd mach

9шт.

120361

NUT,Hex Mach Screw, #10 - 24

9шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

9шт.

21

825926C1

BAR

SPACER, knife

1шт.

22

451312R1

STAPLE

S, half pound package

1шт.

23

825985C2

SHAFT ASSY, reel extension

1шт.

24

825860C1

ARM

reel

5шт.

25

825984C1

BAT

reel, wooden, Serial no. 500 and below

5шт.

25

827270C2

BAT

reel, metal, Serial no. 501 and above

5шт.

26

825938C1

DEFLECTOR, roller

2шт.

27

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16-18 x 3/4 flanged hex-hd, 4 per reel arm

1шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flanged hex, 4 per reel arm

1шт.

29

823249C1

BAR

truss rod extension

5шт.

30

823248C1

BAR

washer

10шт.
