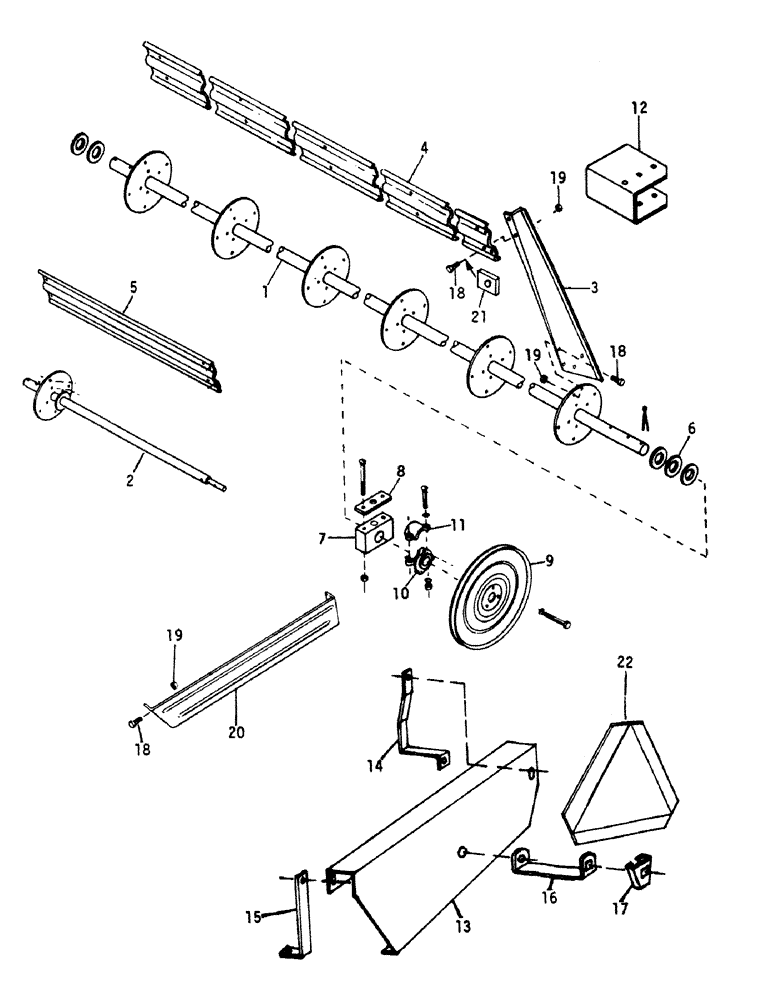

Запчасти Case IH 75 (A-30) - PLAIN REEL DRIVE

1

825857C1

SHAFT ASSY, reel, 15 ft. machines

1шт.

1

825858C3

SHAFT ASSY, reel, 18 ft. machines

1шт.

1

825859C3

SHAFT

ASSY, reel, 21 ft. machines

1шт.

1

825859C3

SHAFT

ASSY, reel, 25 ft. machines, Also use shaft assy, 823092C2 for 25 ft. machines

1шт.

2

823092C2

SHAFT

ASSY, reel, 4 ft., for 25 ft. machines only

1шт.

3

825860C1

ARM

reel, 25 for 15 ft. and 18 ft. machines, 30 for 21 ft. machines and 35 for 25 ft. machines

1шт.

4

827267C2

BAT

reel, 5 for 15 ft. machines

1шт.

4

827268C2

BAT

reel, 5 for 18 ft. machines

1шт.

4

827269C2

BAT

reel, 5 for 21 ft. machines, Also use reel bat, 823093C2 for 25 ft. machines

1шт.

5

823093C2

BAT

reel, 4 ft., 5 for 25 ft. machines only

1шт.

6

825944C1

WASHER

1.69 x 3.0 x 1/8, reel shaft

5шт.

7

825856C1

BLOCK

reel shaft

2шт.

8

825909C1

BAR

reel shaft bearing cap

2шт.

9

825846C1

PULLEY

secondary reel driven

1шт.

10

825847C1

HUB

pulley

1шт.

11

825848C1

CLAMP

pulley

1шт.

12

823039C2

SHIELD

RH reel shaft

1шт.

13

1253919C1

SHIELD

W/REFLECTOR, drive belt

1шт.

14

823423C1

BRACE, shield rear

1шт.

15

823422C1

BRACE, shield front

1шт.

16

826055C1

BRACKET, slow moving vehicle emblem, socket mounting, Serial no. 6020 and below

1шт.

16

824154C1

BAR, slow moving vehicle emblem, socket mounting, Serial no. 6021 & above

1шт.

17

398976R1

BRACKET

SOCKET, slow moving vehicle emblem mounting

1шт.

18

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16-18 x 3/4 flanged hex-hd, 4 per reel arm

1шт.

19

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 flanged hex, 1 per bolt

1шт.

20

825976C2

GUARD

reel end

10шт.

21

823248C1

BAR

washer, 25 ft. machines only

10шт.

22

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE, slow moving vehicle emblem

1шт.
