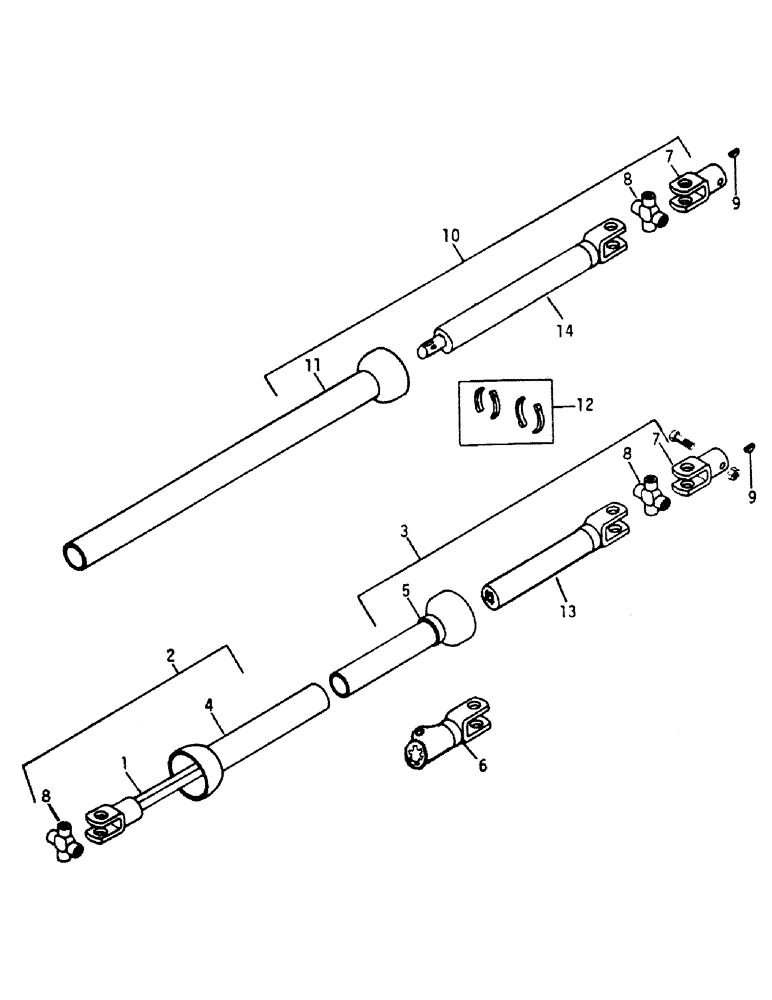

Запчасти Case IH 75 (A-29) - PTO AND MAIN DRIVE SHAFTS

1

826010C1

SHAFT

ASSY W/YOKE

1шт.

2

827607C91

SHAFT

ASSY, PTO front male half

1шт.

3

825962C91

SHAFT

ASSY, PTO rear female half

1шт.

4

827609C1

SHIELD

W/PRODUCT GRAPHIC, outer (For male half)

1шт.

1253795C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

5

826013C1

SHIELD

ASSY, plastic inner (For female half)

1шт.

6

596607R91

YOKE

ASSY, quick detachable service parts are

1шт.

613867R11

PIN

ASSY, quick detachable yoke, Consists of

1шт.

PIN, (NSS)

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, (NSS) 1/8" x 13/16", Slotted

1шт.

613868R1

SPRING

(NSS)

1шт.

7

826007C1

YOKE

end

2шт.

8

609144R91

CROSS

KIT, center cross

3шт.

609154C1

RING, snap

1шт.

9

117979

KEY

5/16 x 1-1/8 Woodruff C aly-stl

2шт.

10

825959C91

SHAFT

ASSY, main drive

1шт.

11

826009C1

SHIELD

ASSY, plastic

1шт.

12

599640R1

KIT

plastic shield bearing

3шт.

13

826012C1

SHAFT

TUBE ASSY W/YOKE

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

14

826008C1

SHAFT

ASSY W/YOKE

1шт.
