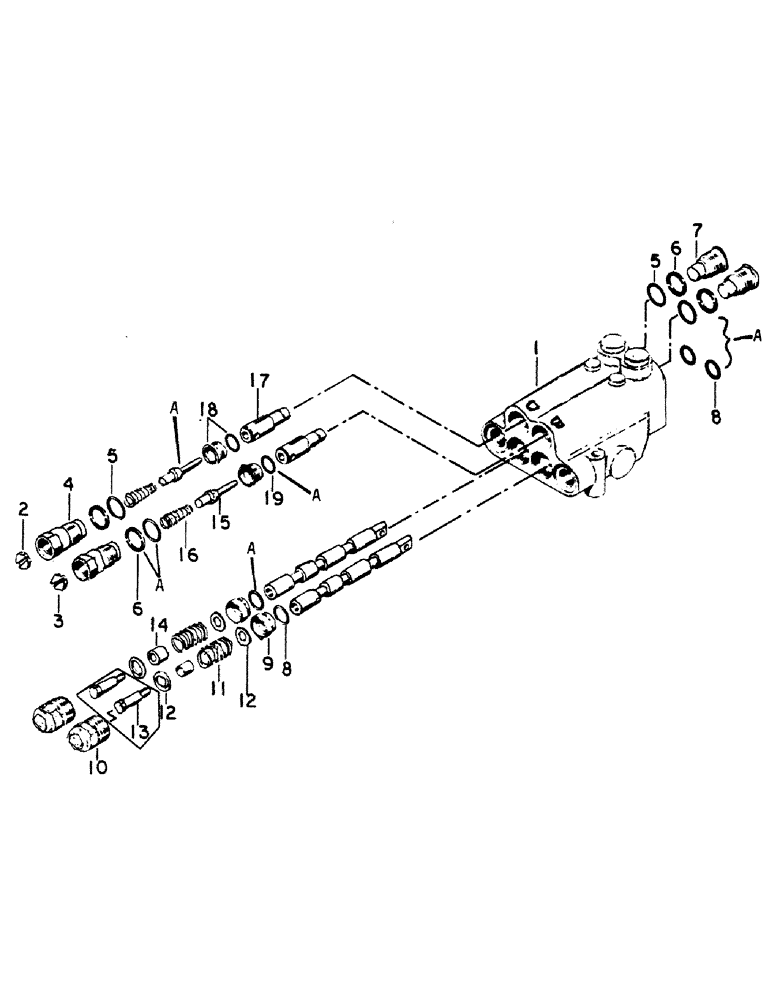

Запчасти Case IH 75 (A-27) - HYDRAULIC CONTROL VALVE

826295C91

VALVE ASSY, hydraulic contro, Replaces valve, 825958C91

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, hydraulic control valve, Not serviced separately, Order valve assy.

1шт.

826296C1

PLUG

W/O-RING, 364839R1, valve body, Used only w/valve, 826295C91

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

2

826031C1

RESTRICTOR

ORIFICE, .052 ID hole, port "D"

1шт.

3

826030C1

PLATE

ORIFICE, .035 ID hole, port "B"

1шт.

4

674515R91

PLUG

ASSY, lockout, Includes o-ring, 606271C1 and washer, 673644R1

2шт.

5

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 class 6

4шт.

6

673644R1

WASHER

WASHER, back-up

4шт.

7

674507R91

PLUG

ASSY, port adapter, Includes o-ring, 606271C1 and washer, 673644R1

2шт.

8

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

.500 x .688 x .094

4шт.

9

674775R1

BUSHING

spool

2шт.

10

674493R91

CAP

ASSY, spool, Used only w/valve, 825958C91

2шт.

10

1418841R1

CAP

ASSY, spool, Used only w/valve, 826295C91

2шт.

432527

PLUG,3/8"

3/8 hole dia znp button

2шт.

11

674490R1

SPRING

spool centering

2шт.

12

674495R1

WASHER, spring, inner/outer, Used only w/valve, 825958C91

4шт.

12

824545C1

WASHER

spring, inner, Used w/valve, 826295C91

2шт.

12

673628R1

WASHER

spring, outer, Used w/valve, 826295C91

2шт.

1418829R1

RING

spool spring retaining, Used w/valve, 826295C91

1шт.

13

674491R1

SCREW

spool, Used only w/valve, 825958C91

2шт.

14

674492R1

SPACER

spool screw

2шт.

15

588351R91

VALVE

POPPET ASSY

2шт.

16

674509R1

SPRING

poppet

2шт.

17

826032C1

PLUNGER

lockout, Used only w/valve, 825958C91

2шт.

17

202972C1

PLUNGER

unloading, Used w/valve, 826295C91

1шт.

18

674505R91

SEAT

ASSY, lockout

2шт.

19

370920R1

O-RING,1/2" ID

.500 x .625 x .063

2шт.

826033C91

KIT, valve seal service, Consists of all items marked "A", Used only w/valve, 825958C91

1шт.

826297C1

KIT

valve seal service, Consists of all items marked "A", Used w/valve, 826295C91

1шт.
