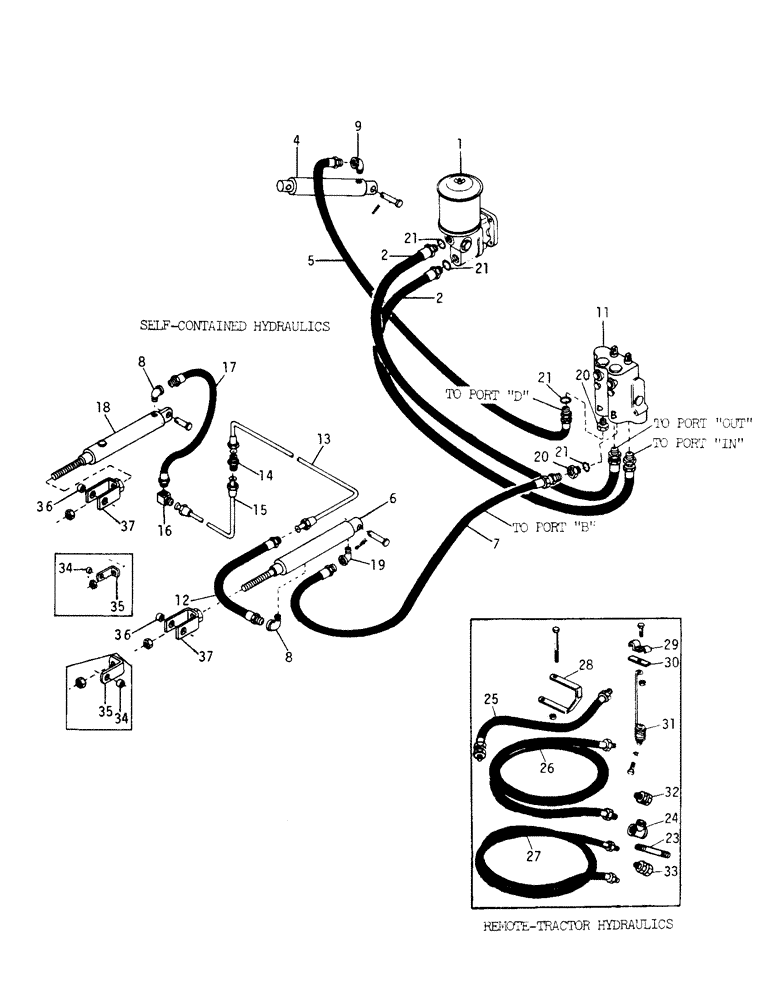

Запчасти Case IH 75 (A-22) - HYDRAULIC SYSTEM

1

825954C91

PUMP ASSY, hydraulic w/reservoir, For components see list of parts under details of hydraulic pump

1шт.

2

825935C91

HOSE ASSY, pump to valve hydraulic, 3/8 NPT x 9/16 NF x 28 in. long

2шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

825957C91

CYLINDER

ASSY, platform lift, Refer to cyl 1 for components

1шт.

474845R91

STRIPPER PACKAGE

KIT, o-ring & seal

1шт.

5

827255C1

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R1 Type T

HOSE ASSY, valve port to hyd cylinder, 1/4 NPT x 3/8 NPT x 42 in. long

1шт.

6

827884C91

CYLINDER

ASSY, reel lift master, Replaces 823413C92 by also ordering 1-827881C91 kit, Refer to cyl 1 for components

1шт.

823143C91

SEAL KIT

KIT, o-ring & seal(replaces 823142C91)

1шт.

ref #6 823142c91 - sh/be 823143c91 per hard copy. dmm 7/19/96

1шт.

7

825933C91

HYDRAULIC HOSE

HOSE ASSY, valve port to master cylinder hydraulic, 1/4 NPT x 1/4 NPT x 37 in. long

1шт.

8

105423

ELBOW,90 Degree, 1/4" NPT Street

1/4 NPT 90 deg street

2шт.

9

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

3/8 NPT 90 deg street

1шт.

10

NOT USED IN THIS APPLICATION

1шт.

11

826295C91

VALVE ASSY, hydraulic control, Replaces 825958C91, For components see list of parts under details of hydraulic control valve

1шт.

12

825934C91

HYDRAULIC HOSE

HOSE ASSY, hydraulic reel lift master cylinder to slave cylinder hyd, 1/4 NPT x 7/16 NF x 21 in. long

1шт.

13

825843C11

TUBE ASSY, hydraulic LH, 15 ft. end delivery machines, 18 ft. end delivery machines with serial no. 855 and below 0.5" OD, 47.25" Length

1шт.

13

826050C1

TUBE

ASSY, hydraulic LH, 18 ft. off center delivery machines w/serial no. 856 & above

1шт.

13

825845C11

TUBE,1" OD, 129-1" Length

ASSY, hydraulic LH , 21 ft. machines

1шт.

13

823103C1

TUBE ASSY, hydraulic LH, 25 ft. machines

1шт.

14

9402784

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

7/16-20 C-Z 37 deg hyd flared tube

1шт.

15

825841C11

TUBE ASSY, hydraulic RH, 15 ft. end delivery machines 0.5" OD, 129.25" Length

1шт.

15

825842C11

TUBE ASSY, hydraulic RH, 18 ft. end delivery machines with serial no. 855 and below 0.5" OD, 166.25" Length

1шт.

15

826051C1

TUBE ASSY, hydraulic RH, 18 ft. off center delivery machines w/serial no. 856 & above 0.25" OD, 115.3, 14.5" Length

1шт.

15

825844C11

TUBE

ASSY, hydraulic RH, 21 ft. machines

1шт.

15

823104C1

TUBE ASSY, hydraulic RH, 25 ft. machines 0.5" OD, 157, 11" Length

1шт.

16

825931C1

ELBOW, hydraulic

1шт.

17

825932C91

HYDRAULIC HOSE

HOSE ASSY, hydraulic reel lift RH, 1/4 NPT x 1/4 NPT x 21 in. long

1шт.

18

827885C91

CYLINDER ASSY.

CYLINDER ASSY, reel lift slave hyd, Replaces 823415C92 by also ordering 1-827881C91 kit, refer to cyl 1 for components

1шт.

823144C91

SEAL KIT

o-ring & seal

1шт.

19

119113

ELBOW, 1/4 NPT 45 deg street 45º, 1/4" NPT Street

1шт.

20

825930C91

ADAPTER

W/O-RING ASSY, swivel

2шт.

21

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

22

NOT USED IN THIS APPLICATION

1шт.

23

509962

HYD CONNECTOR

NIPPLE, 3/8 x 2 in. long pipe, in cylinder

1шт.

24

120280

TEE,3/8" NPT, Fem

3/8 NPT pipe

1шт.

25

823407C1

HOSE, hydraulic jumper, 3/8 NPT x 3/8 NPT x 20 in. long

1шт.

26

824225C1

HOSE ASSY, hydraulic platform lift, 3/8 NPT x 3/8 NPT x 74 in. long, Replaces 823406C1

1шт.

27

824226C1

HOSE ASSY, hydraulic reel lift, 1/4 NPT x 1/4 NPT x 74 in. long, Replaces 134795H1

1шт.

28

823411C1

CLAMP, hose

1шт.

29

823412C1

CLAMP, double hose

2шт.

30

823409C1

BAR, hose support

1шт.

31

823408C1

SUPPORT

hydraulic hose

1шт.

32

823069C1

ADAPTER

platform restrict swivel, .052 orifice, 3/8 NPT female

1шт.

33

702843C1

ADAPTER

reel restrict swivel, .031 orifice, 1/4 NPT female

1шт.

34

650462R1

BUSHING

SPACER, reel lift bracket (7/8 x .53), 1 per bracket, 825878C1

1шт.

35

825878C1

BRACKET

cylinder reel lift, 2 for 15 ft. and 18 ft. machines, 1 For 21 ft. and 25 ft. machines LH side, for machines w/serial no. 6899 & below, order clevis assy, 825881C1

1шт.

36

825950C1

SPACER

reel lift clevis (7/8 x 1.66), 1 per clevis assy, 825881C1, ser. no. 10095 and below

1шт.

37

825881C1

CLEVIS

ASSY, reel lift, ser. no. 10095 and below

2шт.

824970C1

CONDUIT

HOSE, hyd tube protector, in drives frame

1шт.

1281059C1

WASHER, reel stop, ser. no. 010095 thru 011251

1шт.
