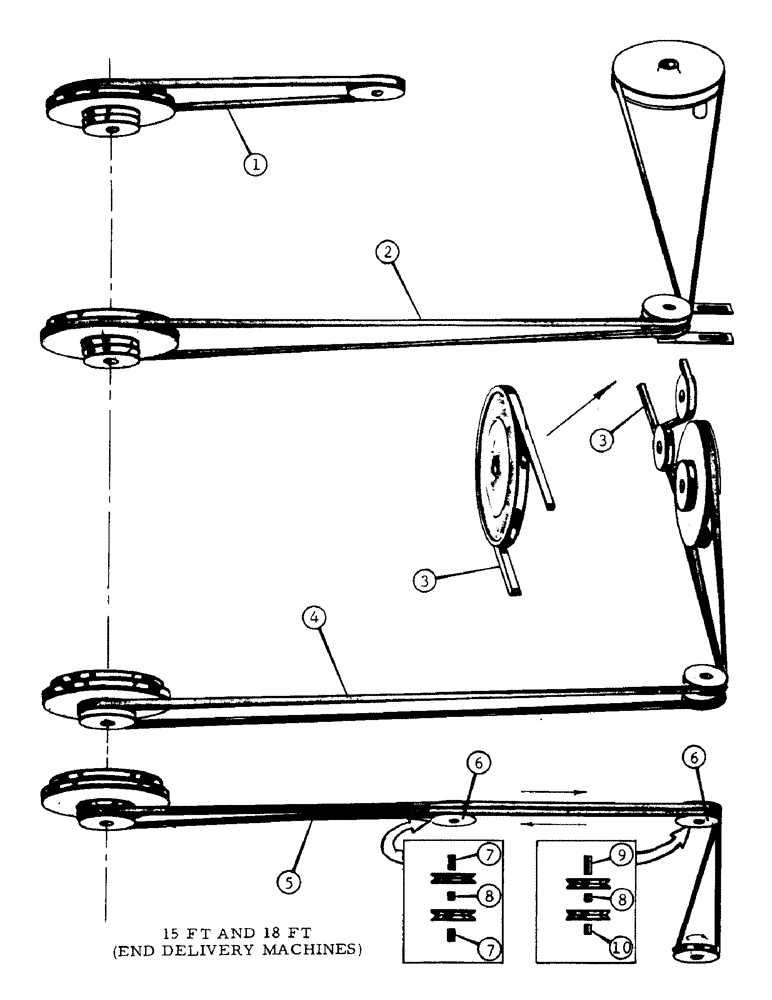

Запчасти Case IH 75 (A-20) - DRIVE BELTS

1

473468R2

V-BELT,0.56" W x 72.10" L

Hydraulic pump drive 0.56" W x 72.10" L

1шт.

2

824185C1

BELT,0.63" W x 214.20" L

Knife Drive, Replaces 825943C1 0.63" W x 214.20" L

1шт.

3

19894K

BELT,123.49 L

V-BELT , Secondary reel drive 123.49 L

1шт.

4

824202C1

BELT,0.63" W x 146.99" L

Primary Reel Drive, Replaces 823819C1 0.63" W x 146.99" L

1шт.

5

825941C1

BELT,0.30" W x 218.40" L

Platform Roller Drive, 15 ft. Machines Only 0.30" W x 218.40" L

1шт.

6

161430C91

PULLEY

drive idler, 4 for 15 ft. machines, 8 for 18 ft., 21 ft. and 25 ft. machines

1шт.

7

825949C1

SPACER

idler pulley outer, front and right rear (3/4 x 1.06)

2шт.

8

825945C1

SPACER

idler pulley center (3/4 x .22) (2 for 15 ft., 4 for 18 ft., 21 ft. and 25 ft. machines)

1шт.

9

825948C1

SPACER

idler pulley outer front (3/4 x 1.56)

1шт.

10

474047R1

SPACER

idler pulley outer rear (3/4 x .53), 1 for 15 ft. machines, 3 for 18 ft., 21 ft. and 25 ft. machines

1шт.

11

825995C1

SPACER

idler pulley outer front (3/4 x 1.38), For all machines except 15 ft.

2шт.

12

825943C1

BELT

Platform Roller Main Drive, 18 foot Machines

1шт.

12

825942C1

BELT,0.63" W x 256.40" L

Platform Roller Main Drive, 21 ft. Machines 0.63" W x 256.40" L

1шт.

12

823091C1

BELT,0.63" W x 280.40" L

Platform Roller Main Drive, 25 ft. Machines 0.63" W x 280.40" L

1шт.

13

555118R1

V-BELT

Platform roller secondary drive, 18 ft., 21 ft. and 25 ft. machines only

1шт.
