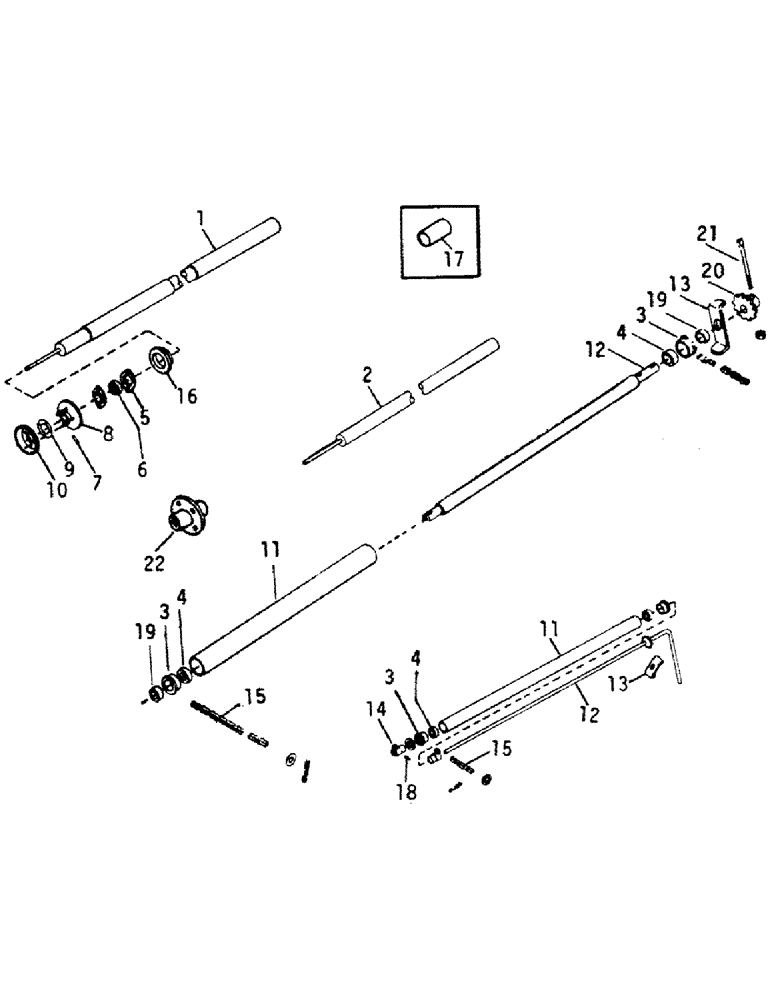

Запчасти Case IH 75 (A-14) - CONVEYOR, DRIVE ROLLER AND IDLER ROLLER, SERIAL NO. 1361 AND ABOVE

1

824251C91

ROLLER

ASSY, drive RH w/lagging, Serial no. 6899 & below. Also order hub, 824229C1 and pin, 617939R1

1шт.

2

824235C1

ROLLER

ASSY, drive LH w/lagging, all machines except 15 ft., serial no. 6899 & below. Also order hub, 824231C1, pin, 617939R1 and 4 each of 180113, 120376 and 120214

1шт.

3

825833C1

RETAINER

roller bearing, 3 for 15 ft. machines, 6 for 18 ft., 21 ft. and 25 ft. machines

1шт.

4

581185R91

BALL BEARING

drive and idler roller, 3 for 15 ft. machines, 6 for 18 ft., 21 ft. and 25 ft. machines

1шт.

5

612031R1

FLANGED BEARING

two-hole bearing, 2 per bearing

1шт.

6

564991R92

BEARING, BALL,22.23mm ID x 52mm OD x 15mm W

BEARING ASSY, drive roller, 1 for 15 ft., 2 for 18 ft., 21 ft., and 25 ft. machines

1шт.

658006R11

COLLAR

W/SET SCREW, 102569, bearing, 1 per bearing

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 cup-pt hdls set, 1 per collar

1шт.

7

617940R1

PIN,5/16" x 1 3/4", Coiled

Serial no. 6899 & below 5/16" x 1 3/4", Coiled

1шт.

7

617939R1

PIN,5/16" x 1 1/2", Coiled

Serial no. 6900 & above 5/16" x 1 1/2", Coiled

1шт.

8

825921C1

PULLEY

half, 1 for 15 ft., 3 for 18 ft., 21 ft. and 25 ft. machines, Order pulley 825911C1 and hub, 823235C1, Serial no. 6019 and below

1шт.

8

825911C1

PULLEY

half-flange, 1 for 15 ft., 3 for 18 ft., 21 ft. and 25 ft machines, serial no. 6020 and above

1шт.

9

1276780C1

SHIM

pulley spacer, 6 per pulley assy, Replaces 825912C1

1шт.

10

825911C1

PULLEY

half-flange, 1 for 15 ft., 3 for 18 ft., 21 ft. and 25 ft machines

1шт.

11

825832C1

TUBE

idler roller, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines

1шт.

12

825835C1

ROD

SHAFT, idler roller, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 501 and above

1шт.

12

827264C1

ROD

SHAFT ASSY, idler roller, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 5414 and below

1шт.

12

823115C1

SHAFT

idler roller, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 5415 and above

1шт.

REF ITEM 12-THE ILLUSTRATION DEPICTS P/N 823115C1 ONLY. P/N 825835C1 IS 5/8" DIA AND IS 43-1/4" OVERALL LENGTH. IT IS 42-7/8" CENTER TO CENTER OF THE HOLE ON EACH END. P/N 827264C1 IS A BENT ROD WITH A WASHER WELDED WITH TEETH ON IT. JBEDFORD 8/11/97.

1шт.

103389

SPLIT PIN/SAFETY PIN,1/8" x 2"

Pin, Split (Cotter), , 2 per shaft 1/8" x 2"

1шт.

13

827265C1

LATCH

ratchet tightener, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 5414 and below

1шт.

13

823120C1

LATCH

ratchet tightener, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 5415 and above

1шт.

14

827263C1

BEARING

TUBE ASSY, bearing, 2 for 15 ft., 4 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 5414 and below

1шт.

15

CHAIN ASSY, tightener, 2 for 15 ft., 4 for 18 ft., 21 ft. and 25 ft. machines, Use 20 links of no. 35 roller chain from a 10 ft. roll marked 1789D, Serial no. 5414 and below

1шт.

15

CHAIN ASSY, tightener, 2 for 15 ft., 4 for 18 ft., 21 ft. and 25 ft. machines, Use 19 links of no. 35 roller chain from a 10 ft. roll marked 1789D, Serial no. 5415 and above

1шт.

826869C1

WASHER

tightener chain, 1 per chain

1шт.

16

825892C1

RING

ASSY, drive roller retaining, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 501 and above

1шт.

17

823065C1

PACKAGE

roller lagging service, 3 to a package, For drive roller

1шт.

18

PIN, 3/16 x .88 long roll

1шт.

19

823122C1

SPACER

idler roller, 7/8 OD x .5 long, 2 for 15 ft., 4 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 5415 and above

1шт.

20

823116C2

SPROCKET ASSY.

SPROCKET, 17T roller tightener, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 5415 and above

1шт.

21

823119C1

BOLT

ratchet handle, 1 for ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial no. 5415 and above

1шт.

120377

NUT,3/8" - 16, Gr 5

1 per bolt 3/8"-16, G5

1шт.

22

823235C1

HUB

roller drive, 1 for 15 ft., 2 for 18 ft., 21 ft. and 25 ft. machines, Serial nos, Serial Range: 6020-6899

1шт.

22

824231C1

HUB

roller drive LH, all machines except 15 ft., Serial no. 6900 and above

1шт.

22

824229C1

HUB

roller drive RH, Serial no. 6900 and above

1шт.
