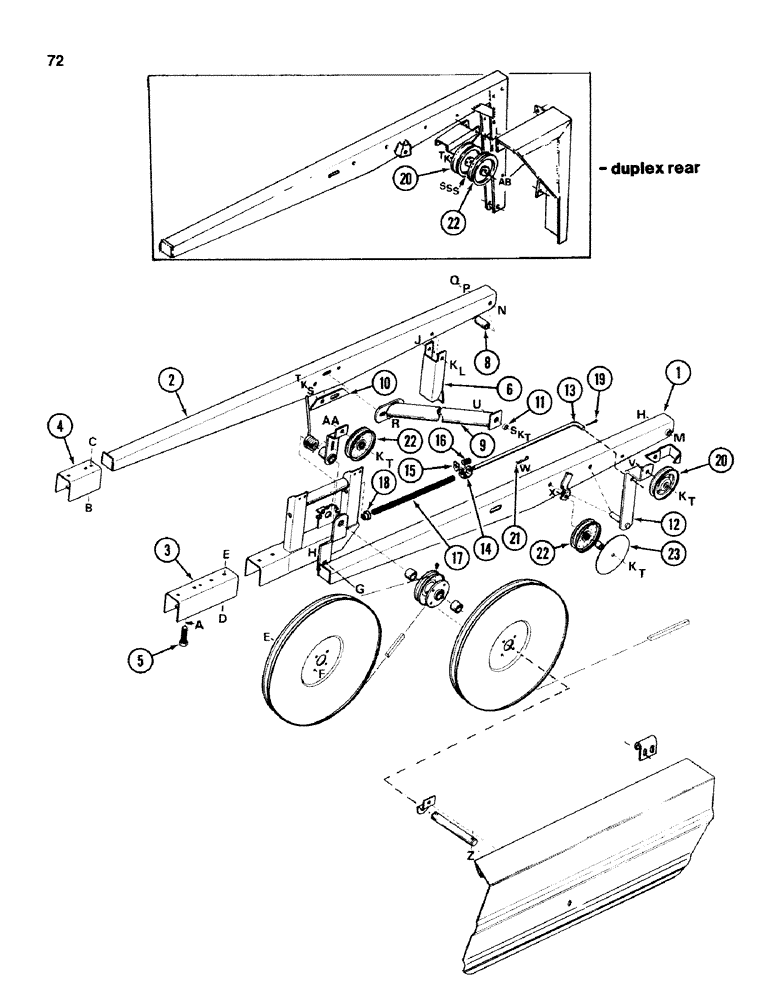

Запчасти Case IH 742 (72) - REEL DRIVE AND SUPPORT ARMS

1

1276533C1

SUPPORT

ARM - support, left (front unit)

1шт.

h

9413960

LOCK NUT,5/8"-11, GB

NUT - lock, 5/8 inch NC distorted thread

1шт.

m

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch

1шт.

2

1276534C1

ARM

- support, right (front and rear units)

2шт.

n

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch

2шт.

p

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

q

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

2шт.

3

1276535C1

BRACKET

- bearing, left

2шт.

d

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

e

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- serrated flange lock, 3/8 inch NC

4шт.

4

1276536C1

BRACKET

- bearing, right

2шт.

b

27124R1

BOLT,Short NK, 3/8"-16 x 4", G5

- round head square neck, 3/8 NC x 4 inch

8шт.

c

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

8шт.

5

1276537C1

SCREW,Hex, 5/8" - 11 x 64mm, Gr 5, Full Thd

- positioning

4шт.

a

NUT - hex, jam 5/8 inch NC

4шт.

6

1276538C1

BRACKET

PROP - reel

3шт.

j

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT - hex, 1/2 NC x 3-1/2 inch

3шт.

k

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

l

9413956

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC distorted thread

3шт.

8

1276721C1

SPACER

- reel arm

2шт.

9

1276539C1

BRACE

- reel arm

2шт.

u

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

s

120396

WASHER

- flat, 17/32 inch ID

6шт.

k

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

t

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

r

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - round head square neck, 1/2 x 1-1/2 inch

4шт.

10

1276540C1

PLATE

- brace

2шт.

11

950019R1

SPACER

- brace

2шт.

12

1276541C1

ARM

- idler

2шт.

w

NLS

NO LONGER SERVICED

- flat, 21/32 inch ID

2шт.

13

1276542C1

ROD

- spring

2шт.

14

1276543C1

CHANNEL

- stop

2шт.

15

1276544C1

WASHER

- stop

2шт.

16

1276545C1

SPRING

- channel

2шт.

17

1276546C1

SPRING

- rod

2шт.

18

1276547C1

BUSHING

- plastic

2шт.

19

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

6шт.

20

1276626C1

PULLEY

- idler, "V"

3шт.

v

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

2шт.

k

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

t

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

s

NLS

NO LONGER SERVICED

- flat, 17/32 inch ID

3шт.

ab

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT - hex, 1/2 NC x 3 inch

1шт.

21

591107R1

COTTER PIN

- hair

2шт.

22

1276600C1

PULLEY

- idler, backside

5шт.

x

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

k

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

t

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

aa

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

- hex, 1/2 NC x 1-3/4 inch

2шт.

23

1276550C1

SHIELD

- pulley

2шт.
