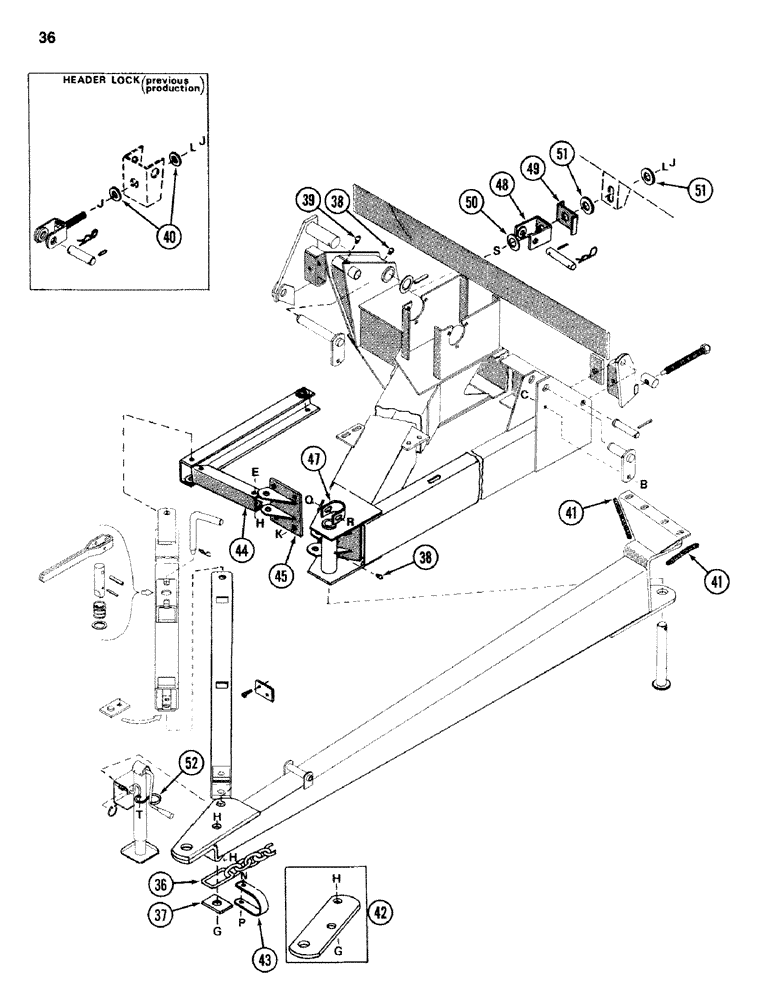

Запчасти Case IH 742 (36) - MAIN HITCH GROUP

36

100682C3

CHAIN (AG)

CHAIN - to tractor or towing vehicle

1шт.

37

1281426C1

WASHER

- rectangular

1шт.

g

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

1шт.

h

9413962

LOCK NUT,3/4"-10, GB

NUT - lock, 3/4 inch NC distorted thread

1шт.

38

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

39

16964R91

FITTING

- lube, 90 degree

1шт.

40

21211R1

WASHER

- flat (prior to P.I.N. 736)

2шт.

j

280954

NUT,3/4"-10, G5

2шт.

l

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

41

1276485C1

MOLDING

MOULDING - edge trim, specify 4-3/8 inch (110 mm) length

2шт.

42

1281369C91

PLATE

KIT - hitch plate, for tractors without clevis drawbar

1шт.

95652C1

PLATE

- hitch

1шт.

g

19866R1

BOLT,Hex, 3/4" - 10 x 6 1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

1шт.

h

9413962

LOCK NUT,3/4"-10, GB

NUT - lock, 3/4 inch NC distorted thread

1шт.

43

1281415C1

CLEVIS

- chain

1шт.

n

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

- hex, 5/8 NC x 3-1/2 inch

1шт.

p

9413960

LOCK NUT,5/8"-11, GB

NUT - lock, 5/8 inch NC distorted thread

1шт.

44

95623C1

CHANNEL

- short

1шт.

e

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

h

9413962

LOCK NUT,3/4"-10, GB

NUT - lock, 3/4 inch NC distorted thread

1шт.

45

95624C1

SUPPORT

BRACKET - mounting, channel (prior to P.I.N. 736)

1шт.

k

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flange head, 1/2 NC x 1 inch

4шт.

47

95646C1

COLLAR

- securing, pin

1шт.

q

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

r

9413953

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8 inch NC distorted thread

1шт.

48

91392C1

CLEVIS

- header lock (P.I.N. 736 and after)

1шт.

49

91391C1

STOP

- header lock (P.I.N. 736 and after)

1шт.

50

Q296

WASHER

- flat, 18 gauge (P.I.N. 736 and after)

1шт.

51

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

- flat, 10 gauge, hardened (P.I.N. 736 and after)

2шт.

j

280954

NUT,3/4"-10, G5

1шт.

l

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

s

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

1шт.

52

96150C1

HOOK

- "S"

1шт.

t

96148C1

NUT

- push on

1шт.
