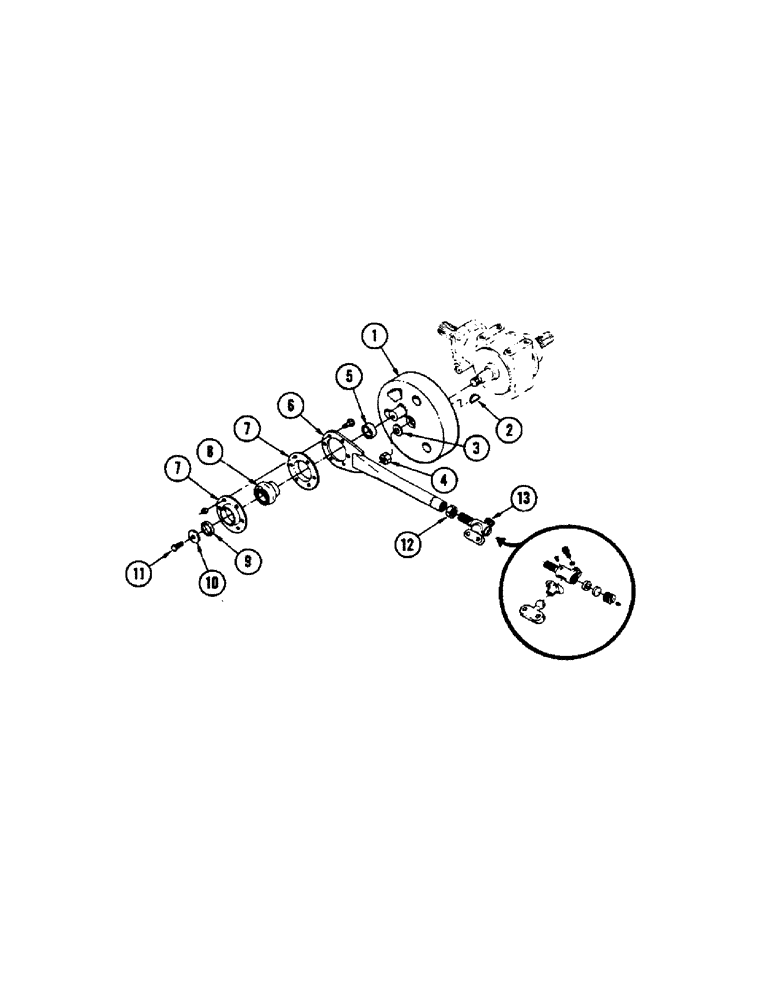

Запчасти Case IH 575 (11A[A]) - SICKLE DRIVE, NUMBER 8352501 AND AFTER

1

F35067

FLYWHEEL - Pitman drive

1шт.

2

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

3

FH440321

WASHER

1шт.

4

131-59

LOCK NUT,3/4"-16

NUT - 3/4" N.F. hex.

1шт.

5

F35068

SPACER - Pitman

1шт.

6

F35263

PITMAN

1шт.

7

FH712612

FLANGE

- Pitman bearing

2шт.

8

F90485

BEARING ASSY

BEARING (Collar not used)

1шт.

9

F35063

SPACER

1шт.

10

F35069

WASHER

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

12

FHO74526

NUT - jam

1шт.

13

FH383588

HEAD

- Pitman (See ref. 10 above)

1шт.
