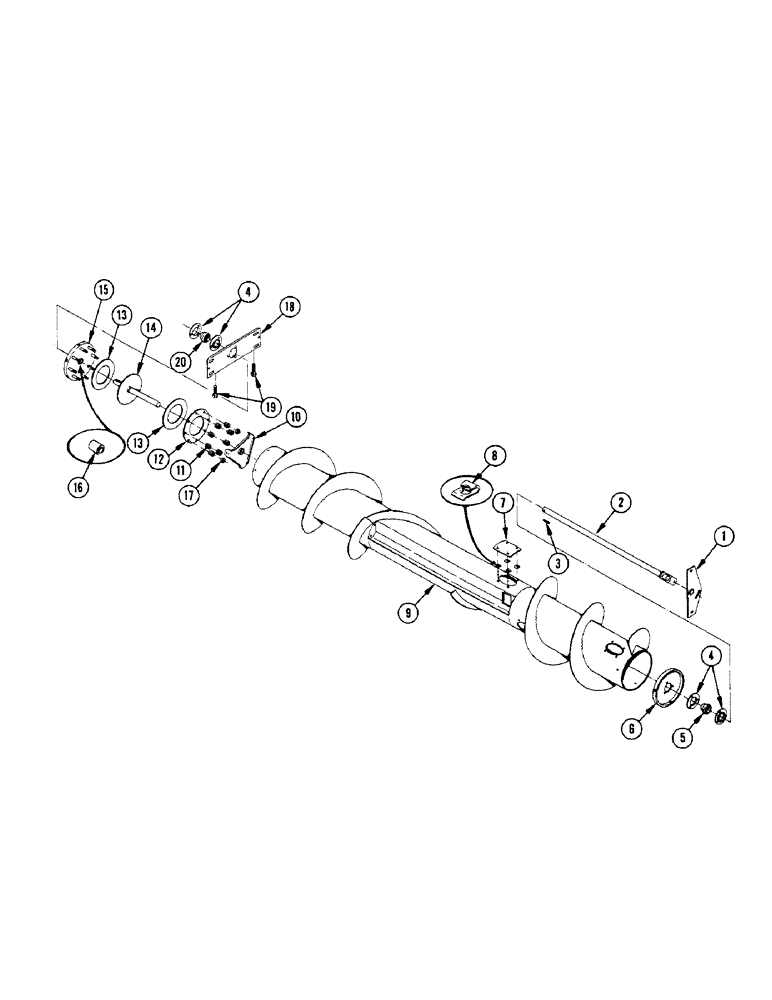

Запчасти Case IH 575 (10) - AUGER

1

FH429753

BRACKET - mounting, L.H.

1шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

95-8

WASHER,1/2"

flat 1/2"

2шт.

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

2

FH432849

SHAFT - adjusting

1шт.

3

T33565

BUCKET TOOTH KEY

KEY

1шт.

4

F62225

FLANGE

- bearing

4шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

5

1443CKA

BALL BEARING

BEARING

1шт.

F62234

COLLAR

1шт.

6

FH311845

BULKHEAD

1шт.

174-208

SCREW - 3/8" x 3/4" N.F. Phil. rec. mach

3шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

3шт.

7

F9225

PLATE - cover

5шт.

187-348

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 5/8"

SCREW - 14A x 5/8" pan hd. tapping mach

20шт.

8

445406

SPRING NUT,Tinn, 1/4"-14

- speed

20шт.

9

FH432716

AUGER

1шт.

10

FH156018

BULKHEAD

1шт.

174-208

SCREW - 3/8" x 3/4" Phil. rd. hd. mach

3шт.

11

FHO58644

SPRING

8шт.

12

FH260745

PLATE - pressure

1шт.

13

FHO27565

DISC

2шт.

14

FH260752

PLATE - clutch

1шт.

15

FH260729

SUPPORT

BULKHEAD

1шт.

16

FHO52563

BEARING

1шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - 5/16" - 18 elastic stop

8шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

8шт.

174-208

SCREW - 3/8" x 3/4" N.F. Phill. rec. hrd. mach.

6шт.

18

FH371674

BRACKET - mounting, R.H.

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

19

FHO72934

BOLT - 3/8" x 2-1/2" N.C. hex. - full thread

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

20

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

11шт.

F62226

COLLAR

1шт.
