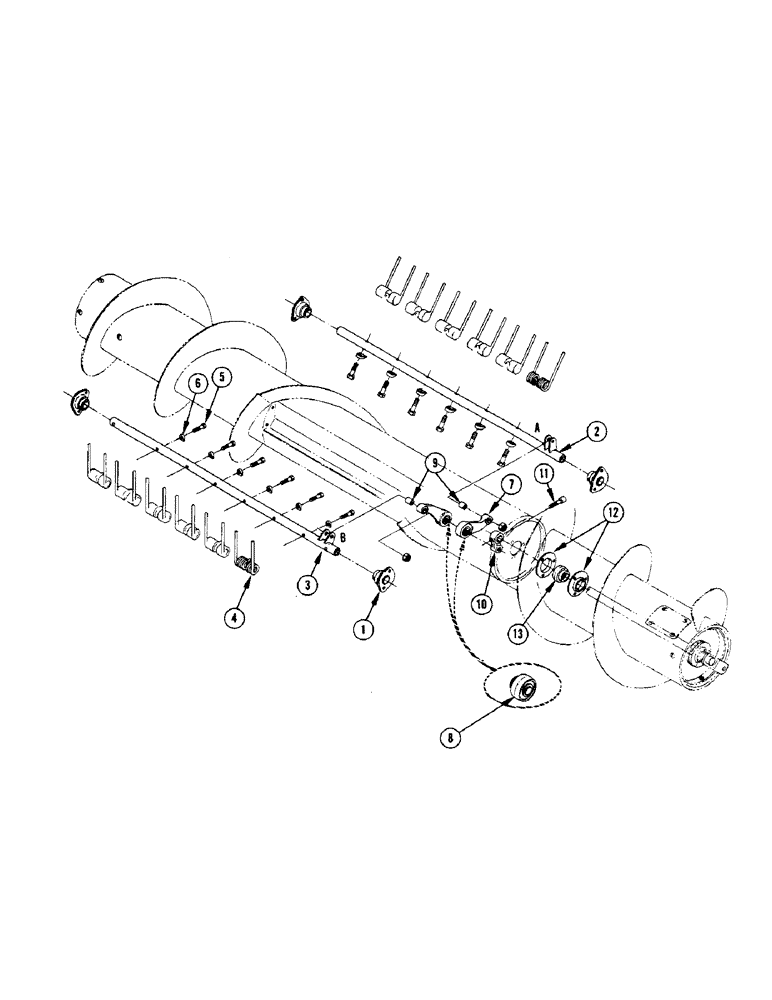

Запчасти Case IH 575 (10[A]) - AUGER TINES

1

FH308171

BEARING

4шт.

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

2

FH432872

TUBE - tine (A) (Measures approx. 8" from ears to nearest tine hole)

1шт.

3

FH432880

TUBE - tine (B) (Measures approx. 2-1/2" from ears to nearest tine hole)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

4

FH756270

TINE - double

12шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

12шт.

6

FH261024

CLIP

- finger

12шт.

7

FH711804

ARM - control

2шт.

8

B10700

BEARING ASSY,0.7505" ID x 1.8504" OD x 1.219"

BEARING (Collar not used)

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28

2шт.

9

FH311910

BUSHING

2шт.

75-524

X

SCREW - 3/8" x 1-1/2" N.C. rhd.

2шт.

131-352

LOCK NUT,3/8"-16, GA

NUT - 3/8"

2шт.

10

FH407171

ARM

CRANK

1шт.

11

61-640

HEX SOC SCREW,3/8"-16 x 2 1/2"

BOLT - 3/8" x 2-1/2" socket hd.

1шт.

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" N.C. hex. hvy

1шт.

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- 3/4" x 3-3/4" N.C. hex.

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

12

F62225

FLANGE

- bearing

2шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

3шт.

13

1443CKA

BALL BEARING

BEARING

1шт.

F62234

COLLAR

1шт.
