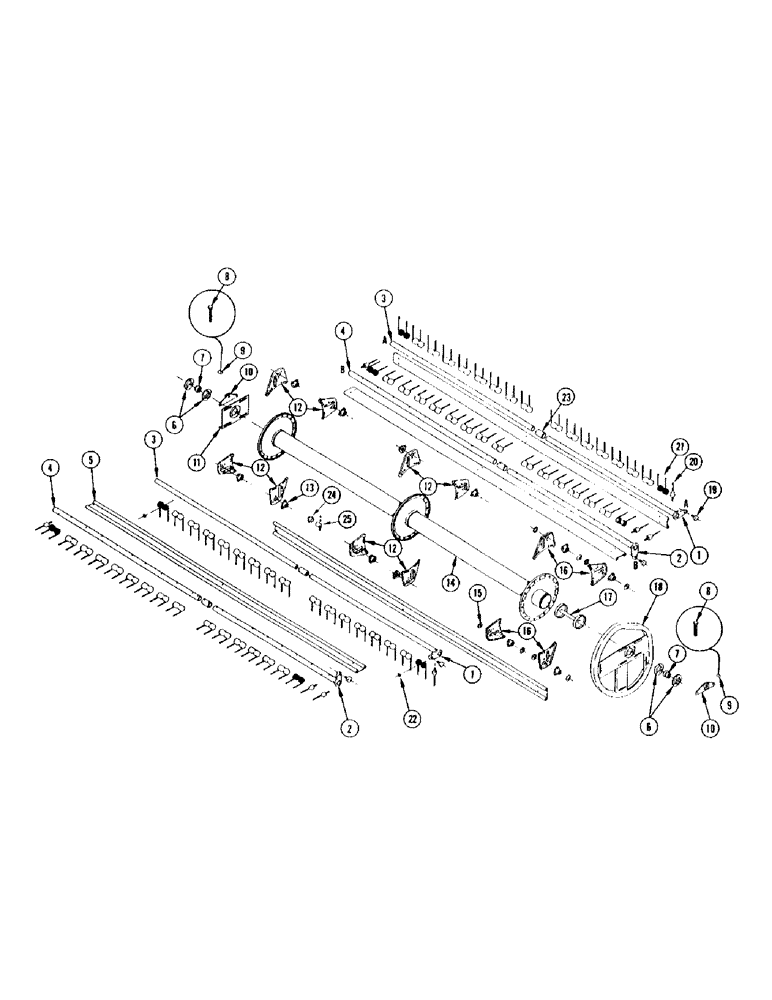

Запчасти Case IH 575 (08) - REEL

1

FH428201

TUBE - tine, L.H. (A)

2шт.

2

FH428227

TUBE - tine, L.H. (B)

2шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

3

FH428243

TUBE - tine, R.H. (A)

2шт.

4

FH428250

TUBE - tine, R.H. (B)

2шт.

5

FH428326

BAT - reel

4шт.

6

F62225

FLANGE

- bearing

4шт.

7

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

2шт.

F62226

COLLAR

1шт.

8

113-225

BOLT,Hex, 3/8" - 16 x 5", Gr 5, Full Thd

2шт.

9

FH312876

TRUNNION

2шт.

10

FH312868

BRACKET - adjusting

2шт.

11

FH288399

MOUNTING

1шт.

12

FH428300

SUPPORT - R.H. and center

8шт.

13

FH383414

X

BEARING ASSEMBLY (Before 8373901)

12шт.

FH712380

BEARING

(Before 8373901)

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease 1/2" - 28 (Before 8373901)

12шт.

14

FH428169

TUBE - reel

1шт.

15

FHO52274

BUSHING

12шт.

16

FH428292

SUPPORT

- L.H.

4шт.

17

FH428268

SHAFT - reel

1шт.

18

FH378497

TRACK - cam

1шт.

19

FH710426

BEARING - cam follower

4шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" - 18 N.F. jam

4шт.

20

FH756163

TINE

- single

8шт.

21

FH750075

TINE

- double

66шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

66шт.

22

FH261024

CLIP

66шт.

23

FH428334

SPLICE - tube

4шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

8шт.

24

F35402

FLANGE

HOUSING - bearing (8373901 and after)

12шт.

25

F35401

BEARING

(8373901 and after)

12шт.

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

12шт.

131-1115

NUT - 1/4"

12шт.

1

FH428201

TUBE - tine, L.H. (A)

1шт.

3

FH428243

TUBE - tine, R.H. (A)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

5

FH428326

BAT - reel

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

6шт.

12

FH428300

SUPPORT - R.H. and center

2шт.

13

FH383414

X

BEARING ASSEMBLY (Before 8373901)

3шт.

FH712380

BEARING

(Before 8373901)

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

9шт.

15

FHO52274

BUSHING

3шт.

16

FH428292

SUPPORT

- L.H.

1шт.

19

FH710426

BEARING - cam follower

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" - 18 N.F. jam

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

FH756163

TINE

- single

1шт.

21

FH750075

TINE

- double

17шт.

22

FH261024

CLIP

17шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

17шт.

23

FH428334

SPLICE - tube

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

24

F35402

FLANGE

HOUSING - bearing (8373901 and after)

3шт.

25

F35401

BEARING

(8373901 and after)

3шт.
