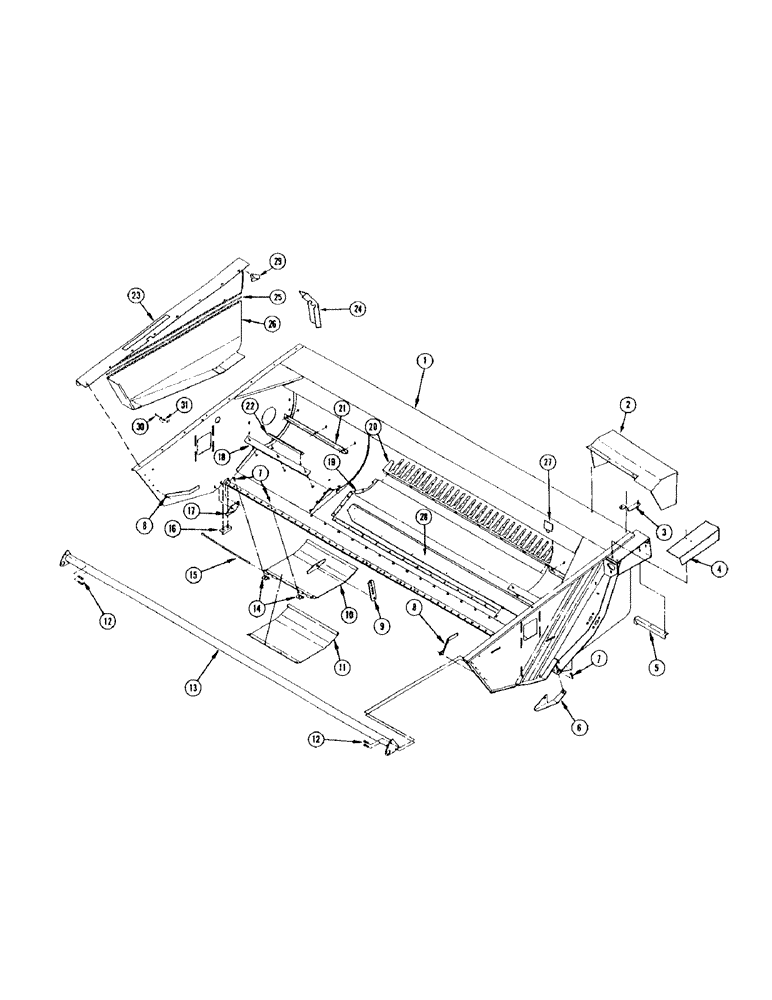

Запчасти Case IH 575 (06) - HEADER, SKID SHOES AND SHIELDS

1

FH449561

HEADER (Before 8373901)

1шт.

1

F

HEADER (8373901 and after)

1шт.

2

FH449629

SHIELD - main drive

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

3

FH432971

STRAP - drive shield

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

4

FH449736

SHIELD - PTO rear

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

5

FH429456

BRACE - angle

1шт.

11-816

BOLT,Short NK, 1/2"-13 x 1", G2

- 1/2" x 1" rhd. sq. nk.

1шт.

6

FH429274

SHOE - L.H. (Before 8373901)

1шт.

6

F37389

SHOE - L.H. (8373901 and after)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

7

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk. gr. 5

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

1шт.

8

FH262626

STRAP

- deflector

2шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

2шт.

9

FH429266

STRAP - shoe

2шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

10

FH429365

SHOE - skid (Before 8373901)

2шт.

10

F37420

SHOE - skid L.H. (8373901 and after)

1шт.

10

F37421

SHOE - skid R.H. (8373901 and after)

1шт.

11

FH429340

PLATE - wear

2шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

8шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

13

FH287714

LEAN BAR

1шт.

14

FH377234

CLIP - hinge

4шт.

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk. gr. 5

4шт.

15

FH377291

PIN - hinge, skid shoe

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

16

FH429332

PLUG - end panel

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

2шт.

17

FH429258

GUARD (Replaced by FH497065 when exh.)

1шт.

17

FH497065

GUARD (Replaces FH429258 when exhausted)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

18

FH429324

STRIPPER - front (Before 8373901)

2шт.

18

F36431

STRIPPER (8373901 and after)

2шт.

19

FH429167

PAN - center (Before #8352501) Replaced by F35040 when exh.

1шт.

19

F35040

PAN

(8352501 to 8373900) (Replaces FH429167 when exh.)

1шт.

19

F36585

PAN - center (8373901 and after)

1шт.

77-512

SCREW

- 5/16" x 3/4" truss hd. mach

24шт.

20

FH429399

COMB (Before 8373901)

1шт.

20

F35061

COMB (8373901 and after)

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

9шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

95-8

WASHER,1/2"

flat 1/2"

2шт.

21

FH429357

STRIPPER - rear (Before 8373901)

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

16шт.

22

FH433078

STRIPPER - center (Before 8373901)

1шт.

22

F36481

STRIPPER (8373901 and after)

2шт.

23

FH449728

SHIELD - upper, auger and reel drive

1шт.

24

FH449744

SHIELD

1шт.

25

FH449751

PIN - hinge

1шт.

26

FH449587

SHIELD - lower (Before 8373901)

1шт.

26

F37392

SHIELD - lower (8373901 and after)

1шт.

27

F36084

PLATE - cover (#8352501 and after)

1шт.

28

F35261

PLATE - wear (#8352501 and after)

1шт.

29

F35419

LATCH (8373901 and after)

1шт.

30

F35023

PIN (8373901 and after)

2шт.

31

FH758342

SPRING (8373901 and after)

2шт.
