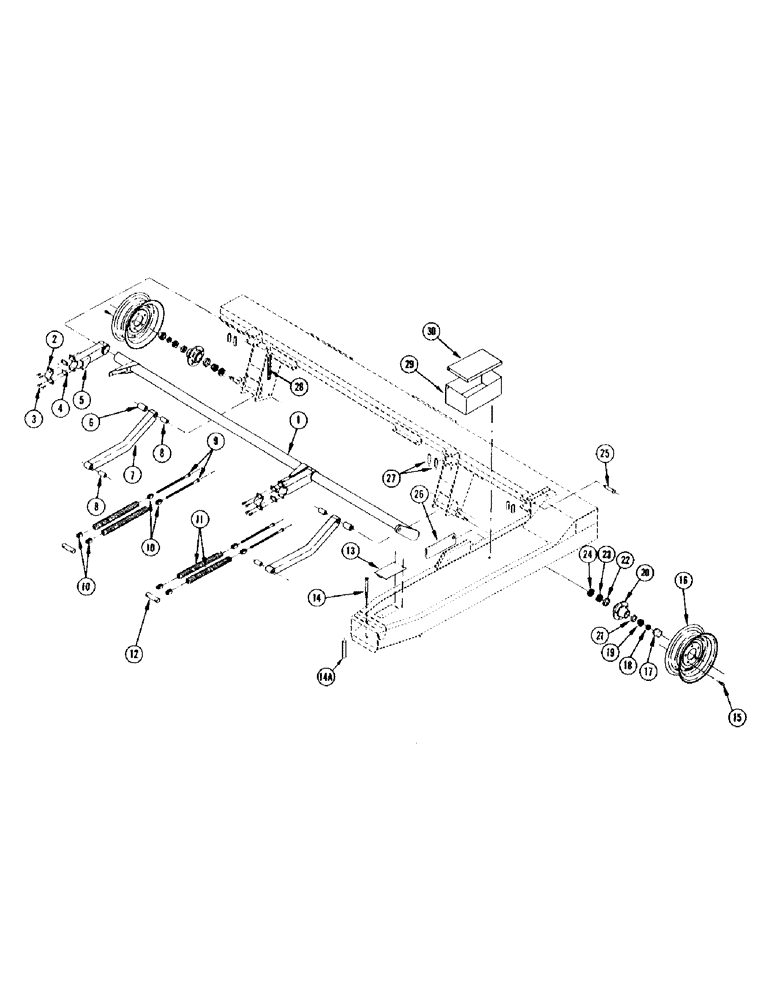

Запчасти Case IH 575 (04) - FLOTATION

1

FH459586

TORQUE TUBE

1шт.

2

FH427948

FLANGE (Replaced by F36685 when exhausted)

2шт.

2

F36685

FLANGE (Replaces FH427948 when exhausted)

2шт.

3

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk. gr. 5

8шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

8шт.

92-7

LOCK WASHER,7/16"

8шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

8шт.

4

FH428383

SHIM

4шт.

5

FH459578

ARM - lift, upper R.H.

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

6

FH428342

SPACER

2шт.

7

FH428136

ARM - lift, lower

2шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

13-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

25-1012

NUT,3/4"-10, G5

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

FH428359

SPACER

4шт.

9

FHO73668

BOLT - flotation spring

4шт.

10

FH378778

PLUG - spring

8шт.

11

FH758227

SPRING

- flotation

4шт.

12

FH428425

PIN - spring

2шт.

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

4шт.

95-12

WASHER,3/4"

- flat 3/4"

4шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex. jam

8шт.

13

FH428417

PLATE - cover

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

14

13-14128

BOLT,Hex, 7/8" - 9 x 8", Gr 5

- 7/8" x 8" N.C. hex.

1шт.

25-1014

NUT,7/8"-9, G5

2шт.

14a

F37388

SPACER - tongue bolt

1шт.

15

A31040

WHEEL BOLT,9/16" - 18 x 1 13/32", Gr 5

BOLT - wheel (Before 8373901)

10шт.

15

FHO26328

X

BOLT - wheel (8373901 and after)

12шт.

16

FHO26203

WHEEL

- (6.70 x 15 tire) (Before 8373901)

2шт.

16

F37385

WHEEL

- (9.50 x 15 tire) (#8373901 and after)

2шт.

17

FHO26260

X

CAP - hub (Before 8373901)

2шт.

17

F37377

CAP

- hub (#8373901 and after)

2шт.

18

129-270

NUT

- 1" N.F. slotted hex. - (Before 8373901)

2шт.

18

129-269

NUT - 7/8" N.F. slotted hex. (#8373901 and after)

2шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

19

FHO50112

BEARING

CONE - outer (Before 8373901)

2шт.

19

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer (8373901 and after)

2шт.

20

FH384347

HUB - wheel (Before 8373901)

2шт.

21

FHO50104

CUP

- outer

1шт.

22

G57451

BEARING, CUP

CUP - inner

1шт.

20

F37378

HUB

- wheel (8373901 and after)

2шт.

21

A30580

BEARING CUP

CUP - outer

1шт.

22

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner

1шт.

23

G57452

ROLLER BEARING

CONE - inner (Before 8373901)

2шт.

23

T33023

ROLLER BEARING

CONE - inner (8373901 and after)

2шт.

24

FHO44594

SEAL

(Before 8373901)

2шт.

24

F37383

SEAL

(8373901 and after)

2шт.

25

141-10

CLEVIS PIN,1" x 2.406"

PIN - clevis

1шт.

136-160

COTTER PIN,Int, 13/64" x .156"

COTTER - hair pin

1шт.

26

FH497131

SLIDER

1шт.

27

FH453241

SPACER

6шт.

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

6шт.

92-8

LOCK WASHER,1/2"

6шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

6шт.

28

FHO65656

HINGE (#8352501 and after)

2шт.

29

FH442376

TOOL BOX (#8352501 and after)

1шт.

30

FH497073

LID - toolbox (#8352501 and after)

1шт.
