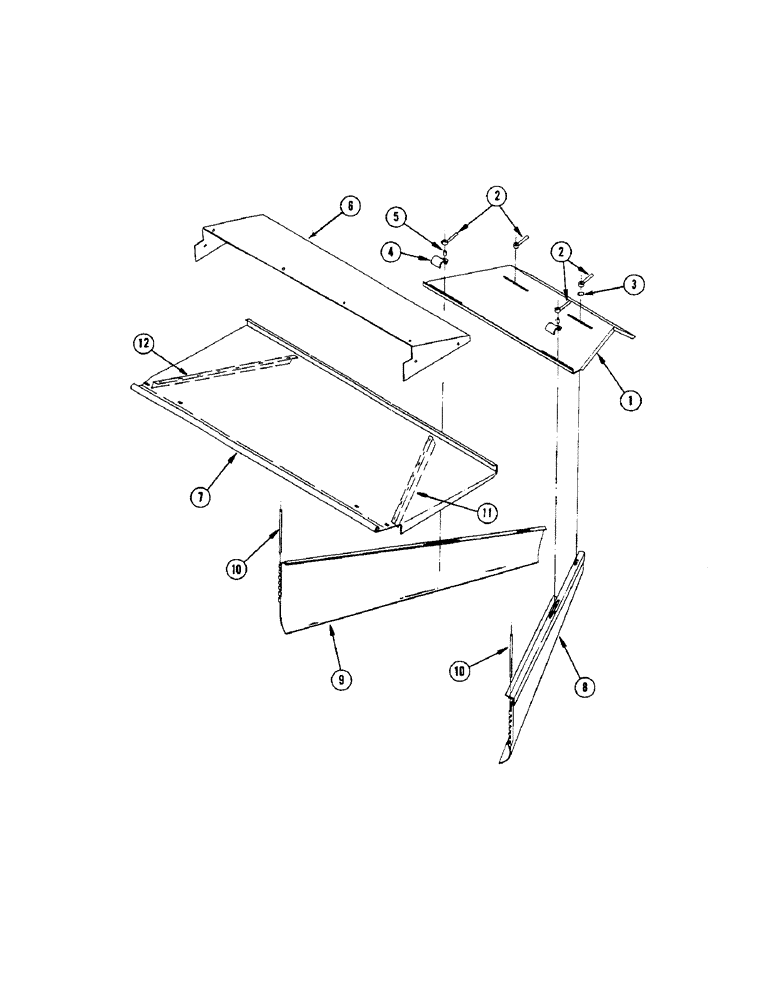

Запчасти Case IH 575 (24) - WINDROW FORMING SHIELDS

1

FH427153

DEFLECTOR - rear

1шт.

2

FHO66472

NUT - lever

4шт.

3

FH382069

WASHER

2шт.

4

FH451807

CLIP - deflector

2шт.

5

C3694S

SPACER

2шт.

6

FH449603

SUPPORT - top deflector

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

12шт.

7

FH449702

DEFLECTOR - top (Replaced by FH438283 when exhausted)

1шт.

FH438283

DEFLECTOR - top (Replaces FH449702 when exhausted)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

4шт.

8

FH428987

SHIELD - R.H. (Replaced by FH480285 when exhausted)

1шт.

FH480285

SHIELD - R.H. (Replaces FH428987 when exhausted)

1шт.

9

FH428995

SHIELD - L.H. (Replaced by FH480293 when exhausted)

1шт.

FH480293

SHIELD - L.H. (Replaces FH428995 when exhausted)

1шт.

11-552

BOLT

- 5/16" x 3-1/4" rhd. sq. nk.

2шт.

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

4шт.

10

FH429449

PIN - hinge

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

11

FH495119

SHINGLE - shield, L.H.

1шт.

12

FH495127

SHINGLE - shield, R.H.

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

14шт.

92-5

LOCK WASHER,5/16"

14шт.

95-5

WASHER,3/8" x 7/8" x .083"

- flat 5/16"

28шт.
