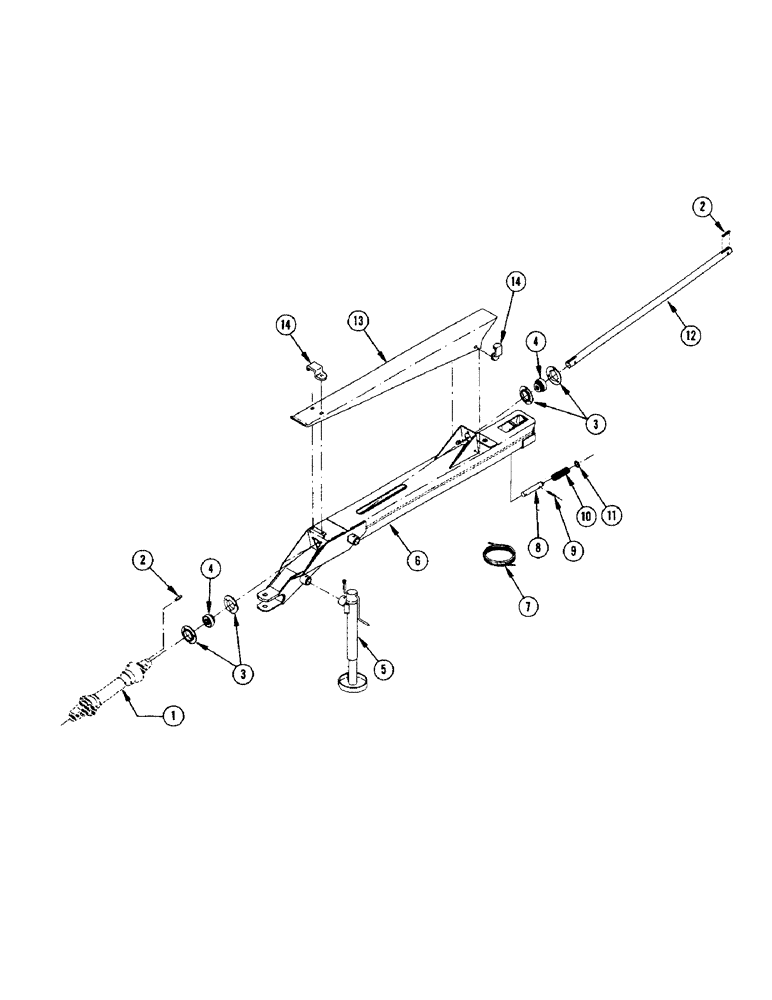

Запчасти Case IH 575 (18[A]) - TONGUE

1

FH755710

PTO SHAFT - front (Tr. end) (Before 8373901)

1шт.

1

F37394

PTO SHAFT - front (Tr. end) (8373901 and after)

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

2

FHO61549

KEY - straight

2шт.

3

FH712612

FLANGE

- bearing

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

4

F90485

BEARING ASSY

BEARING

2шт.

O4524B

COLLAR

1шт.

5

FH753046

HOIST

JACK (Before #8352501) (Replaced by FH845495 when exh.)

1шт.

5

FH845495

JACK (#8352501 and after) (Replaces FH753046 when exh.)

1шт.

6

FH727989

TONGUE (Before 8373901)

1шт.

6

F37393

TONGUE (8373901 and after)

1шт.

7

NSS

NOT SOLD SEPARAT

ROPE - pull, 5/16" nylon cord - 144"

1шт.

8

FH378596

PIN

- latch

1шт.

9

138-105

LOCK PIN,3/16" x 2 1/4", Slotted

PIN, LOCK, 3/16" x 2 1/4", Slotted

1шт.

10

FH758219

SPRING

1шт.

11

195-2091

WASHER,15/16" x 1 3/8" x .219"

1шт.

12

FH428557

SHAFT - drive (Before 8373901)

1шт.

12

F37419

SHAFT - drive (8373901 and after)

1шт.

13

FH428441

SHIELD (Before 8373901)

1шт.

13

F37390

SHIELD (8373901 and after)

1шт.

14

FH391052

CLAMP

2шт.
