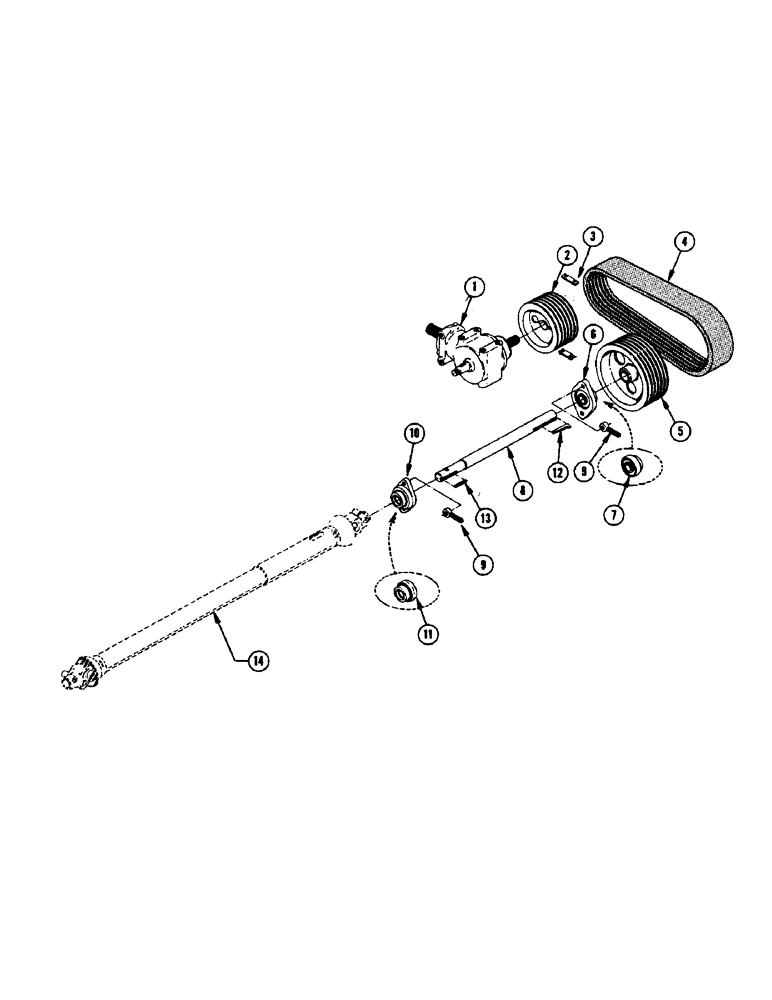

Запчасти Case IH 575 (16) - PRIMARY DRIVE

1

NSS

NOT SOLD SEPARAT

GEAR BOX - see page 22

1шт.

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

8шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

FH412932

SHEAVE - driven

1шт.

3

FH427146

STRAP

2шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex.

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

4

FHO57968

BELT - power band

1шт.

5

FH412924

SHEAVE - drive

1шт.

6

FH711911

FLANGE BEARING

1шт.

7

F84032

BEARING

1шт.

F62107

COLLAR

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

95-8

WASHER,1/2"

flat 1/2"

3шт.

8

FH429647

JACKSHAFT - PTO

1шт.

9

FH136085

BOLT - draw (Replaced by FH766287 when exh.)

2шт.

9

FH766287

SPECIAL BOLT

BOLT - draw (Replaces FH136085 when exh.)

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

10

FH429621

FLANGE BEARING

1шт.

11

F90485

BEARING ASSY

BEARING

1шт.

O4524B

COLLAR

1шт.

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.C. hex.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

95-8

WASHER,1/2"

flat 1/2"

3шт.

12

FHO61705

KEY - gib (Before #8352501)

1шт.

12

FH761304

KEY - gib (#8352501 and after)

1шт.

13

FHO61549

KEY - straight

1шт.

14

FH755728

PTO SHAFT - primary drive (See page 20)

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.
