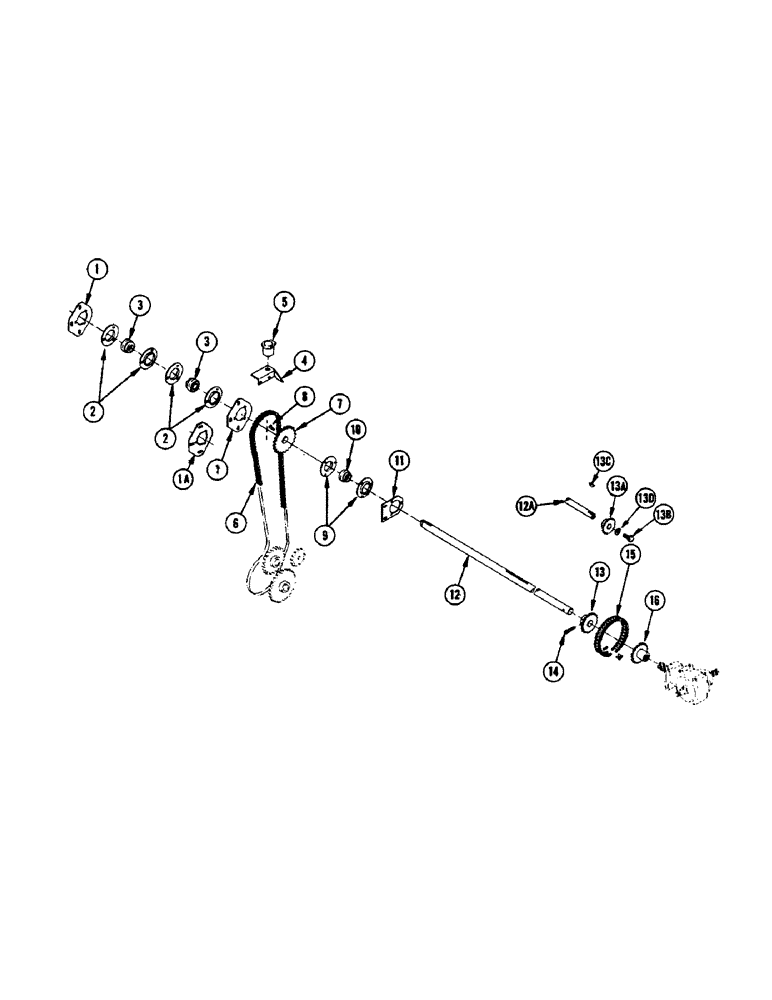

Запчасти Case IH 575 (16[A]) - SECONDARY DRIVE

1

FH429654

BRACKET (Before #8352501)

2шт.

1

FH429654

BRACKET (#8352501 and after)

1шт.

1a

FH494799

BRACKET (#8352501 and after)

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

6шт.

2

T27207

FLANGED BEARING

FLANGE - bearing

4шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

6шт.

3

K3315

BEARING ASSY

BEARING

2шт.

4

FH433011

BRACKET - oiler

1шт.

5

FH755223

CUP - oil

1шт.

6

FHO89250

CHAIN - hay conditioner drive (NSS - see chain page)

1шт.

7

FHO86553

SPROCKET (22T)

1шт.

8

FHO61622

KEY

- gib

1шт.

9

F62225

FLANGE

- bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

10

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

F62226

COLLAR

1шт.

11

FH288324

BRACKET

1шт.

11-612

BOLT

- 3/8" x 3/4" rhd. sq. nk.

2шт.

12

FH429597

JACKSHAFT (Before #8352501)

1шт.

12a

FH497024

JACKSHAFT (#8352501 and after)

1шт.

13

FH429605

SPROCKET (19T) (Before #8352501)

1шт.

13a

FH497008

SPROCKET (19T) (#8352501 and after)

1шт.

13b

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- 1/2" x 1" N.F. hex. (#8352501 and after)

1шт.

13c

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

(#8352501 and after) #15, 1/4" x 1", HT

1шт.

13d

F36738

WASHER - special

1шт.

14

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

SCREW - 7/16" x 2-1/4" N.C. hex. (Before #8352501)

1шт.

15

FHO88948

CHAIN - double roller

1шт.

16

FH433052

SPROCKET (19T) Splined

1шт.
