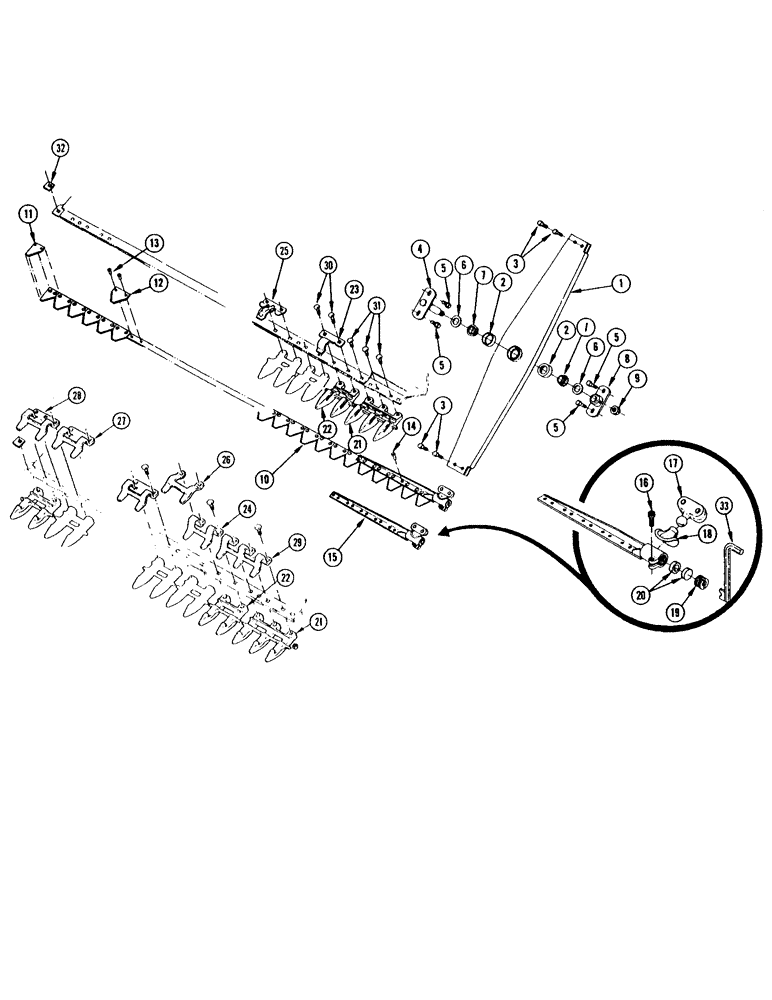

Запчасти Case IH 575 (12) - SICKLE AND SWAYBAR

1

FH429530

SWAY BAR

1шт.

2

FHO50104

CUP

2шт.

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 45 degrees

1шт.

3

FHO26450

BOLT

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

4

FH123216

PIN

- swaybar

1шт.

5

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F. hex.

4шт.

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

6

FH263764

WASHER

2шт.

7

FHO50112

BEARING

CONE - bearing

2шт.

8

FH123224

PLATE - reinforcing (Before 8373901)

1шт.

8

F35202

PLATE

- reinforcing (8373901 and after)

1шт.

85-812

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - 1/2" x 3/4" N.C. sq. hd. cup pt. set

1шт.

9

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. hex. slotted

1шт.

132-73

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

10

F36543

KNIFE ASSY

SICKLE - top serrated sections

1шт.

11

TF59129

CATALOG

SECTION - outer (half) smooth

1шт.

12

FHO49213

KNIFE SECTION

SECTION - top serrated

49шт.

13

T13489

RIVET

- #5-1/2 x 9/16 oval hd. pltd.

89шт.

14

T13492

RIVET

- #5-1/2 x 7/8 oval hd. pltd.

11шт.

15

F96374

HEAD - sickle

1шт.

16

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. socket hd. cap

1шт.

92-6

LOCK WASHER,3/8"

1шт.

17

FH338228

BALL

BLOCK - stud

1шт.

18

F23106

COVER

- dust

1шт.

19

FH264143

PLUG

- adjusting

1шт.

20

FH720458

BEARING

12шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" - 28 x 90 degrees

1шт.

F36335

KNIFE ASSY

SICKLE - smooth sections

1шт.

FHO48108

SECTION - sickle, smooth (Also includes ref. 11, 13, 14 and 15)

49шт.

21

FH429472

GUARD - triple (Before 8373901)

1шт.

21

F36571

GUARD - triple tie (8373901 and after)

1шт.

22

FHO49239

GUARD

- sickle, double (Before 8373901)

23шт.

22

FHO49270

GUARD

- double tie (8373901 and after)

23шт.

23

FH142984

HOLDER

CLIP - hi clearance (Before 8373901)

1шт.

24

F35006

TIE PLATE - hi clearance (8373901 and after)

2шт.

25

FH241216

CLIP

- hold down (Before 8373901)

14шт.

26

F35005

PLATE

TIE PLATE - regular (8373901 and after)

21шт.

27

F38123

PLATE

TIE PLATE - regular (8377601 & after)

20шт.

28

F38133

TIE PLATE - regular (8377601 & after) (Use w/F38123)

1шт.

29

F36522

TIE PLATE - triple

1шт.

30

111-402

CARRIAGE BOLT

BOLT - 7/16" x 1-1/2" rhd. sq. nk. gr. 5 (Before 8373901)

30шт.

30

111-402

CARRIAGE BOLT

BOLT - 7/16" x 1-1/2" rhd. sq. nk. gr. 5 (8373901 and after)

49шт.

31

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, (Before 8373901) Short NK, 7/16"-14 x 1 1/4", G5

19шт.

129-104

NUT,7/16"-14, G5

1шт.

32

FH429464

SPACER

1шт.

33

FH380360

OPEN END WRENCH

WRENCH - adjusting

1шт.
