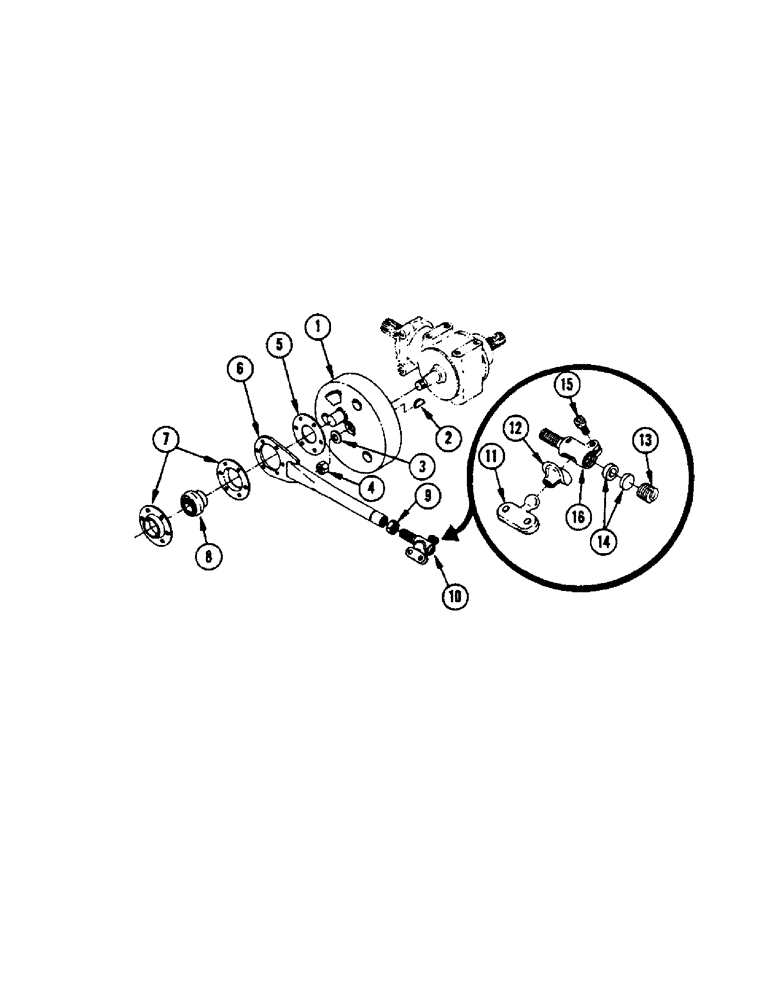

Запчасти Case IH 575 (11A) - SICKLE DRIVE AND PITMAN, BEFORE NUMBER 8352501

1

FH412940

FLYWHEEL - Pitman drive

1шт.

2

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

3

FH440321

WASHER

1шт.

4

131-59

LOCK NUT,3/4"-16

NUT - 3/4" N.F. hex.

1шт.

5

FH383349

STABILIZER - Pitman

1шт.

6

F35263

PITMAN

1шт.

7

FH711440

FLANGE - bearing

2шт.

8

F90485

BEARING ASSY

BEARING

1шт.

O4524B

COLLAR

1шт.

9

FHO74526

NUT - jam

1шт.

10

FH383588

HEAD

- Pitman

1шт.

11

FH338228

BALL

BLOCK - stud

1шт.

12

F23106

COVER

- dust

1шт.

13

FH264143

PLUG

1шт.

14

FH720458

BEARING

2шт.

15

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8" x 1" N.C. hex. socket hd. cap

1шт.

92-6

LOCK WASHER,3/8"

1шт.

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4" x 90 degrees

1шт.

16

FH383570

TUBE

1шт.
