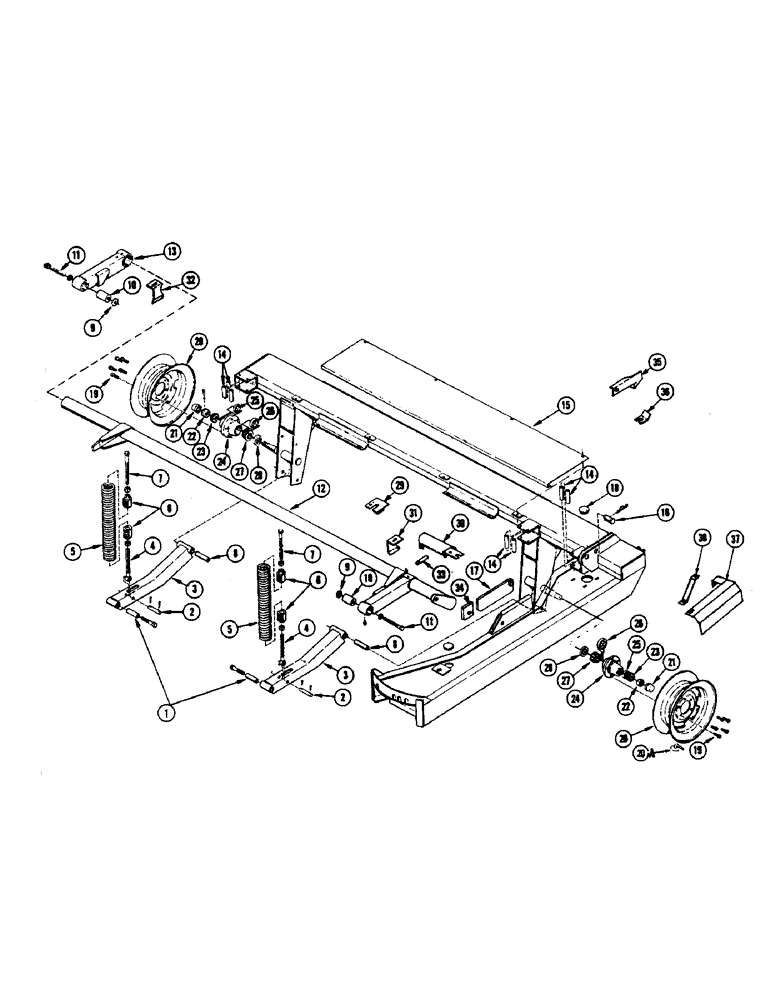

Запчасти Case IH 555 (06) - HEADER SUPPORT AND FLOTATION

NSS

NOT SOLD SEPARAT

MAIN FRAME

1шт.

1

FH452458

BUSHING - front

2шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

2

FH452466

PIN

2шт.

3

FH452953

LIFT ARM - lower

2шт.

4

FH452474

EYEBOLT

2шт.

5

FH758227

SPRING

2шт.

6

FH378778

PLUG

4шт.

7

FHO73882

BOLT - 3/4" x 9" w/7" thread

2шт.

95-12

WASHER,3/4"

- flat 3/4"

2шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex. jam

4шт.

8

FH452441

BUSHING - rear

2шт.

13-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- 3/4" x 6-1/2" N.C. hex.

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

9

FH452516

WASHER

2шт.

10

FH452433

PIVOT

2шт.

11

F35166

BOLT

2шт.

25-1014

NUT,7/8"-9, G5

2шт.

25-1414

NUT,Jam, 7/8"-9, G5

- 7/8" N.C. hex. jam

2шт.

95-14

WASHER,7/8"

- flat 7/8"

2шт.

12

F37091

TORQUE TUBE - (Model 475)

1шт.

12

FH452912

TORQUE TUBE - (Model 555) Before 8373901

1шт.

12

F36789

TORQUE TUBE - (Model 555) 8373901 and after

1шт.

13

FH452888

ARM - R.H. lift, upper

1шт.

14

FH453241

SPACER

6шт.

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

6шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

6шт.

15

FH453969

COVER - torque tube (Model 555)

1шт.

15

F37083

COVER - torque tube (Model 475)

1шт.

16

141-10

CLEVIS PIN,1" x 2.406"

PIN - clevis 1" x 2-1/2"

1шт.

136-160

COTTER PIN,Int, 13/64" x .156"

COTTER - hair pin

1шт.

17

FH497131

SLIDER

1шт.

18

FH845396

PLUG - exhaust then use FH751701

2шт.

18

FH751701

PLUG - replaces FH845396 when stock exhausted

2шт.

19

A31040

WHEEL BOLT,9/16" - 18 x 1 13/32", Gr 5

BOLT - wheel (Before serial No. 8367501)

10шт.

19

FHO26328

X

BOLT - wheel (Serial No. 8367501 and after)

10шт.

20

FHO26203

WHEEL

- (For 5.90 X 15 tires)

2шт.

20a

A38261

VALVE

STEM - valve

2шт.

21

T27814

CAP

- hub

2шт.

22

129-270

NUT

- 1" N.F. slotted hex.

2шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

23

FHO50112

BEARING

CONE - bearing, outer

2шт.

24

FH384347

HUB - wheel

2шт.

25

FHO50104

CUP

- bearing, outer

1шт.

26

G57451

BEARING, CUP

CUP - bearing, inner

1шт.

27

G57452

ROLLER BEARING

CONE - bearing, inner

2шт.

28

FHO44594

SEAL

2шт.

29

F35148

BRACKET - (Before 8373901)

1шт.

30

F35145

SLEEVE - (Before 8373901)

1шт.

31

F35146

BRACKET - (Before 8373901 & 8377601 and after)

1шт.

32

F35147

BRACKET - (Before 8373901 & 8377601 and after)

1шт.

33

O1821L

SPACER - (Before 8373901)

1шт.

34

F35164

STOP - slider (#8352501 and after)

1шт.

13-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5, Full Thd

1шт.

25-1016

NUT,1"-8, G5

1шт.

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

35

FH497156

PLATE - wear (#8342101 to 8342500) (Mod. kit)

1шт.

36

FH497230

STOP - (#8342101 to 8342500) (Mod. kit)

1шт.

37

F35403

FENDER - (#8352501 and after)

1шт.

38

F35406

BRACE - fender (#8352501 and after)

1шт.
