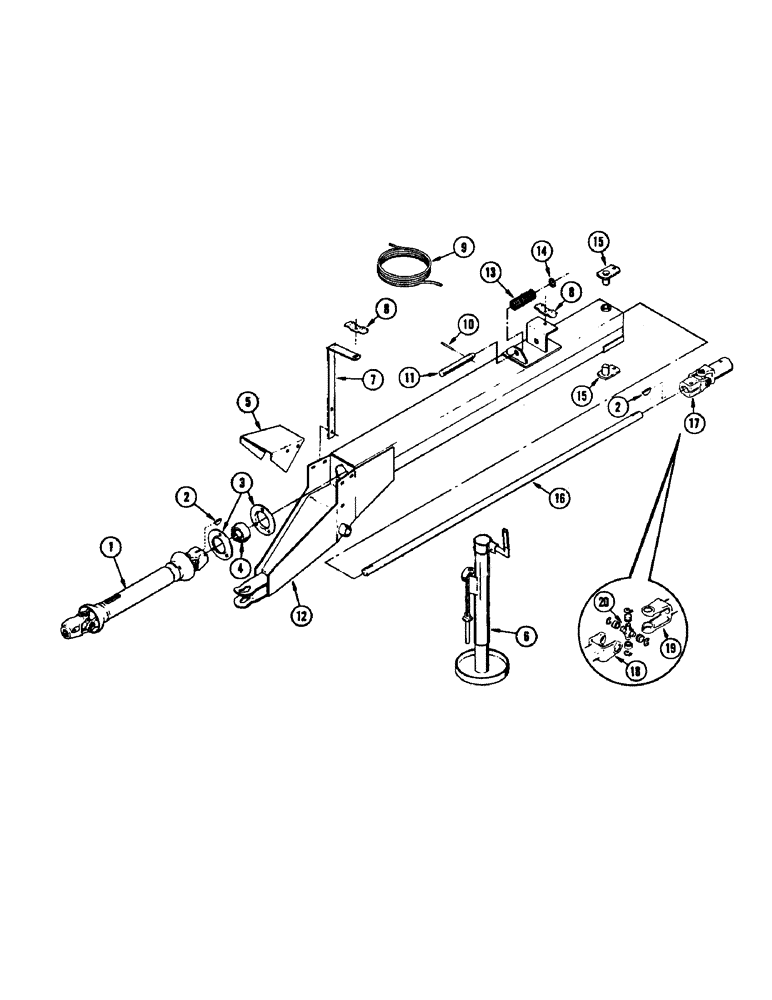

Запчасти Case IH 555 (05C) - TONGUE, NUMBER 8367501 AND AFTER

1

F37078

JOINT

SHAFT - PTO front (Model 475)

1шт.

1

F36139

YOKE

SHAFT - PTO front (Model 555)

1шт.

2

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

3

FH712612

FLANGE

- bearing

2шт.

4

K3315

BEARING ASSY

BEARING - (Model 475)

1шт.

B18329

COLLAR ASSY.

COLLAR - (Model 475)

1шт.

4

F90485

BEARING ASSY

BEARING - (Model 555)

1шт.

O4524B

COLLAR

- (Model 555)

1шт.

5

FH451617

SHIELD - PTO

1шт.

6

FH845495

JACK - lift

1шт.

7

FH451658

BRACKET - hose support

1шт.

8

FH451641

CLAMP

- hose

2шт.

9

NSS

NOT SOLD SEPARAT

ROPE - 5/16" sash cord x 12 ft.

1шт.

10

138-105

LOCK PIN,3/16" x 2 1/4", Slotted

PIN, LOCK, 3/16" x 2 1/4", Slotted

1шт.

11

FH378596

PIN

- lock

1шт.

12

FH451666

TONGUE - (Model 475)

1шт.

12

F36125

TONGUE - (Model 555)

1шт.

13

FH758219

SPRING

- pin

1шт.

14

195-2091

WASHER,15/16" x 1 3/8" x .219"

1шт.

15

FH451831

PIN - pivot

2шт.

16

FH451633

SHAFT - (Model 475)

1шт.

16

F36128

NUT

SHAFT - (Model 555)

1шт.

17

F36809

GASKET

U-JOINT - (Model 475)

1шт.

17

F36792

YOKE

U-JOINT - (Model 555)

1шт.

18

FH845057

YOKE - clamp (Model 475)

1шт.

18

F36610

YOKE - clamp (Model 555)

1шт.

19

F36810

YOKE

- splined

1шт.

20

FH756924

KIT - center cross repair

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" x N.C. hex.

2шт.
