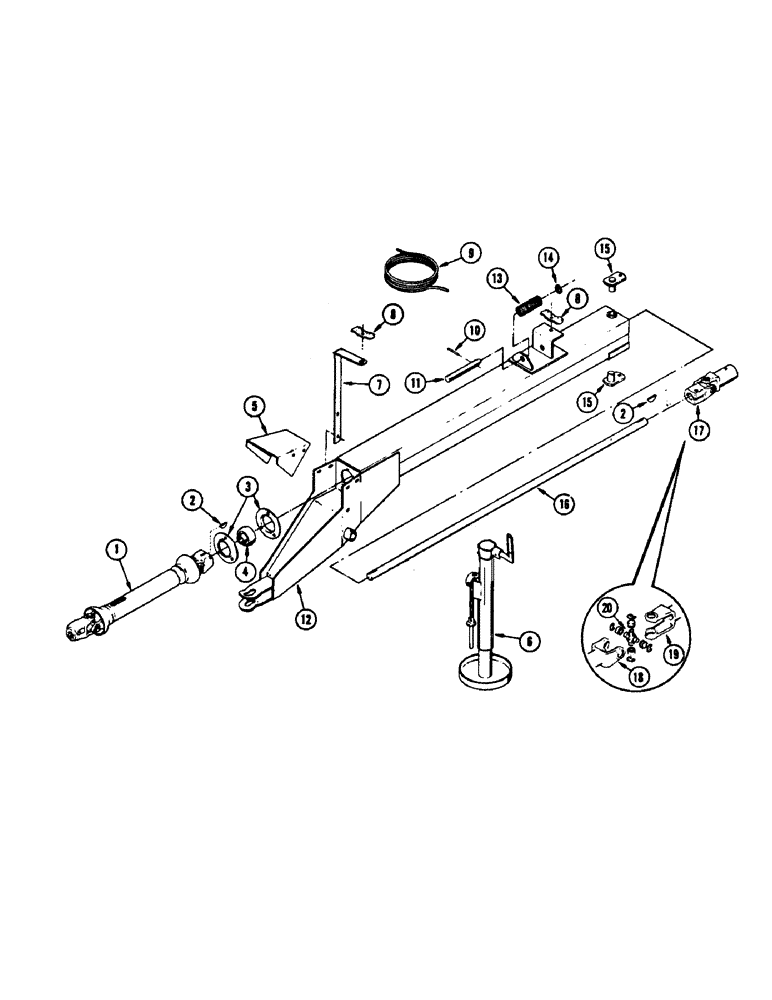

Запчасти Case IH 475 (05A) - TONGUE, NUMBER 8352501 TO 8367501

1

F35162

SHAFT - PTO front

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

2

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

3

FH712612

FLANGE

- bearing

2шт.

4

K3315

BEARING ASSY

BEARING

1шт.

B18329

COLLAR ASSY.

COLLAR

1шт.

5

FH451617

SHIELD - PTO

1шт.

6

FH845495

JACK - lift

1шт.

7

FH451658

BRACKET - hose support

1шт.

8

FH451641

CLAMP

- hose

2шт.

9

NSS

NOT SOLD SEPARAT

ROPE - 5/16" nylon cord x 10 ft.

1шт.

10

138-105

LOCK PIN,3/16" x 2 1/4", Slotted

PIN, LOCK, 3/16" x 2 1/4", Slotted

1шт.

11

FH378596

PIN

- locking

1шт.

12

FH451666

TONGUE

1шт.

13

FH758219

SPRING

- locking pin

1шт.

14

195-2091

WASHER,15/16" x 1 3/8" x .219"

1шт.

15

FH451831

PIN - pivot

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

FH451633

SHAFT

1шт.

17

FH845594

GASKET

UNIVERSAL JOINT

1шт.

18

FH845057

YOKE - clamp

1шт.

19

F35416

YOKE

- splined

1шт.

20

FH756924

KIT - center cross repair

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.
