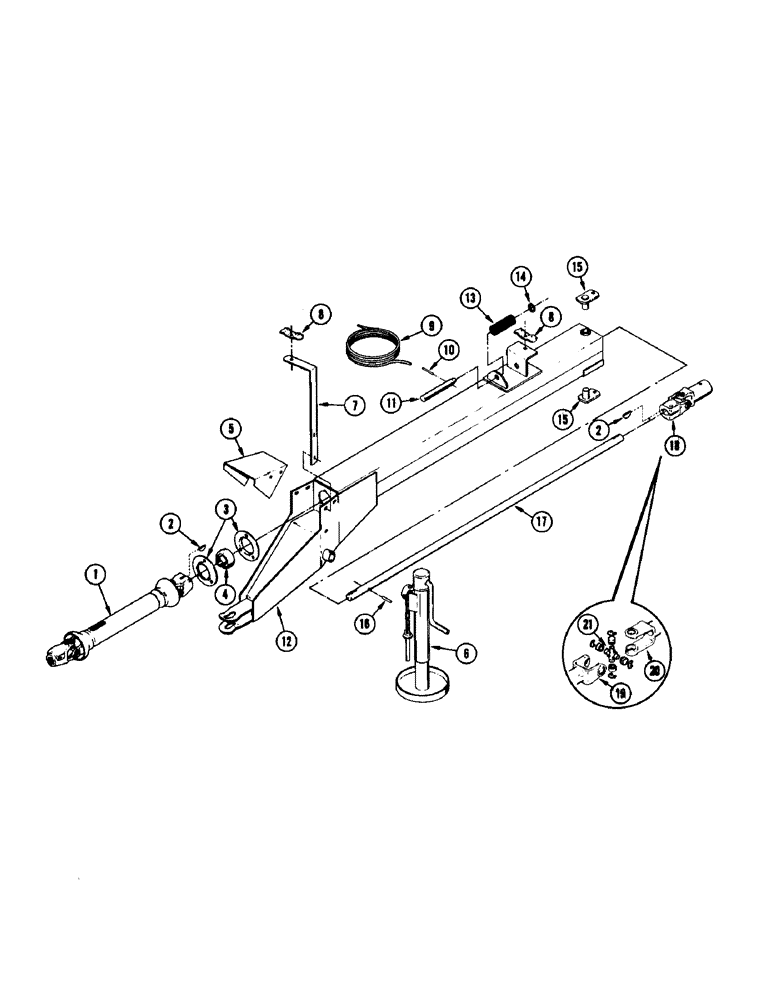

Запчасти Case IH 475 (04) - TONGUE, BEFORE NUMBER 8352501

1

FH757112

SHAFT - PTO (Replaced by F35162 when exhausted)

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

2

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

3

FH712612

FLANGE

- bearing

2шт.

4

K3315

BEARING ASSY

BEARING

1шт.

B18329

COLLAR ASSY.

COLLAR

1шт.

5

FH451617

SHIELD

1шт.

6

FH753046

HOIST

JACK - (Replaced by FH845495 when exhausted)

1шт.

7

FH451658

BRACKET - hose

1шт.

8

FH451641

CLAMP

- hose

2шт.

9

NSS

NOT SOLD SEPARAT

ROPE - 5/16" nylon cord x 10 ft.

1шт.

10

138-105

LOCK PIN,3/16" x 2 1/4", Slotted

PIN, LOCK, 3/16" x 2 1/4", Slotted

1шт.

11

FH378596

PIN

- locking

1шт.

12

FH451666

TONGUE

1шт.

13

FH758219

SPRING

- locking pin

1шт.

14

195-2091

WASHER,15/16" x 1 3/8" x .219"

1шт.

15

FH451831

PIN - pivot

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

17

FH451633

SHAFT

1шт.

18

FH757161

U-JOINT - (Replaced by FH845594 when exhausted)

1шт.

19

FH845024

YOKE

- clamp

1шт.

20

FH845016

YOKE - splined

1шт.

21

FH845032

KIT - center cross repair

1шт.

NSS

NOT SOLD SEPARAT

CROSS - center

1шт.

NSS

NOT SOLD SEPARAT

CUP - needle

4шт.

NSS

NOT SOLD SEPARAT

SNAP RING

4шт.

NSS

NOT SOLD SEPARAT

WASHER - cork

4шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease 1/8" P.T. x 67-1/2 degrees

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.
