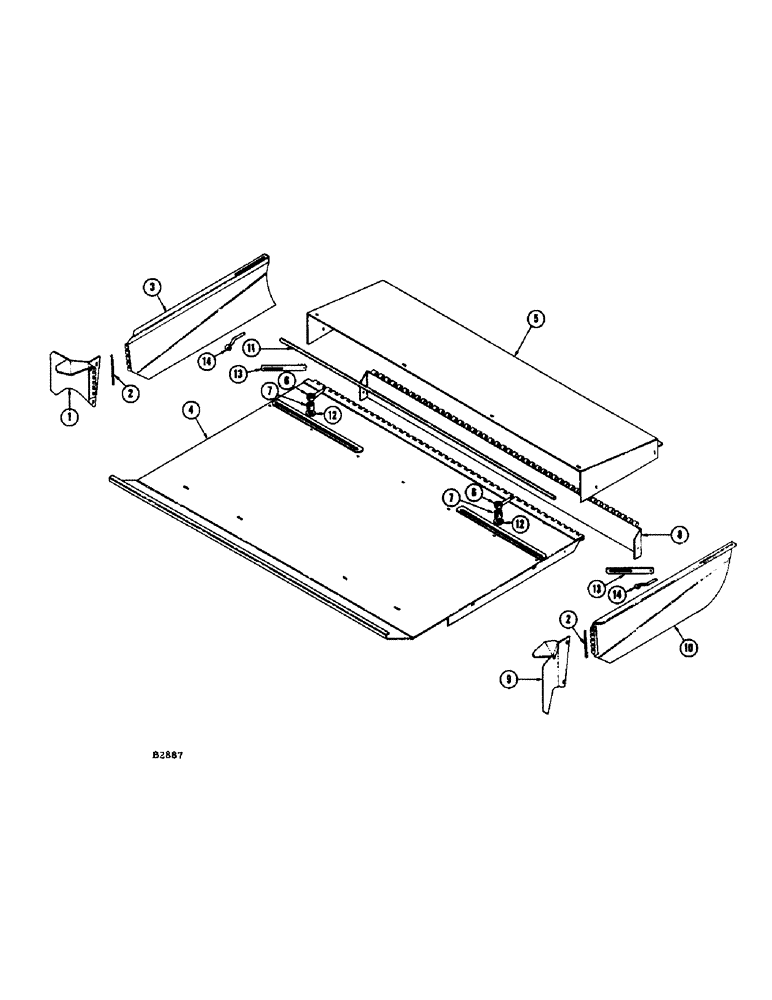

Запчасти Case IH 475 (23A) - WINDROW FORMING SHIELDS, SERIAL NUMBER 8367501 AND AFTER

1

F36365

DEFLECTOR - R.H.

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

2

FH451419

PIN

2шт.

3

F36366

NUT

SHIELD - R.H. forming

1шт.

4

F37088

DEFLECTOR - top (Model 475)

1шт.

4

F36362

NUT

DEFLECTOR - top (Model 555)

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

12шт.

5

F37092

SUPPORT - top deflector (Model 475)

1шт.

5

F36368

NUT

SUPPORT - top deflector (555 before S/N 8377601)

1шт.

5

F38201

SUPPORT - top deflector (555 S/N 8377601 & after)

1шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

8шт.

111-202

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

7шт.

6

FHO66472

LEVER - (Before 8373901)

2шт.

6

F36992

LEVER - (8373901 and after)

2шт.

7

C3694S

SPACER

2шт.

8

F37080

DEFLECTOR - rear (Model 475)

1шт.

8

F36363

DEFLECTOR - rear (555 before S/N 8377601)

1шт.

8

F38213

DEFLECTOR - rear (555 S/N 8377601 & after)

1шт.

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

2шт.

111-223

CARRIAGE BOLT,Short NK, 5/16"-18 x 3 1/4", G2

BOLT - carriage, 5/16" x 3-1/4"

2шт.

195-103

WASHER,5/16"

- flat, 5/16"

2шт.

9

F36360

NUT

DEFLECTOR - L.H.

1шт.

10

F36367

SHIELD - L.H. forming

1шт.

11

F37077

PIN - hinge (Model 475)

1шт.

11

F36364

NUT

PIN - hinge (Model 555)

1шт.

12

F36372

NUT

WASHER

2шт.

13

F36371

STRAP - adj.

2шт.

111-132

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - carriage, 5/16" x 3/4" N.C.

7шт.

111-366

BOLT,Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

- carriage, 3/8" x 1-1/4" N.C.

2шт.

14

FHO66423

LEVER -, Serial Range: (8367501-8373900)

2шт.

14

F36799

HANDLE - (8373901 and after)

2шт.
