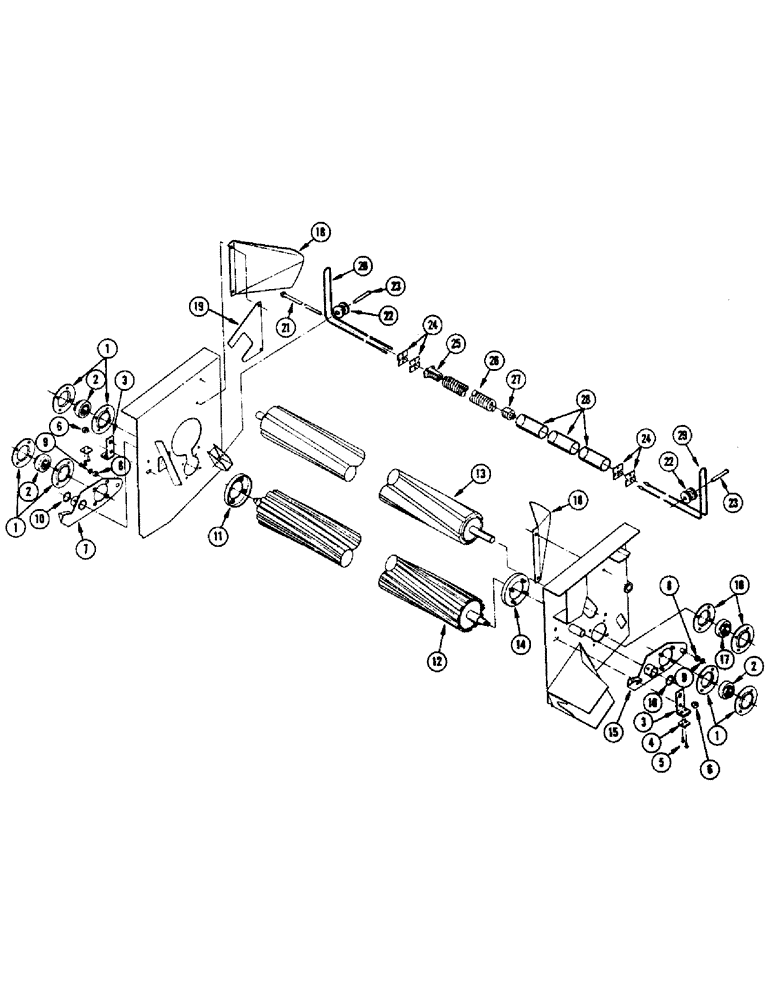

Запчасти Case IH 475 (20) - HAY CONDITIONER, BEFORE NUMBER 8352501

1

F8944

FLANGE

6шт.

2

F77924

BEARING

3шт.

F62107

COLLAR

1шт.

3

FH497107

STOP - pivot (Replaced by F35017 when exhausted)

1шт.

3

F35017

STOP - pivot (Replaces FH497107 when exhausted)

1шт.

4

FHO27581

PAD

1шт.

5

FHO64014

RIVET

2шт.

11-628

BOLT,Short NK, 3/8"-16 x 1 3/4", G2

- 3/8" x 1-3/4" rhd. sq. nk.

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" rhd. sq. nk.

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

95-8

WASHER,1/2"

flat 1/2"

2шт.

6

FH298158

NUT - adjusting

2шт.

7

FH453514

PLATE - pivot R.H.

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease 1/4"-28 x 90 degrees

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

8

H1521S

BUSHING

SPACER

2шт.

9

FHO52761

BUSHING

2шт.

10

FHO52282

BUSHING

2шт.

11

FH453282

RING - grass R.H.

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

92-8

LOCK WASHER,1/2"

4шт.

12

FH453415

ROLL - steel (Replaced by F35157 when exhausted)

1шт.

13

FH727347

ROLL - conditioner, rubber

1шт.

14

FH453266

RING - grass L.H.

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

15

FH453506

PLATE - pivot L.H.

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4"-28

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

92-8

LOCK WASHER,1/2"

4шт.

16

FHO50583

FLANGE

2шт.

17

FHO51318

NO LONGER SERVICED

BEARING

1шт.

F59131

COLLAR

1шт.

18

FH453340

DEFLECTOR

- side (Exhaust then use F36361)

2шт.

18

F36361

DEFLECTOR

- side

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

19

FH453738

COVER

1шт.

20

FH453381

CABLE - draw R.H.

1шт.

21

FH453407

BOLT - tension adjusting

1шт.

22

FH451336

PULLEY

2шт.

23

FH763227

PIN

2шт.

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

2шт.

24

FH453563

CLAMP

4шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

92-5

LOCK WASHER,5/16"

2шт.

25

FH451328

PLUG - spring

1шт.

26

FH758391

SPRING - tension

1шт.

27

FH299230

PLUG

- spring

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex. jam

2шт.

28

FH727537

TUBE - rubber

3шт.

29

FH453357

CABLE - draw L.H.

1шт.
