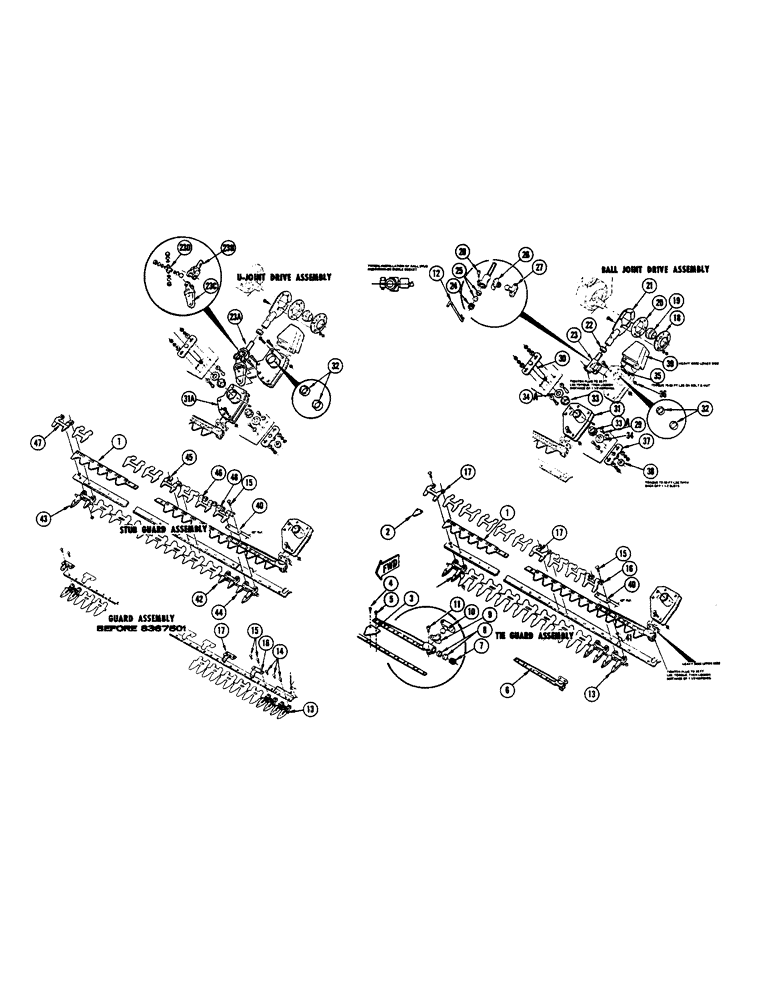

Запчасти Case IH 475 (18) - SICKLE AND SICKLE DRIVE

1

F37079

SICKLE - top serrated (Model 475)

1шт.

1

F36212

TOOL

SICKLE - top serrated (Model 555)

1шт.

2

TF59129

CATALOG

SECTION - half

1шт.

3

FHO49213

KNIFE SECTION

SECTION - top serrated (30-475, 38-555)

1шт.

4

T13489

RIVET

- 5-1/2 x 9/16 O.H. (51-475, 67-555)

1шт.

5

T13492

RIVET

- 5-1/2 x 7/8 O.H.

11шт.

6

F96391

HEAD

ASSEMBLY - sickle

1шт.

7

FH264143

PLUG

1шт.

8

FH741512

BEARING

2шт.

9

F23106

COVER

CAP - dust

1шт.

10

FH451310

BALL

STUD BLOCK

1шт.

11

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8 x 1" N.C. hex. socket hd. cap

1шт.

F36894

SICKLE - smooth sections (Model 475)

1шт.

F36762

SICKLE - smooth sections (Model 555)

1шт.

FHO48108

SECTION - smooth (30-475, 38-555) Incl. 2, 4, 5 & 6)

1шт.

12

FH380360

OPEN END WRENCH

WRENCH - adjustment

1шт.

13

FHO49239

GUARD

- sickle (Before #8367501)

19шт.

13

FHO49270

GUARD

- double tie (8367501 and after) (15-475, 19-555)

1шт.

14

111-400

BOLT

- 7/16 x 1-1/4" rhd. sq. nk. gr. 5 (Before 8367501)

14шт.

15

111-402

CARRIAGE BOLT

BOLT - 7/16 x 1-1/2" rhd. sq. nk. gr. 5 (Before 8367501)

24шт.

15

111-402

CARRIAGE BOLT

BOLT - (#8367501 and after) (30-475, 38-555)

1шт.

16

FH142984

HOLDER

CLIP - hold down, hi-clearance (Before 8367501)

1шт.

16

F35006

TIE PLATE - hi-clearance (8367501 and after)

3шт.

17

FH380592

CLIP - hold-down (Before 8367501)

11шт.

17

F35005

PLATE

TIE PLATE - regular (8367501 and after) (12-475, 16-555)

1шт.

18

FH712620

FLANGE

- w/grease fitting

1шт.

19

FH712315

BEARING

- w/04524B collar

1шт.

20

FH712612

FLANGE

FALNGE

1шт.

21

FH452011

PITMAN

1шт.

22

FHO74526

NUT - hex jam

1шт.

23

F35156

HEAD

- Pitman, ball joint drive (Before S/N 8373901)

1шт.

24

FH264143

PLUG

1шт.

25

FH741512

BEARING

2шт.

26

F23106

COVER

CAP - dust

1шт.

27

FH451310

BALL

STUD BLOCK

1шт.

28

61-616

HEX SOC SCREW,3/8"-16 x 1"

SCREW - 3/8 x 1" N.C. hex. socket hd.

1шт.

23a

F37832

U-JOINT - Pitman (475-S/N 8377601 and after) (555-S/N 8373901 and after)

1шт.

23b

F37834

YOKE - threaded

1шт.

23c

F37833

YOKE - mounting

1шт.

23d

FH757443

KIT

- journal

1шт.

29

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2 x 1-1/4" N.F. hex.

4шт.

30

FH451864

PIN

1шт.

31

FH451914

CRANK - Pitman (Used with balljoint drive)

1шт.

31a

F37923

CRANK - Pitman (Used with U-joint drive)

1шт.

32

FHO50104

CUP

- bearing

2шт.

33

FHO50112

BEARING

CONE - bearing (Before S/N 8377601 - 2 used)

1шт.

33a

F37926

BEARING

CONE - bearing (S/N 8377601 and after)

1шт.

34

FH263764

WASHER

- (Befroe S/N 8377601 - 2 used)

1шт.

34a

F38154

SHIELD

- (S/N 8377601 and after)

1шт.

35

FHO26450

BOLT

6шт.

36

N4221

WHEEL NUT

6шт.

37

F35202

PLATE

- reinforcement

1шт.

38

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" N.F. hex. slotted

1шт.

39

FH451351

WEIGHT

1шт.

40

F36131

SHIM

- (#8367501 and after)

1шт.

41

92-8

LOCK WASHER,1/2"

(#8367501 and after) 1/2"

1шт.

42

F63784

SHIM

GUARD - stub double tie (13-475, 17-555)

1шт.

43

F37827

GUARD

- stub double tie, R.H

1шт.

44

F37826

GUARD

- stub double tie, L.H.

1шт.

45

F36785

TIE PLATE - stub, regular (11-475, 15-555)

1шт.

46

F36786

TIE PLATE - stub, hi-clearance

2шт.

47

F37829

TIE PLATE - stub, R.H.

1шт.

48

F37828

TIE PLATE - stub, L.H. hi-clearance

1шт.
