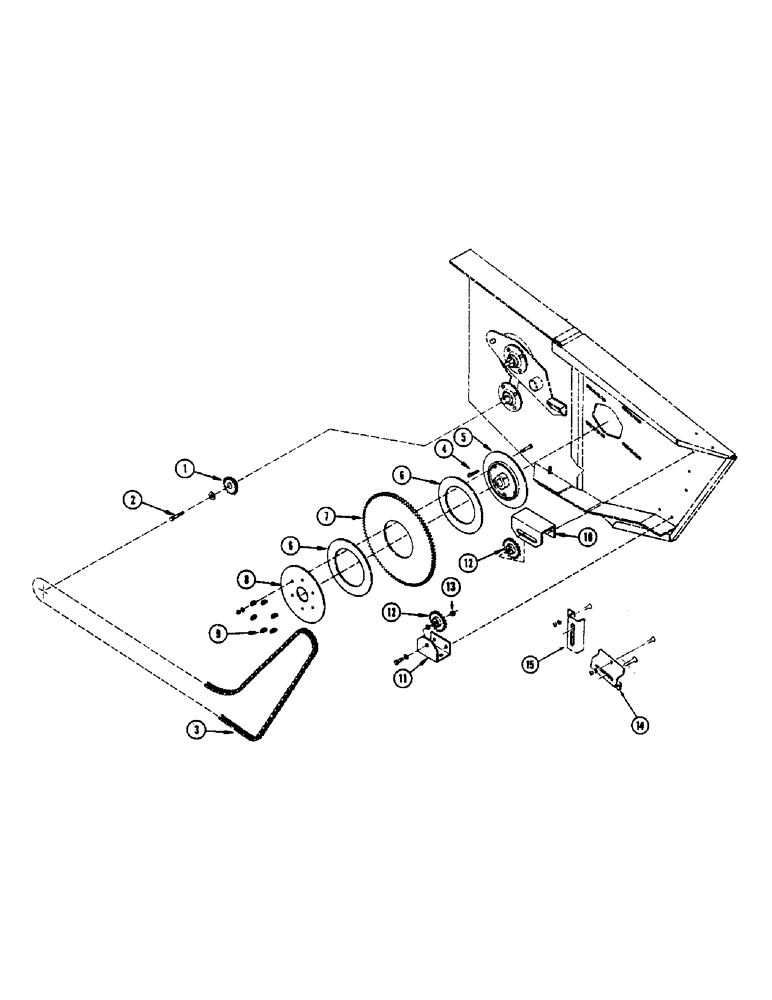

Запчасти Case IH 475 (14) - SECONDARY DRIVE

1

FHO89664

SPROCKET - (12T)

1шт.

FHO89680

SPROCKET ASSY.

SPROCKET - (10T)

1шт.

2

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

3

FHO89565

CHAIN - secondary drive (See chain page) (Before S/N 8377601)

1шт.

3

F38159

CHAIN - secondary drive (See chain page) (S/N 8377601 & after)

1шт.

4

FHO61952

KEY

1шт.

5

FH451385

PLATE - clutch

1шт.

11-632

BOLT,Short NK, 3/8"-16 x 2", G2

- 3/8" x 2" rhd. sq. nk.

6шт.

131-179

LOCK NUT,3/8"-16, GA

NUT - 3/8" Gripco lock

6шт.

6

FHO27565

DISC

2шт.

7

FHO89656

SPROCKET - (96T)

1шт.

8

FH451559

PLATE - clutch

1шт.

9

FHO58883

SPRING

- compression

6шт.

10

FH451575

SUPPORT - (Before S/N 8377601)

1шт.

11

FH451583

SUPPORT - (Before S/N 8377601)

1шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

12

F7935

SPROCKET ASSY.

SPROCKET - idler

2шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

13

FHO52233

BUSHING - mach. 5/8" x 14 ga.

1шт.

14

F38160

BRACKET - idler (S/N 8377601 and after)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

11-1032

X,Short NK, 5/8"-11 x 2", G2

BOLT - 5/8" x 2" rhd. sq. nk.

1шт.

15

F38177

BRACKET - idler (S/N 8377601 and after)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

11-1032

X,Short NK, 5/8"-11 x 2", G2

BOLT - 5/8" x 2" rhd. sq. nk.

1шт.

B17152

DECAL KIT DECALS - BEFORE 8367501

1шт.

321-8

DECAL

EAGLE DECALS - BEFORE 8367501

1шт.

321-11

TRADEMARK DECALS - BEFORE 8367501

1шт.

321-1633

BE CAREFUL DECALS - BEFORE 8367501

2шт.

321-838

PATENTS DECALS - BEFORE 8367501

1шт.

321-979

TIRE PRESSURE DECALS - BEFORE 8367501

2шт.

321-983

J. I. CASE CO. DECALS - BEFORE 8367501

1шт.

321-1158

CASE 555 DECALS - BEFORE 8367501

1шт.

321-1159

CASE 555 DECALS - BEFORE 8367501

1шт.

321-1167

CASE DECALS - BEFORE 8367501

1шт.

321-1173

INSTRUCTIONS DECALS - BEFORE 8367501

1шт.

321-1177

DANGER DO NOT RIDE ON MACHINE DECALS - BEFORE 8367501

2шт.

321-1179

WARNING DECALS - BEFORE 8367501

1шт.

F36895

DECAL KIT - Model 475 DECALS- 8367501 AND AFTER

1шт.

F35778

DECAL KIT - Model 555 DECALS - 8367501 AND AFTER

1шт.

321-838

PATENTS DECALS - 8367501 AND AFTER

1шт.

321-1088

DECAL - caution DECALS - 8367501 AND AFTER

1шт.

321-1173

INSTRUCTIONS DECALS - 8367501 AND AFTER

1шт.

321-1177

DANGER - do not ride on machine DECALS - 8367501 AND AFTER

2шт.

321-1179

WARNING DECALS - 8367501 AND AFTER

1шт.

321-1325

DECAL - tire pressure DECALS - 8367501 AND AFTER

2шт.

321-1352

DECAL - lube DECALS - 8367501 AND AFTER

1шт.

321-1353

DECAL DECALS - 8367501 AND AFTER

1шт.

321-1426

DECAL - Case DECALS - 8367501 AND AFTER

2шт.

321-1428

DECAL - Case DECALS - 8367501 AND AFTER

1шт.

321-1490

DECAL - 555 DECALS - 8367501 AND AFTER

2шт.

321-1633

BE CAREFUL DECALS - 8367501 AND AFTER

2шт.

DECAL - caution DECALS - 8367501 AND AFTER

1шт.

321-1777

DECAL - 475 DECALS - 8367501 AND AFTER

2шт.
