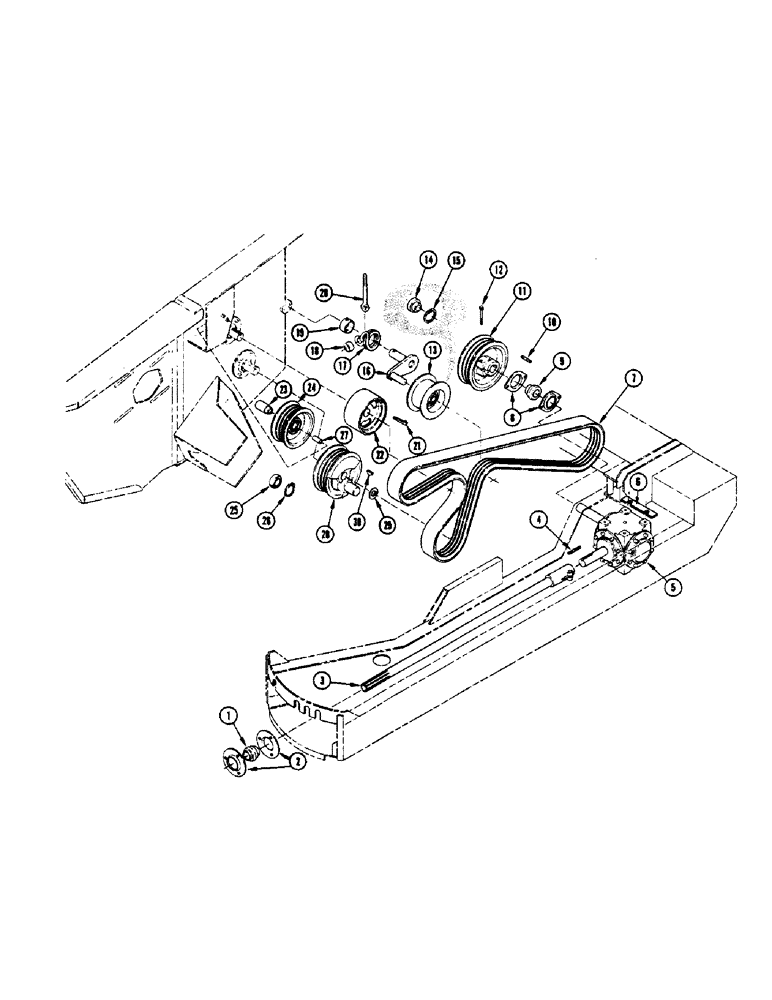

Запчасти Case IH 475 (12) - PRIMARY DRIVE, BEFORE NUMBER 8352501

1

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

F62226

COLLAR

1шт.

2

F62225

FLANGE

- bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

92-6

LOCK WASHER,3/8"

3шт.

3

FH451427

SHAFT - drive

1шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

4

O5528N

KEY

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR BOX - (See page 16)

1шт.

6

F35415

SHIM

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

92-8

LOCK WASHER,1/2"

4шт.

95-8

WASHER,1/2"

flat 1/2"

4шт.

7

FH855122

BELT

Power Band

1шт.

8

FH710293

FLANGE - bearing

2шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

92-6

LOCK WASHER,3/8"

2шт.

9

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

F62226

COLLAR

1шт.

10

O5528N

KEY

1шт.

11

F451377

SHEAVE

1шт.

12

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8" x 2-3/4" N.C. hex.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

92-6

LOCK WASHER,3/8"

1шт.

13

FH451500

IDLER

1шт.

14

K4334

BEARING

1шт.

F62108

COLLAR

1шт.

15

A31078

SNAP RING,2.062", Int, #206

1шт.

16

FH451450

ARM

1шт.

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease 1/4" - 28 str.

1шт.

17

FH758417

SPRING - torsion

1шт.

18

T25681

SPACER

1шт.

19

K2643

SPACER

1шт.

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

95-8

WASHER,1/2"

flat 1/2"

1шт.

20

FH231373

BOLT

DRAWBOLT - (Replaced by FH766295 when exhausted)

1шт.

20

FH766295

BOLT

DRAWBOLT - (Replaces FH231373 when exhausted)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

21

FHO61564

KEY

- gib

1шт.

22

FH451401

PULLEY

1шт.

23

FH451492

JOURNAL - bearing

1шт.

111-605

BOLT - 5/8" x 5" rhd. sq. nk.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

FH451518

IDLER

1шт.

25

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING

1шт.

26

A31078

SNAP RING,2.062", Int, #206

1шт.

27

FH451542

SPACER

1шт.

28

FH451369

SHEAVE

1шт.

29

FH451567

WASHER

1шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" - 18 N.F. hex. jam

1шт.

30

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - Woodruff

1шт.
