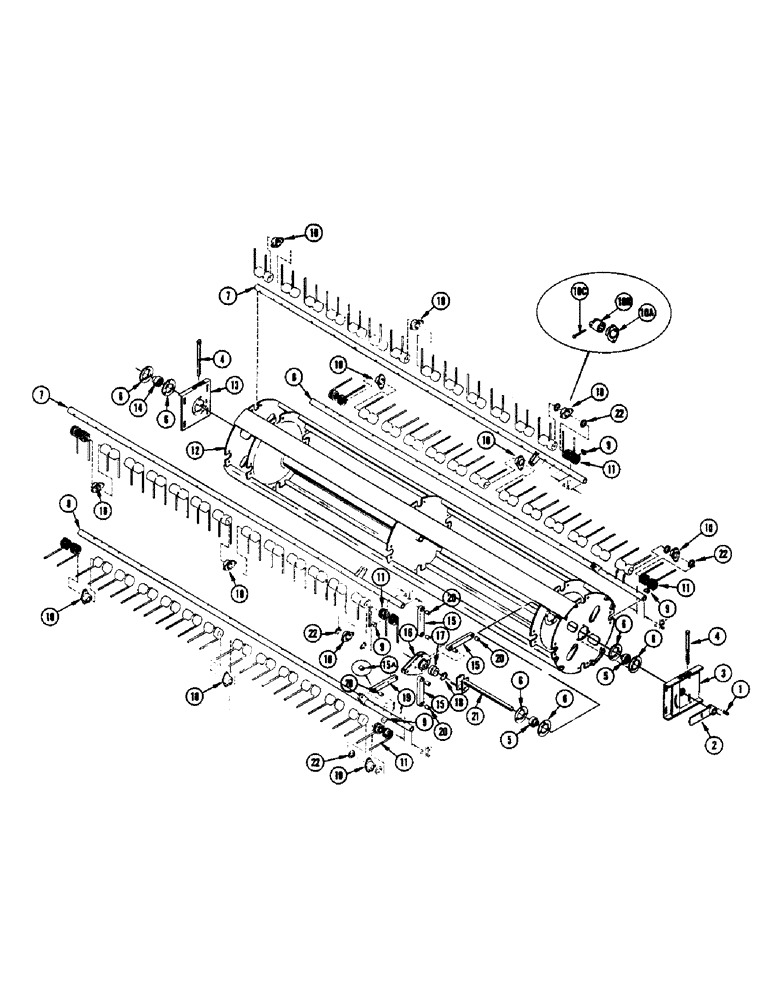

Запчасти Case IH 475 (10) - REEL

1

3312AB

KEY

- timing arm

1шт.

2

FH311720

ARM - timing

1шт.

111-400

BOLT

- 7/16" x 1-1/4" rhd. sq. nk.

1шт.

129-104

NUT,7/16"-14, G5

1шт.

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

195-105

WASHER,7/16"

- flat 7/16"

1шт.

85-58

SET SCREW

SCREW - 5/16" x 1/2" sq. hd. set

1шт.

3

FH452151

BRACKET - mounting L.H. (475) (555 before S/N 8377601)

1шт.

3

F38202

BRACKET - mounting L.H. (555 S/N 837601 & after)

1шт.

111-371

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", Full Thd

4шт.

129-108

NUT,3/4"-10, G5

3/8

4шт.

4

FH703058

BOLT

2шт.

195-104

WASHER,3/8"

- flat 3/8"

2шт.

129-410

WING NUT,3/8"-16

NUT - wing 3/8"

2шт.

5

1443CKA

BALL BEARING

BEARING

2шт.

F62234

COLLAR

1шт.

6

F62225

FLANGE

- bearing

4шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

6шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

7

F37082

TUBE - tine, "A" (Model 475)

2шт.

7

FH452219

TUBE - tine, "A" (Model 555)

2шт.

8

F37081

TUBE - tine, "B" (Model 475)

2шт.

8

FH452235

TUBE - tine, "B" (Model 555)

2шт.

9

FH261024

CLIP

- tine (475-44) (555-56)

1шт.

10

FH452243

BEARING ASSEMBLY - (Before serial No. 8367501)

12шт.

FH712380

BEARING

- nylon (Before serial No. 8367501)

1шт.

10a

F36132

HOUSING

- (Serial No. 8367501 and after)

12шт.

10b

F35401

BEARING

- (Serial No. 8367501 and after)

12шт.

10c

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5 (S/N 8367501 & after)

12шт.

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

24шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

24шт.

11

FH750075

TINE

- (475-44) (555-56)

1шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

56шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

56шт.

12

F37086

TUBE - reel (Model 475)

1шт.

12

FH452425

TUBE - reel (Model 555)

1шт.

13

FH452326

PLATE - mounting R.H.

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

F62225

FLANGE

- beaing

2шт.

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8" x 3/4" rhd. sq. nk.

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

14

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

F62226

COLLAR

1шт.

15

FH452318

ARM

- control (Exhaust before #8367501 then use F36138)

3шт.

15a

FH740704

BUSHING - (Before serial No. 8367501)

2шт.

15

F36138

ARM

- control less bushing

3шт.

16

FH452086

CRANK

1шт.

17

K4334

BEARING

1шт.

F62108

COLLAR

1шт.

18

A31078

SNAP RING,2.062", Int, #206

1шт.

19

FH452300

ARM

- control (Exhaust before #8367501 then use F36137)

1шт.

15a

FH740704

BUSHING - (Before serial No. 8367501)

1шт.

19

F36137

ARM

- control (Less bushing

1шт.

20

FH311910

BUSHING

7шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

9шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

9шт.

21

FH452201

SHAFT - control

1шт.

22

FHO52274

BUSHING

WASHER

8шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.
