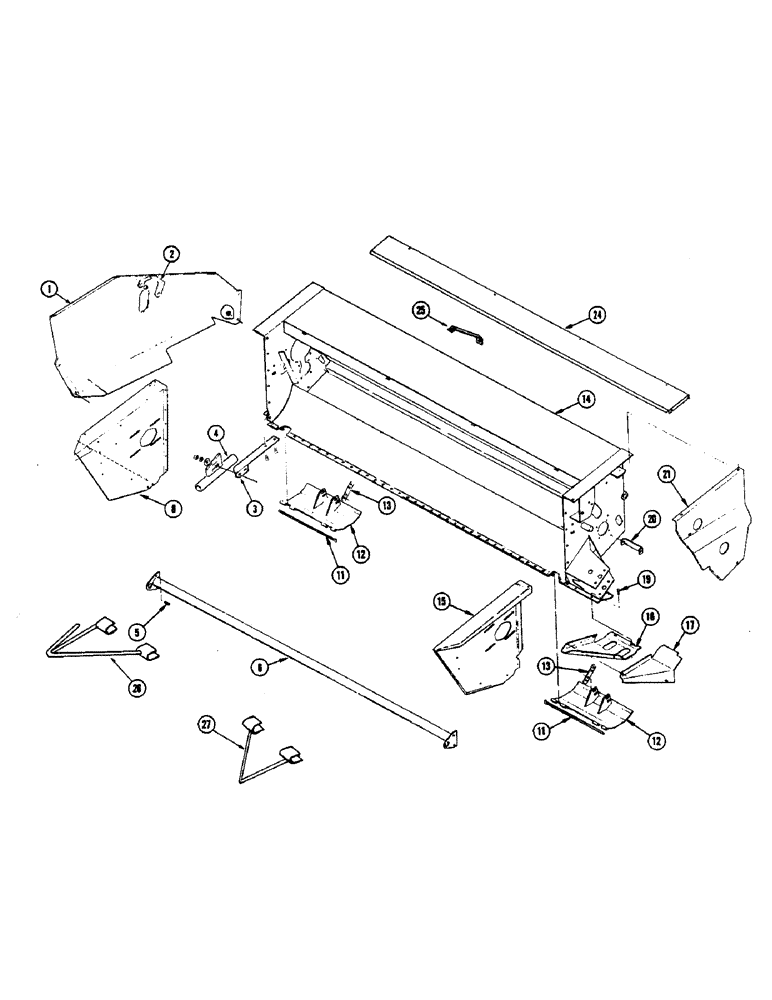

Запчасти Case IH 475 (09A) - HEADER, SKID SHOES AND SHIELD, NUMBER 8377601 AND AFTER
№
Артикул
Название
Примечание
Количество
1
F38153
SHIELD - R.H.
1шт.
2
F38176
BRACKET
1шт.
3
F38156
STRAP
1шт.
111-317
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2
2шт.
11-516
BOLT,Short NK, 5/16"-18 x 1", G2
CARRIAGE, Short NK, 5/16"-18 x 1", G2
2шт.
4
F38161
GUARD
1шт.
5
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
6
F37090
LEAN BAR - (Model 475)
1шт.
6
FH453712
LEAN BAR - (Model 555)
1шт.
8
F38152
PANEL - divider R.H.
1шт.
11
FH377291
PIN
2шт.
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
12
FH453647
SHOE - skid
2шт.
13
FH453670
LINK
- shoe
2шт.
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
14
F38151
HEADER - (Model 475)
1шт.
14
F38199
HEADER - (Model 555)
1шт.
111-317
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2
11шт.
15
FH453878
PANEL - divider L.H. (Model 475)
1шт.
15
F38200
PANEL - divider L.H. (Model 555)
1шт.
16
FH453597
SHOE - divider L.H.
1шт.
111-302
CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2
BOLT - 3/8" x 3/4" rhd. sq. nk.
3шт.
17
FH453795
COVER
1шт.
19
111-400
BOLT
- 7/16" X 1-1/4" rd. hd. sq. nk.
2шт.
20
FH453753
BRACE - drive shield (Model 475)
1шт.
20
F38239
BRACE - drive shield (Model 555)
1шт.
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
1шт.
21
F35024
SHIELD
- drive L.H. (Model 475)
1шт.
21
F38194
SHIELD
- drive R.H. (Model 555)
1шт.
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
24
F37087
SHIELD - (Model 475)
1шт.
24
FH493056
SHIELD - (Model 555)
1шт.
25
F35205
BRACKET - shield
2шт.
26
F36079
DIVIDER - R.H. CROP DIVIDER
1шт.
27
F36078
DIVIDER
- L.H. CROP DIVIDER
1шт.
113-210
BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd
Crop Divider Hex, 3/8"-16 x 3", G5, Full Thd
8шт.
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , Crop Divider 3/8"-16, G5
8шт.
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Crop divider 3/8"
8шт.
Выбрано товаров: 38
