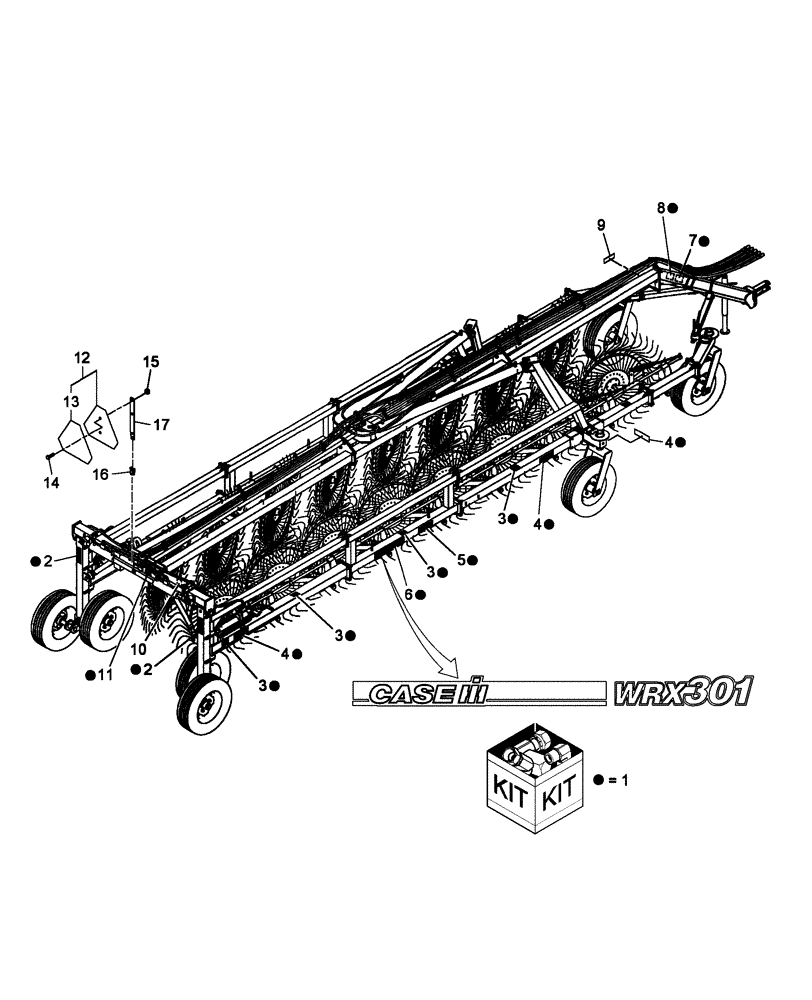

Запчасти Case IH WRX301 (90.105.01[02]) - DECALS, P.I.N. DFC002665 & AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

0C

ORDER COMPONENTS

Kit, Decal; Includes: Sign Guide

1шт.

2

86547781

REFLECTOR,RED

Red, Retroreflective

2шт.

3

86521673

WARNING DECAL

Pinch Area, English

1шт.

3

850610

WARNING DECAL

French

1шт.

3

9801750

WARNING DECAL

Spanish

1шт.

4

86547782

REFLECTOR,YELLOW

Yellow, Retroreflective

1шт.

5

87655417

DECAL

WRX301, LH

1шт.

6

87655418

DECAL

WRX301, RH

1шт.

7

86643790

WARNING DECAL

WARNING

1шт.

8

86624301

WARNING DECAL

1шт.

8

86624302

WARNING DECAL

WARNING, French

1шт.

8

86624303

DECAL

Spanish

1шт.

9

86598785

SELF-TAP SCREW

Rd Hd, Stainless Steel, #4 x 1/4"

2шт.

10

86547710

EMBLEM

KIT SMV

1шт.

11

86547711

DECAL,SMV

1шт.

12

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

13

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

14

86535159

ARM

1шт.

15

847590

BRACKET

1шт.
