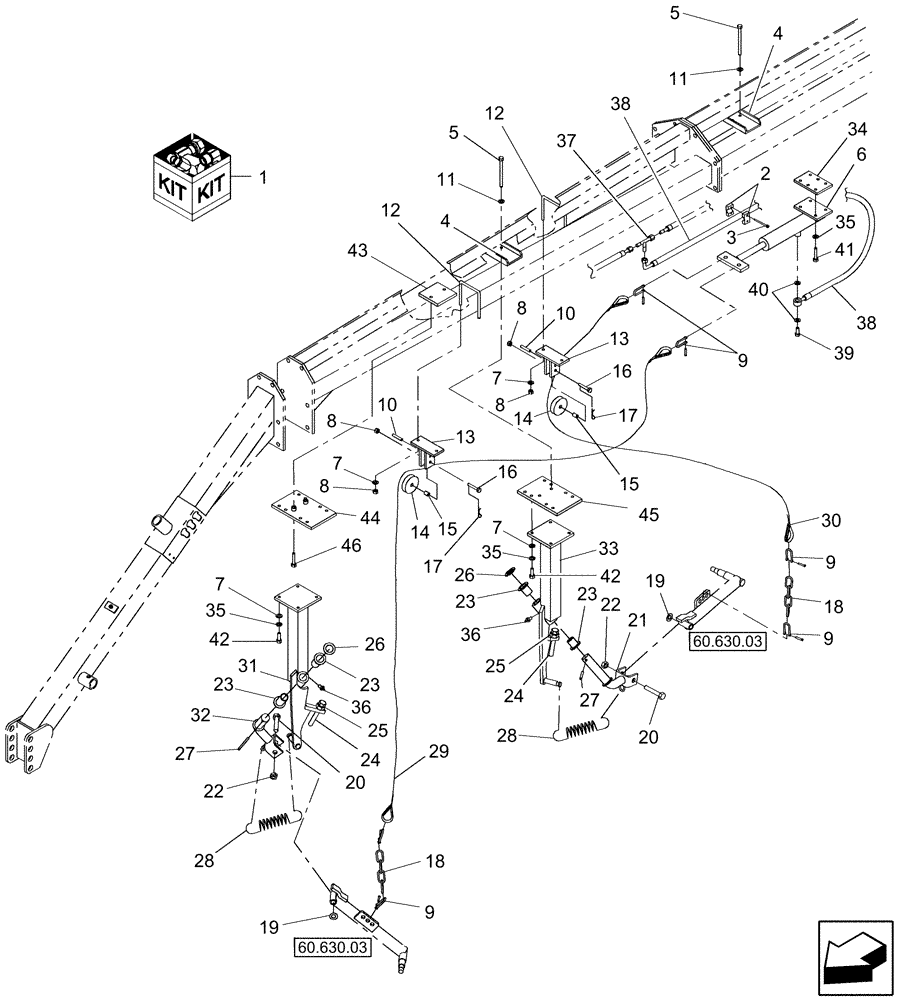

Запчасти Case IH WRX301 (88.100.02) - DIA., CENTER KICKER, HYDRAULIC LIFT KIT (88) - ACCESSORIES

1

716929036

DIA KIT, ADD PROD

Center Kicker Wheel Hydraulic Lift, Includes: Installtion Instructions

1шт.

2

86836232

HOSE CLAMP

M18

4шт.

3

86900875

BOLT

4шт.

For Units With Hydraulic Rear Opening

1шт.

3

86512137

HEX SOC SCREW,M6 x 60mm, Cl 12.9, Full Thd

4шт.

For Units Without Rear Hydraulic Rear Opening

1шт.

4

86836647

PLATE

2шт.

5

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

4шт.

6

86977397

LIFT CYLINDER,25mm Rod, 180mm Stroke

1шт.

Location Of Port May Vary 90° From Position Shown

1шт.

Refer To Component Breakdown, 35.900.04

1шт.

7

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

12шт.

8

832-46412

NUT,M12 x 1.75, Cl 8

6шт.

9

86836008

SHACKLE

6шт.

10

421660

BRACKET

Pin, Spring

2шт.

11

492-11062

BEARING WASHER,5/8"

4шт.

12

86836237

U-BOLT

2шт.

13

86836234

BRACKET

Pulley

2шт.

14

86836238

PULLEY

2шт.

15

86836456

BUSHING

2шт.

16

86977085

SCREW,M12 x 70mm

Drilled

2шт.

17

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

18

86836240

CHAIN

2шт.

19

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

2шт.

20

86900356

SCREW,M18 x 100mm, Cl 8.8

Cap, HH, CL 8.8, M18 x 100

2шт.

21

86836246

BRACKET

1шт.

22

86900355

NUT,M18 x 2.5, Cl 8

2шт.

23

86729995

BUSHING,35.4mm ID x 42.4mm OD x 42.4mm L

4шт.

24

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

25

825-1412

NUT,M12, Cl 8

2шт.

26

86641656

WASHER

2шт.

27

412689

LOCK PIN,8mm OD x 50mm L, Slotted

2шт.

28

86836248

SPRING

2шт.

29

86836249

CABLE

1шт.

30

86836648

CABLE

1шт.

31

86836254

BRACKET

1шт.

32

86836256

BRACKET

1шт.

33

86836258

BRACKET

1шт.

34

86836260

PLATE

1шт.

35

892-1112

LOCK WASHER,M12

12шт.

36

84814929

LUBE NIPPLE

M6 x 1 x 45°

2шт.

37

86979246

TEE

Swivel, Branch, T, 3/8"

1шт.

38

86836261

FLEXIBLE HOSE

1шт.

39

86836131

FITTING

3/8"

1шт.

40

86836130

COPPER WASHER

Sealing

2шт.

41

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

42

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

43

87026262

PLATE

1шт.

44

87026264

PLATE

1шт.

45

87026260

PLATE

1шт.

46

87318072

HEX SOC SCREW,M16 x 110mm, Cl 8.8

2шт.
