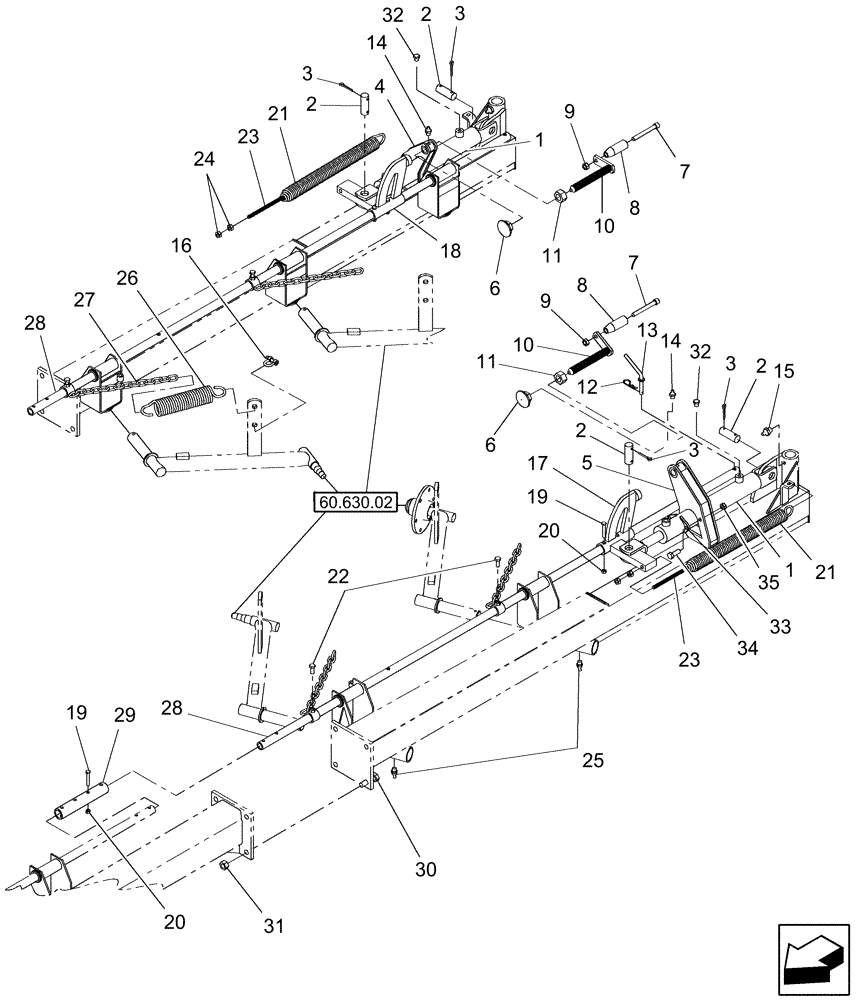

Запчасти Case IH WRX301 (60.630.01) - REAR LIFT LINKAGE, RAKE WHEELS (60) - PRODUCT FEEDING

1

87040622

CYLINDER,Double Acting, 50mm Rod, 312mm Stroke

Lift

2шт.

Refer to Component Breakdown

1шт.

2

86836364

PIN

4шт.

3

733-6340

COTTER PIN,M6.3 x 40

8шт.

4

86729930

SUPPORT

Cylinder, RH

1шт.

After PIN 2177, Support is welded to frame

1шт.

Prior To PIN 2177

1шт.

5

86729932

SUPPORT

Cylinder, RH

1шт.

After PIN 2177, Support is welded to frame

1шт.

Prior To PIN 2177

1шт.

6

86836337

HEAD

2шт.

7

864-5040

HEX SOC SCREW,M5 x 40mm, Cl 8.8

2шт.

8

86729966

KNOB

2шт.

9

9706685

NUT,M12 x 1.75, Cl 8

2шт.

10

86729965

HANDLE

2шт.

11

825-1422

NUT,M22 x 2.5, Cl 8

2шт.

12

216698

COTTER PIN,0.125" OD x 1.75" L

1шт.

13

86977149

PIN

2шт.

14

84814929

LUBE NIPPLE

M6 x 1 x 45°

2шт.

15

62161

LUBE NIPPLE,M8 x 1.25, Str

1шт.

16

86836008

SHACKLE

"D"

1шт.

17

86836003

SUPPORT

LH

1шт.

18

86836001

SUPPORT

RH

1шт.

19

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

20

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

21

86729972

SPRING

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

23

86729998

TIE-ROD

2шт.

24

825-1410

NUT,M10, Cl 8

4шт.

25

84814929

LUBE NIPPLE

M6 x 1 x 45°

1шт.

26

86729989

SPRING

1шт.

27

86729988

CHAIN

& Bushing

1шт.

28

86729987

PIPE

Main

2шт.

29

86729990

BUSHING

1шт.

30

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

1шт.

31

832-46416

NUT,M16 x 2, Cl 8

1шт.

32

87040623

BREATHER

2шт.

33

87041830

COLLAR

2шт.

After PIN 2177

1шт.

34

814-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

4шт.

After PIN 2177

1шт.

35

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

After PIN 2177

1шт.
