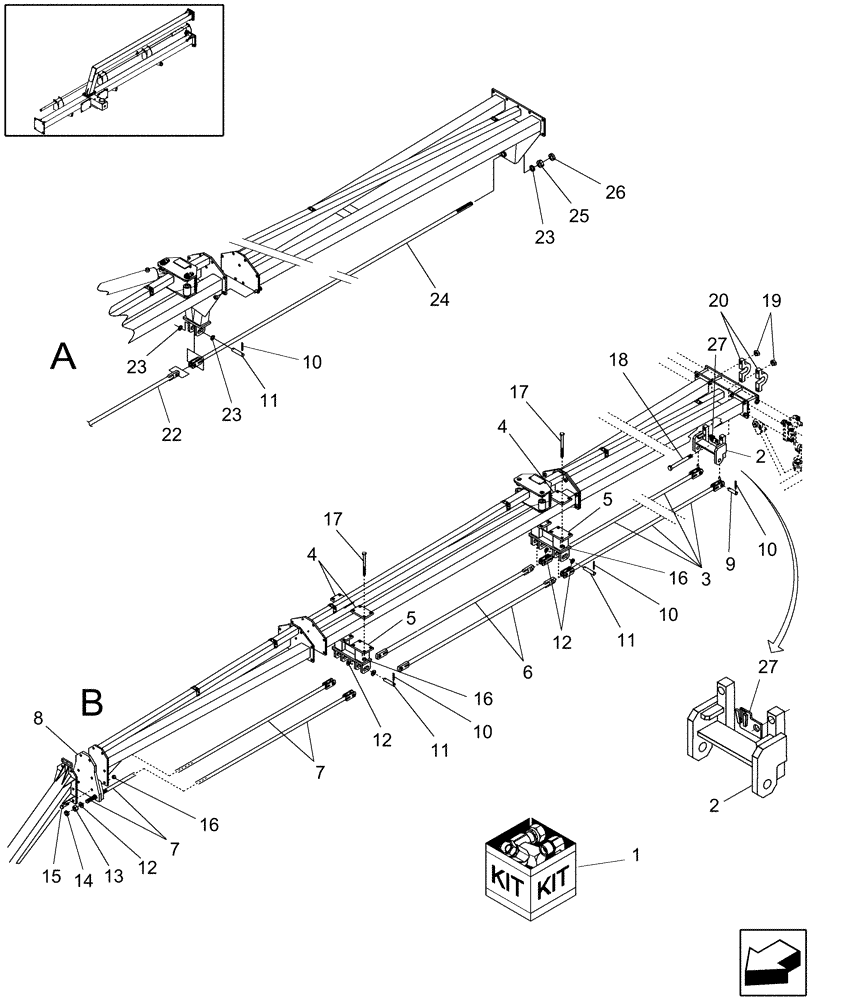

Запчасти Case IH WRX301 (39.100.05[06]) - FRAME REINFORCEMENT KIT, 14 & 16 WHEEL RAKES (39) - FRAMES AND BALLASTING

1

87381647

KIT

Frame Reinforcement; Includes: Ref.s 2 Thru 20

1шт.

Prior To PIN 2440

1шт.

2

87338359

SUPPORT

1шт.

2

84293488

SUPPORT

Includes Ref 27, Start Year: 01-MAY-06

1шт.

3

87339030

TIE-ROD

TIE ROD

2шт.

4

87339033

PLATE

4шт.

5

87339035

SUPPORT

2шт.

6

87382145

TIE-ROD

2шт.

7

87339028

TIE-ROD

TIE ROD

2шт.

8

87339031

SUPPORT

1шт.

9

87339025

PIN

2шт.

10

412689

LOCK PIN,8mm OD x 50mm L, Slotted

12шт.

11

87339026

PIN

4шт.

12

86836005

SHIM

10шт.

13

86509266

NUT,M30, Cl 10

2шт.

14

86900892

THIN NUT

2шт.

15

320246

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd

6шт.

16

86000441

NUT,M16 x 2.0, Cl 8

22шт.

17

371221

BOLT,Hex, M16 x 2 x 160mm, Cl 8.8

16шт.

18

86584034

BOLT,Hex, M24 x 260mm, Cl 10.9

M24 x 260, 10.9

4шт.

19

86536986

NUT,M24 x 3, Cl 10

4шт.

20

87339036

CLAMP

2шт.

22

87382149

TIE-ROD

TIE ROD Front

1шт.

23

86836005

SHIM

3шт.

24

87339028

TIE-ROD

TIE ROD

1шт.

25

86509266

NUT,M30, Cl 10

1шт.

26

86900892

THIN NUT

1шт.

27

87551262

BRACKET

1шт.
