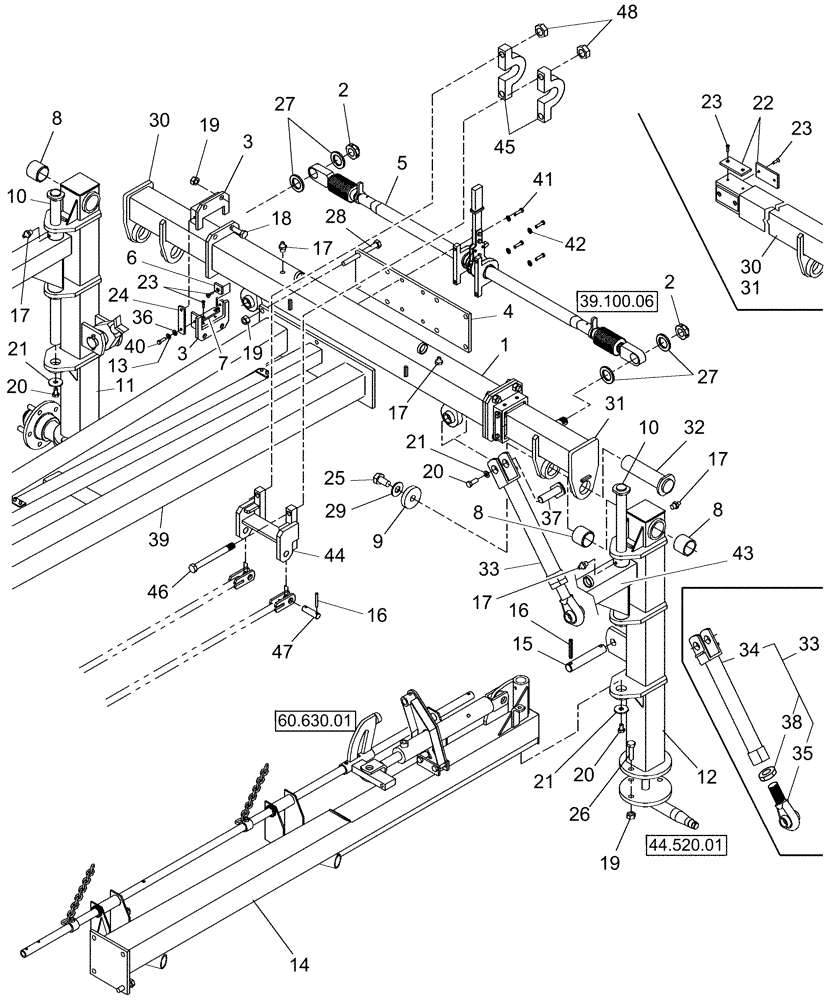

Запчасти Case IH WRX301 (39.100.05[03]) - FRAME, REAR, LH, 14 & 16 WHEEL RAKES (39) - FRAMES AND BALLASTING

1

86729904

FRAME

Outer

1шт.

2

86900392

NUT

Special, CL 8, M30 x 1.5

2шт.

3

86729924

SUPPORT

Sliding

4шт.

4

86729926

PLATE

Drawbar

1шт.

5

0C

ORDER COMPONENTS

Link, Ratchet

1шт.

Refer to Component Breakdown

1шт.

6

86729933

SLIDING PAD

8шт.

7

86729935

SLIDING PAD

4шт.

8

86729986

BUSHING,50.4mm ID x 60mm OD x 50mm L

Nylon

1шт.

9

86836377

WASHER

2шт.

10

86836699

PIN

2шт.

11

86729992

SUPPORT

Rear Wheel, RH

1шт.

12

86729994

SUPPORT

Rear Wheel, LH

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

14

86729900

BAR

Section 2, Wheel, LH

1шт.

15

86836698

PIN

2шт.

16

412689

LOCK PIN,8mm OD x 50mm L, Slotted

4шт.

17

62161

LUBE NIPPLE,M8 x 1.25, Str

1шт.

18

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

1шт.

19

832-46416

NUT,M16 x 2, Cl 8

1шт.

20

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

21

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

1шт.

22

86729959

SLIDING PAD

8шт.

23

14441921

SCREW,Flat Csk Hd, M8 x 1.25 x 16mm, Cl 8.8

32шт.

24

86729938

PLATE

Linking

4шт.

25

86836503

BOLT

Cap, HH, CL 8.8, M22 x 50

2шт.

26

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

6шт.

27

86836005

SHIM

4шт.

28

120251

BOLT,Hex, M16 x 170mm, Cl 8.8

8шт.

29

86509829

LOCK WASHER,24.5mm ID x 40mm OD x 5mm Thk

2шт.

30

86729906

CROSSBAR

Inner, RH

1шт.

31

86729908

CROSSBAR

Inner, LH

1шт.

32

86836380

PIN

2шт.

33

0C

ORDER COMPONENTS

Tie Rod, Complete

2шт.

34

86729962

PIPE

Tie Rod

2шт.

35

86729964

HEAD

Tie Rod

2шт.

36

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

8шт.

37

86836696

PIN

2шт.

38

86900892

THIN NUT

M30

2шт.

39

87382150

DRAWBAR

Rear

1шт.

40

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

41

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

42

492-11031

LOCK WASHER,5/16"

4шт.

43

86729968

REINFORCEMENT

LH

1шт.
