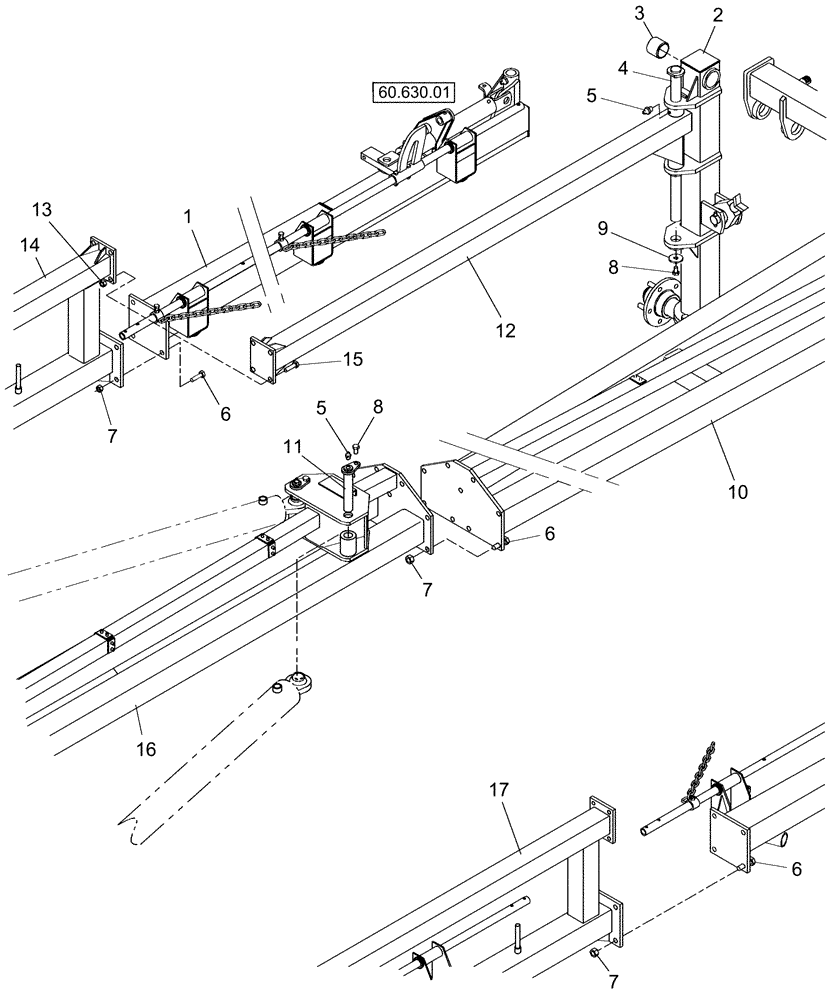

Запчасти Case IH WRX301 (39.100.05[02]) - FRAME, REAR, RH, 14 & 16 WHEEL RAKES (39) - FRAMES AND BALLASTING

1

86729898

BAR

Section 2, Wheel, RH

1шт.

2

86729992

SUPPORT

Rear Wheel, RH

1шт.

3

86729986

BUSHING,50.4mm ID x 60mm OD x 50mm L

Nylon

1шт.

4

86836699

PIN

1шт.

5

62161

LUBE NIPPLE,M8 x 1.25, Str

1шт.

6

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

1шт.

7

832-46416

NUT,M16 x 2, Cl 8

1шт.

8

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

3шт.

9

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

1шт.

10

86729902

DRAWBAR

Rear

1шт.

Prior To PIN 2440

1шт.

10

87382150

DRAWBAR

Rear

1шт.

From PIN 2440

1шт.

11

86836363

PIN

2шт.

12

86729970

REINFORCEMENT

RH

1шт.

13

832-46414

NUT,M14 x 2, Cl 8

1шт.

14

86729912

CROSSBAR

Section 2, Wheel, RH

1шт.

15

814-14050

BOLT,Hex, M14 x 2 x 50mm, Cl 8.8

1шт.

16

86729914

DRAWBAR

1шт.

Prior To PIN 2440

1шт.

16

87382151

DRAWBAR

1шт.

From PIN 2440

1шт.

17

86729910

CROSSBAR

Section 2, Wheel, LH

1шт.

18

87634661

BRACKET

Bracket

1шт.
