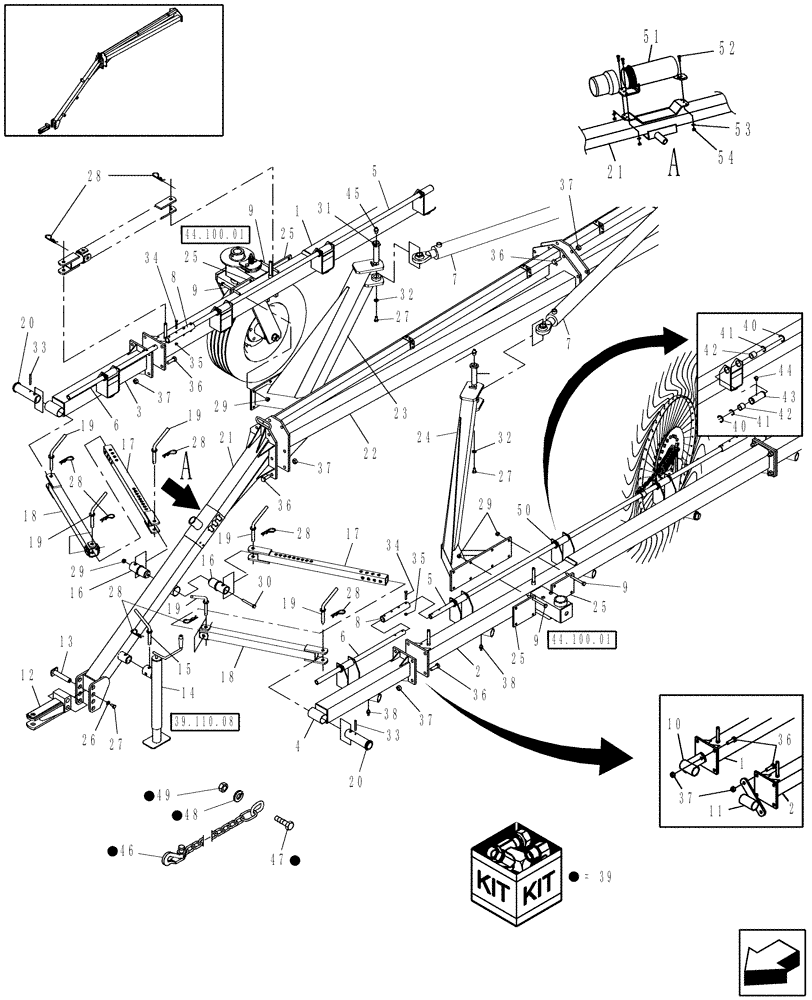

Запчасти Case IH WRX301 (39.100.01) - FRAME, FRONT, 12 WHEEL RAKE (39) - FRAMES AND BALLASTING

1

86836309

SUPPORT TUBE

Section 3, RH Wheel

1шт.

2

86836311

SUPPORT TUBE

Section 3, LH Wheel

1шт.

3

86836313

SECTOR

Section 1, RH Wheel

1шт.

4

86836315

SECTOR

Section 1, LH Wheel

1шт.

5

86836046

PIPE

Center, Main

2шт.

6

86836642

PIPE

Center, Front

2шт.

7

86836165

CYLINDER

Opening

2шт.

Refer to Component Breakdown

1шт.

8

86729990

BUSHING

2шт.

9

814-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

20шт.

10

86836398

ARM

Transport, RH Hitch

1шт.

11

86836400

ARM

Transport, LH Hitch

1шт.

12

86836108

HITCH

1шт.

13

86836401

PIN

25mm OD x 139mm OAL

1шт.

14

84351282

JACK

1шт.

Original Equipment Jack Has NO Serviceable Components

1шт.

15

86836402

PIN

15mm OD x 165mm Lng, 30 deg

1шт.

16

86836109

BUSHING

2шт.

17

86836114

ARM

Inner

2шт.

18

86836116

ARM

Outer

2шт.

19

86836403

PIN,15mm OD

6шт.

20

86836404

BUSHING

2шт.

21

86836633

DRAWBAR

Front

1шт.

22

86836079

DRAWBAR

Center

1шт.

23

86836273

ARM ASSY.

Fixed, RH

1шт.

24

86836275

ARM ASSY.

Fixed, LH

1шт.

25

86836641

PLATE

4шт.

26

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

27

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

18шт.

28

216698

COTTER PIN,0.125" OD x 1.75" L

13шт.

29

832-46412

NUT,M12 x 1.75, Cl 8

23шт.

30

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

31

86836341

PIN

2шт.

32

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

14шт.

33

412071

LOCK PIN,8mm OD x 70mm L, Slotted

2шт.

34

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

20шт.

35

832-46408

NUT,M8 x 1.25, Cl 8

22шт.

36

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

39шт.

37

832-46416

NUT,M16 x 2, Cl 8

57шт.

38

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

12шт.

39

86705789

CHAIN

Safety Tow

1шт.

40

800-1150

SNAP RING,M50, Ext

Ext. 50

24шт.

41

86900388

SNAP RING

Snap Ring, Int. 44

24шт.

42

86836226

BUSHING

Nylon

24шт.

43

86836281

BUSHING

12шт.

44

323713

LUBE NIPPLE,M6 x 1mm

M6 x 90°

14шт.

45

933801R91

LUBE NIPPLE,45 Degree, M8 x 1

M8 x 45°

12шт.

46

850116

CHAIN

Safety Tow

1шт.

47

413-1496

BOLT,Hex, 7/8" - 9 x 6", Gr 5

1шт.

48

492-11088

LOCK WASHER,7/8"

1шт.

49

425-1014

NUT,7/8"-9, G5

1шт.

50

87634661

BRACKET

Bracket

1шт.

51

SML49722

HOLDER

1шт.

52

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

53

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

6шт.

54

353308

NUT,M6 x 1.0, Cl 8

3шт.
