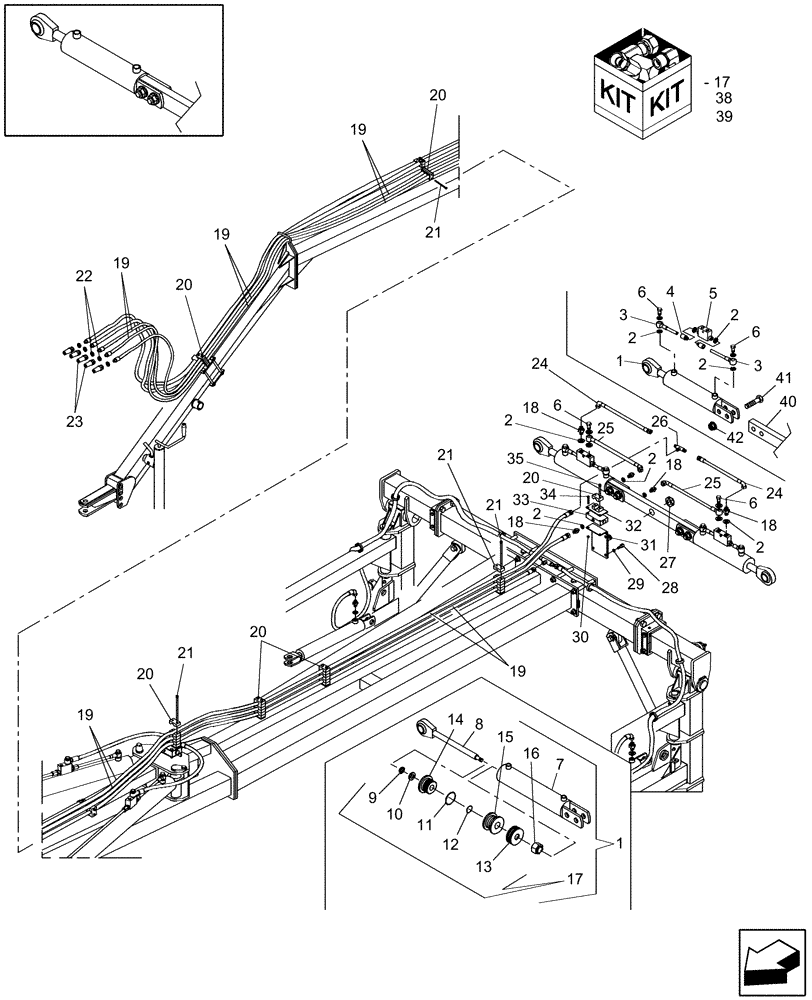

Запчасти Case IH WRX301 (35.900.06) - HYDRAULIC REAR OPENING KIT (35) - HYDRAULIC SYSTEMS

1

86836196

CYLINDER,Double Acting, 30mm Rod, 207mm Stroke

Rear Opening

1шт.

2

86836130

COPPER WASHER

3/8"

21шт.

3

86836198

TUBE,12 mm OD x 53 mm L

4шт.

4

86836139

FITTING

4шт.

5

86836142

LOCK

Valve

2шт.

6

86836131

FITTING

6шт.

7

NSS

NOT SOLD SEPARAT

Barrel, Cylinder

1шт.

8

86836202

ROD

2шт.

9

NSS

NOT SOLD SEPARAT

Gasket

2шт.

10

NSS

NOT SOLD SEPARAT

Gasket

2шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

13

NSS

NOT SOLD SEPARAT

Gasket

2шт.

14

86836207

CYLINDER HEAD

2шт.

15

86836209

PISTON

2шт.

16

86900701

LOCK NUT

CL 8, M20 x 2.5

2шт.

17

86836206

GASKET KIT

1шт.

18

86979257

UNION

3/8"

5шт.

19

86836210

FLEXIBLE HOSE

2шт.

12 Wheel Rake

1шт.

Prior To TY07

1шт.

19

87564580

HOSE

Hose, F 3/8" x M 1/2"-14 NPTF

2шт.

12 Wheel Rake

1шт.

From TY07

1шт.

19

86836211

FLEXIBLE HOSE

2шт.

14 & 16 Wheel Rakes

1шт.

Prior To TY07

1шт.

19

87564581

HOSE

Hose, F 3/8" x M 1/2"-14 NPTF

2шт.

14 & 16 Wheel Rakes

1шт.

From TY07

1шт.

20

86836232

HOSE CLAMP

18mm

26шт.

21

87040653

HEX SOC SCREW,M6 x 95mm, Cl 8.8

Cap, HS, CL 8.8, M6 x 1 x 90

12шт.

22

86836100

COPPER WASHER

1/2"

2шт.

Prior To TY07

1шт.

23

86979410

COUPLING

1/2"

2шт.

Prior To TY07

1шт.

23

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

From TY07

1шт.

24

86836678

HOSE

2шт.

25

86836679

FLEXIBLE HOSE

2шт.

26

86979240

FITTING

Male, T, 3/8"

1шт.

27

86900392

NUT

Special, M30 x 1.5

1шт.

28

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

29

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

4шт.

30

832-46406

NUT,M6 x 1, Cl 8

2шт.

31

86836219

SUPPORT

Cylinder

1шт.

32

86836194

SUPPORT

Hose

1шт.

33

86836181

FLOW DIVIDER

Service with Ref. 43

1шт.

34

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

35

84432127

HEX SOC SCREW,M6 x 25mm, Cl 12.9

2шт.

38

716934036

DIA KIT, ADD PROD

Kit, Hydraulic, Rear Opening

1шт.

12 Wheel Rake

1шт.

39

716934046

DIA KIT, ADD PROD

Kit, Hydraulic, Rear Opening

1шт.

14 & 16 Wheel Rakes

1шт.

40

86979946

ROD

Connecting

1шт.

41

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

4шт.

42

832-46416

NUT,M16 x 2, Cl 8

4шт.

43

87699509

CARTRIDGE

Services Ref. 33

1шт.

Not Shown

1шт.
