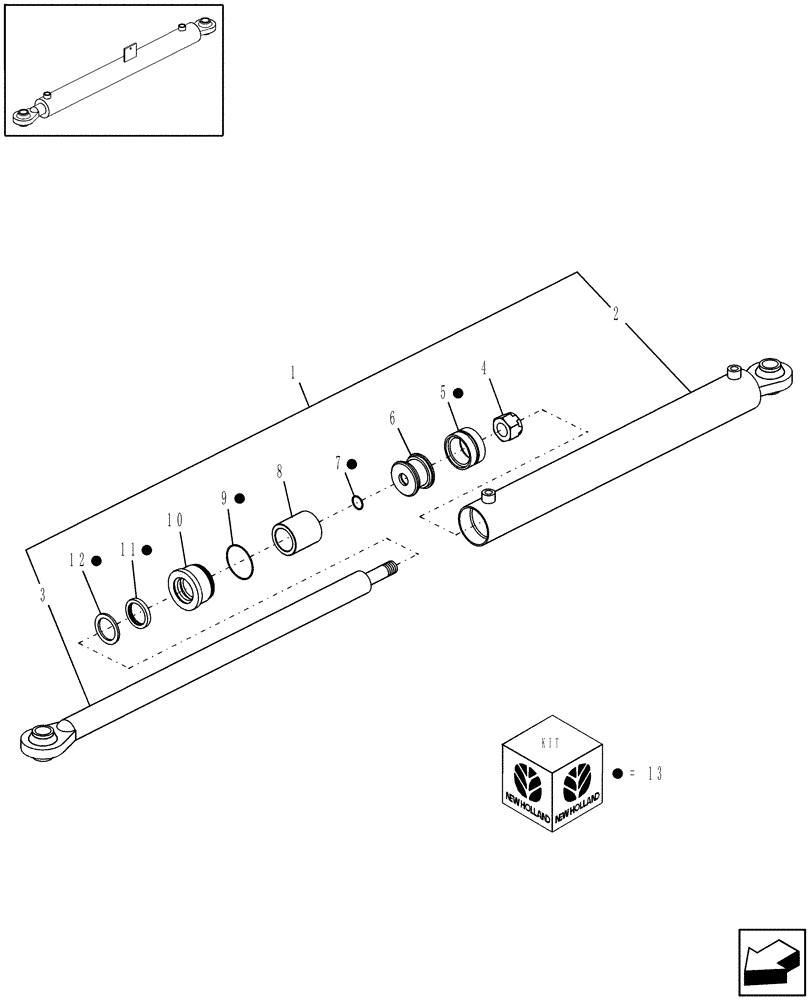

Запчасти Case IH WRX301 (35.900.02[02]) - OPENING CYLINDER COMPONENTS, 14 & 16 WHEEL RAKES (35) - HYDRAULIC SYSTEMS

1

86836152

CYLINDER ASSY.

See Also: Fig. 35.900.01

2шт.

14 & 16 Wheel Rakes

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

86836164

ROD

1шт.

4

86528539

LOCK NUT

CL 8, M30

1шт.

5

NSS

NOT SOLD SEPARAT

Gasket

1шт.

6

86836170

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, 26.58 ID x 3.53 Thk

1шт.

8

86836169

SPACER

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 73.03 ID x 3.53 Thk

1шт.

10

86836167

CYLINDER HEAD

1шт.

11

NSS

NOT SOLD SEPARAT

Gasket

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper

1шт.

13

86836176

GASKET KIT

1шт.
