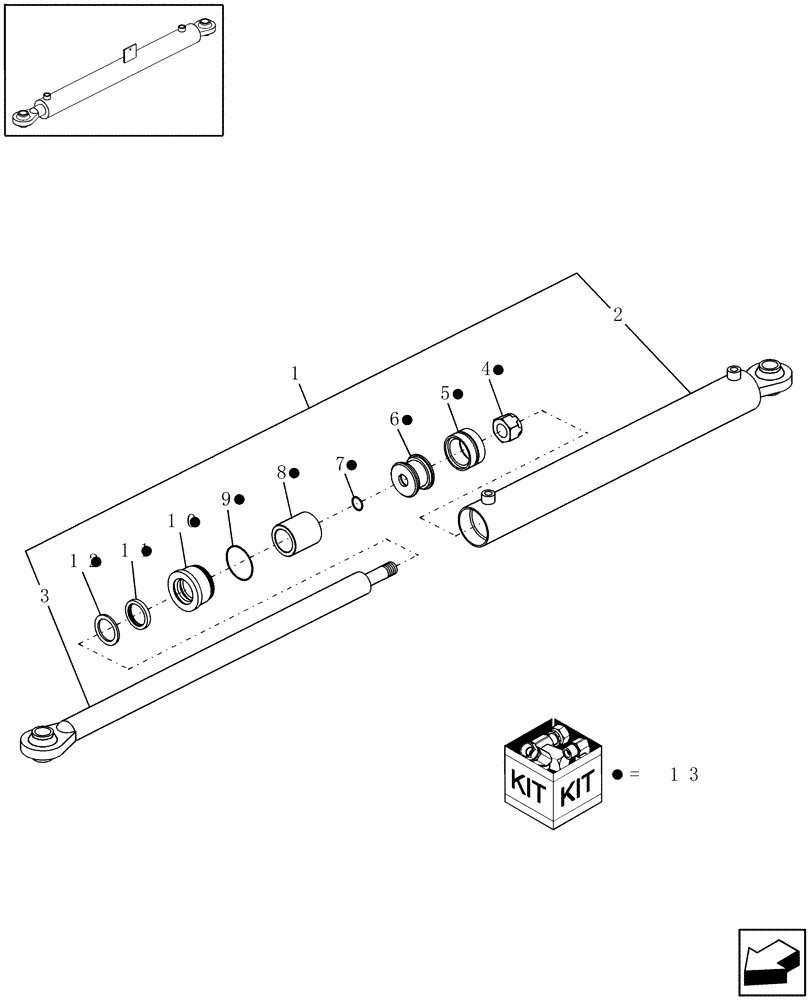

Запчасти Case IH WRX301 (35.900.02[01]) - OPENING CYLINDER COMPONENTS, 12 WHEEL RAKE (35) - HYDRAULIC SYSTEMS

1

86836165

CYLINDER

No Longer Avail, Order Complete Cyl. Fig. 35.900.01

2шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

86836664

PISTON ROD

1шт.

4

86836370

LOCK NUT

Lock, CL 8, M27

1шт.

5

NSS

NOT SOLD SEPARAT

Gasket

1шт.

6

86836436

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, 23.47 ID x 2.62 Thk

1шт.

8

86836670

SPACER

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 63.50 ID x 3.53 Thk

1шт.

10

86836667

CYLINDER HEAD

1шт.

11

NSS

NOT SOLD SEPARAT

Gasket

1шт.

12

NSS

NOT SOLD SEPARAT

Wiper

1шт.

13

86836653

GASKET KIT

1шт.
