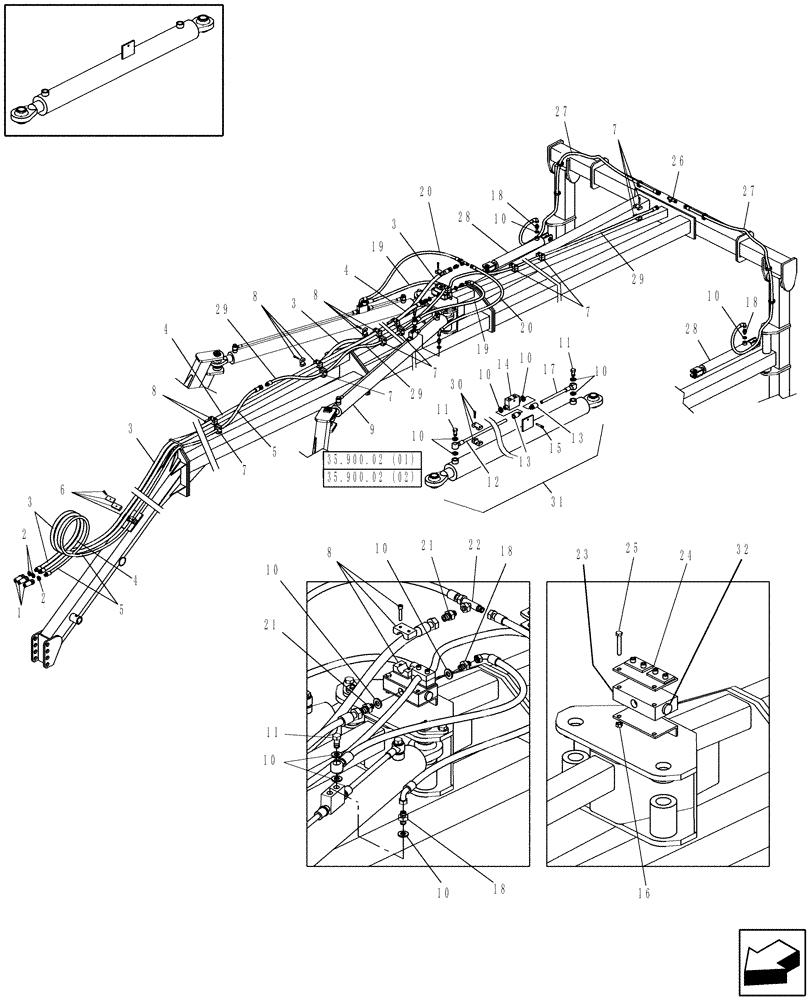

Запчасти Case IH WRX301 (35.900.01) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

86979410

COUPLING

1/2"

3шт.

Prior To TY07

1шт.

1

9801618

QUICK MALE COUPLING,1/2" - 14

3шт.

From TY07

1шт.

2

86836100

COPPER WASHER

1/2"

3шт.

Prior To TY07

1шт.

3

86836650

FLEXIBLE HOSE

1шт.

12 Wheel Rake

1шт.

Prior To TY07

1шт.

3

87564574

HOSE

Hose; F 1/2" x M 1/2"-14 NPTF

1шт.

12 Wheel Rake

1шт.

From TY07

1шт.

3

86643974

HOSE,7900.00 mm, SAE 100R2 AT

1шт.

14 & 16 Wheel Rakes

1шт.

Prior To TY07

1шт.

3

87564577

HOSE

Hose; F 1/2" x M 1/2"-14 NPTF

1шт.

14 & 16 Wheel Rakes

1шт.

From TY07

1шт.

4

86836649

FLEXIBLE HOSE

1шт.

12 Wheel Rake

1шт.

Prior To TY07

1шт.

4

87564573

HOSE

Hose; F 1/2" x M 1/2"-14 NPTF

1шт.

12 Wheel Rake

1шт.

From TY07

1шт.

4

86631388

HOSE,7750.00 mm, SAE 100R2 AT

1шт.

14 & 16 Wheel Rakes

1шт.

Prior To TY07

1шт.

4

87564576

HOSE

Hose; F 1/2" x M 1/2"-14 NPTF

1шт.

14 & 16 Wheel Rakes

1шт.

From TY07

1шт.

5

86836128

HOSE

1шт.

Prior To TY07

1шт.

5

87564575

HOSE

Hose; F 1/2" x M 1/2"-14 NPTF

1шт.

From TY07

1шт.

6

86836129

HOSE CLAMP

Double, 22mm

1шт.

7

86836110

HOSE CLAMP

18mm

1шт.

8

86836111

HOSE CLAMP

22mm

1шт.

10

86836130

COPPER WASHER

3/8"

23шт.

11

86836131

FITTING

3/8"

6шт.

12

86836639

TUBE,12 mm OD x 950 mm L

2шт.

12 Wheel Rake

1шт.

12

86836138

TUBE,12 mm OD x 1500 mm L

2шт.

14 & 16 Wheel Rakes

1шт.

13

86836139

FITTING

4шт.

14

86836142

LOCK

Valve, 3/8"

2шт.

15

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

16

832-46406

NUT,M6 x 1, Cl 8

5шт.

17

86836144

TUBE,12 mm OD x 200 mm L

2шт.

18

86979257

UNION

Nipple, 3/8"

6шт.

19

86836145

HOSE,9.53mm ID x 720mm L, SAE 100R2

Hose

2шт.

20

86836146

HOSE,9.53mm ID x 750mm L, SAE 100R2

2шт.

21

86979253

UNION

Nipple, 3/8" x 1/2"

2шт.

22

86979247

FITTING

Swivel, 3/8"

1шт.

23

86836181

FLOW DIVIDER

Service with Ref. 32

1шт.

24

86836147

PLATE

1шт.

25

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

26

86979240

FITTING

1шт.

27

86836149

HOSE,9.53mm ID x 750mm L, SAE 100R2

2шт.

28

87040622

CYLINDER,Double Acting, 50mm Rod, 312mm Stroke

Lift

2шт.

Refer to Component Breakdown, Fig. 35.900.03 (01)

1шт.

29

86836654

FLEXIBLE HOSE

1шт.

12 Wheel Rake

1шт.

29

86643975

HOSE,9.52 mm ID x 6000.00 mm, SAE 100R2 AT

1шт.

14 & 16 Wheel Rakes

1шт.

30

86979388

HOSE CLAMP

12mm

2шт.

31

87344222

HYDRAULIC CYLINDER,Double Acting, 45mm Rod, 1160mm Stroke

Opening

2шт.

12 Wheel Rake

1шт.

31

87342503

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 1600mm Stroke

Opening

2шт.

14 & 16 Wheel Rakes

1шт.

32

87699509

CARTRIDGE

Services Ref. 23

1шт.
