Запчасти Case IH WRX201 (90.105.01[01]) - DECALS, P.I.N. DFC001360 & PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

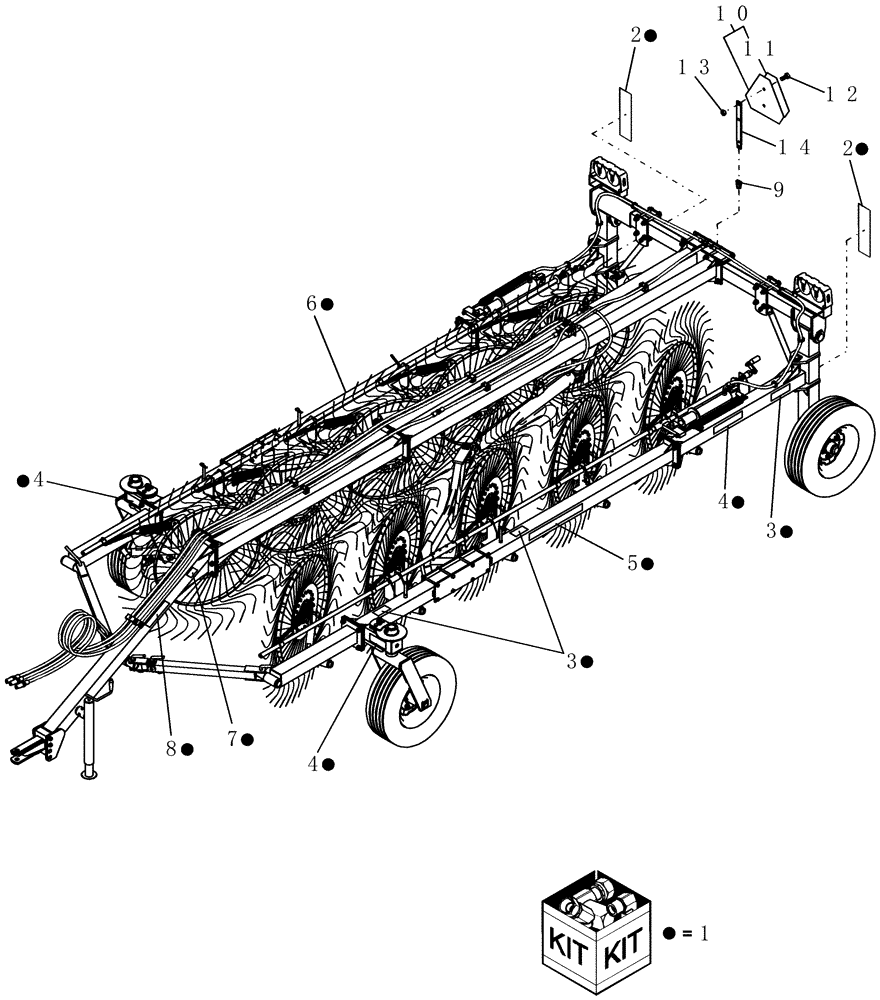

Схема запчастей Case IH WRX201 - (90.105.01[01]) - DECALS, P.I.N. DFC001360 & PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
14
3
11
13
9
3
6
7
2
5
4
4
1
8
12
10

Артикул

Название

Примечание

Количество

1

87018988

DECAL

Kit

1шт.

2

86547781

REFLECTOR,RED

Red, Retroreflective

2шт.

3

86521673

WARNING DECAL

Pinch Area, English

6шт.

3

850610

WARNING DECAL

French

6шт.

3

9801750

WARNING DECAL

Spanish

6шт.

4

86547782

REFLECTOR,YELLOW

Yellow, Retroreflective

6шт.

5

87022647

DECAL

WRX201, LH

1шт.

6

87022649

DECAL

WRX201, RH

1шт.

7

86624301

WARNING DECAL

WARNING

1шт.

7

86624302

WARNING DECAL

WARNING, French

1шт.

7

86624303

DECAL

WARNING, Spanish

1шт.

8

86643790

WARNING DECAL

WARNING

1шт.

9

847590

BRACKET

1шт.

10

86547710

EMBLEM

KIT SMV

1шт.

11

86547711

DECAL,SMV

1шт.

12

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

13

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

14

86535159

ARM

1шт.

Выбрано товаров: 18
